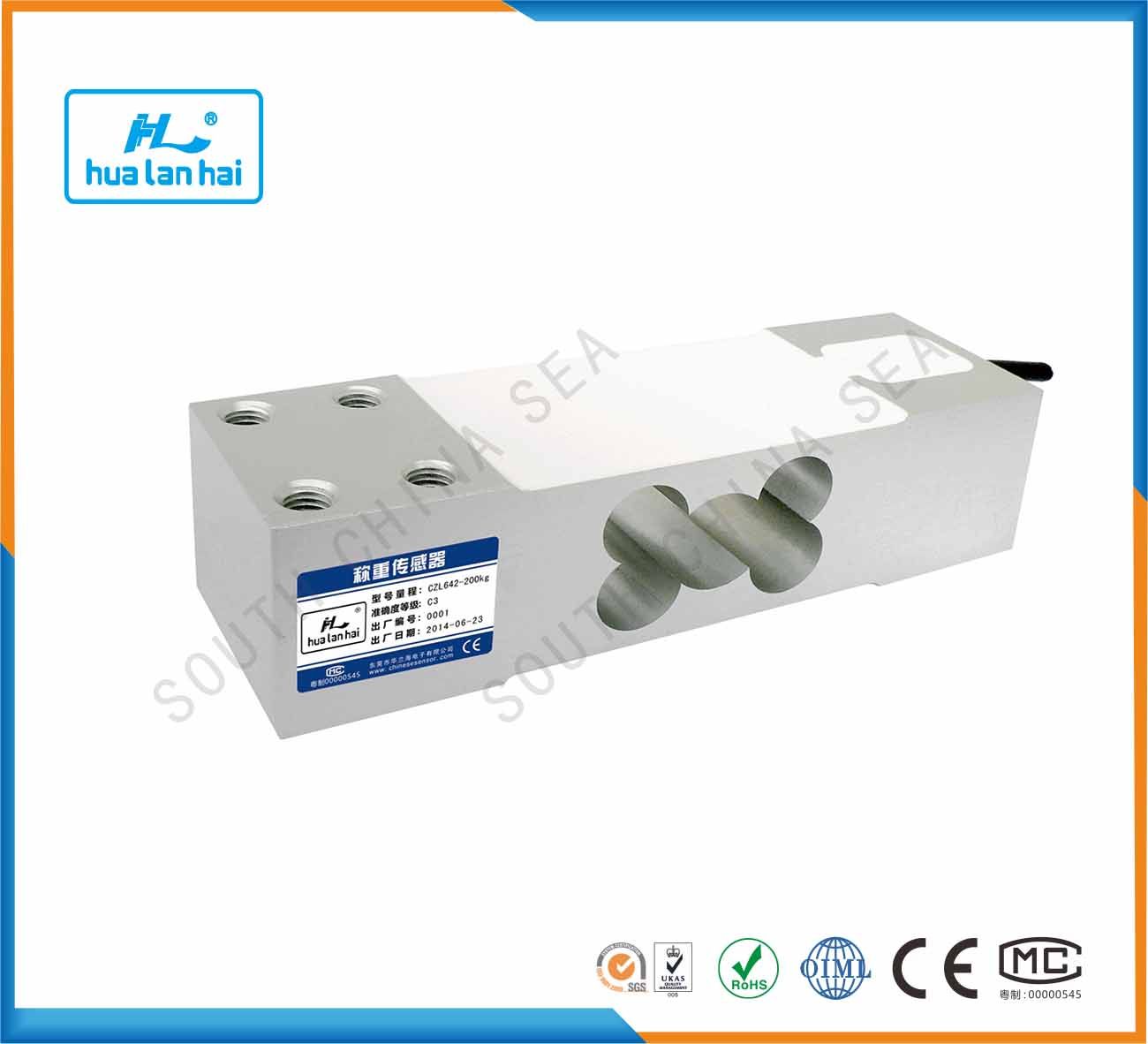

Single Point Load Cell CZL642

Name: Single Point Load Cell CZL642
Brand: all-electronics-online.com
SKU: 716287325
Availability: InStock
Rating: 4.6 (29 reviews)

Price:	US $ 7-9/Piece
Trade Terms:	FOB,EXW
Min Order:	10/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CZL642
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pattern:	Single Point Type

Product Description

Capacity(kg): 100,150,200,250,300,350,500

Main features: The product is made of alloy aluminum. It is hermetically sealed with glue to IP65, surface anodized and anti-corrosion, integral structure and easy installation. The product is suit for electronic top scale, floor scale and other weighing equipment.

Parameters
Precision : C2		Temp. effect on span(%F.S/10 °C): ±0.02
Comprehensive error(%F.S) : ±0.02		Temp. effect on zero(%F.S/10 °C) : ±0.03
Rated output(mv/v) : 2.0±0.1		Compensated temp. range( °C ) : -10~+40
Creep(%F.S/30min) : ±0.02		Use temp. range( °C ) : -20~+60
Zero balance(%F.S) : ±1.0		Excitation voltage(V) : 9 ~12(DC)
Input resistance(Ω) : 405±10		Safe overload (%F.S) : 120
Output resistance(Ω) : 350±3		Ultimate overload (%F.S) : 150
Insulation resistance(MΩ) : ≥5000(100VDC)		Defend grade : IP65

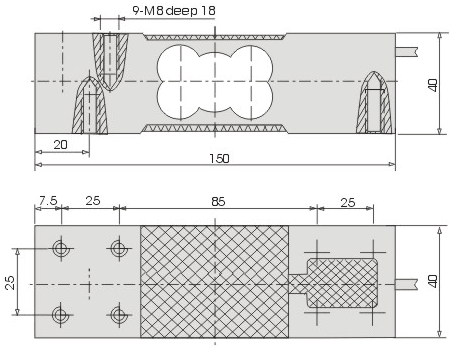

Installation size (mm):

Wiring schematic diagram:

Red: Input ( + ) White: Output ( - )
Black: Input ( - ) Green: Output ( + )

Notes:It used 4-core shielded cable(φ5×3000mm)

Load instruction:

Guangdong South China Sea Electronic Measuring Technology Co., Ltd. (SCS)is located at Dongguan City, Guangdong Province, Where is the manufacture centre of China. Established in 1992, it specializes in developing and manufacturing advanced load cells, force sensor, Torque sensor, axle weigher, wheel weigher, pressure transducer based on strain-gages. We also manufacture custom designed load cells and weighing system whatever our customers can dream up. Some of our products have "OIML" and European approved "CE" mark. Hope we will establish a long term business-ship with you.
