Single Point Parallel Beam Load Cells for Electronic Platform Scale

Name: Single Point Parallel Beam Load Cells for Electronic Platform Scale
Brand: all-electronics-online.com
SKU: 680904231
Availability: InStock
Rating: 4.8 (88 reviews)

Price:	US $ 6/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	20/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	QL-11
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	130mm106mm15mm
Accuracy:	C3
Capacity:	3kg to 120kg
Application:	Platform Scales
Pattern:	Double-Bore Parallel Beam Load Cell

Product Description

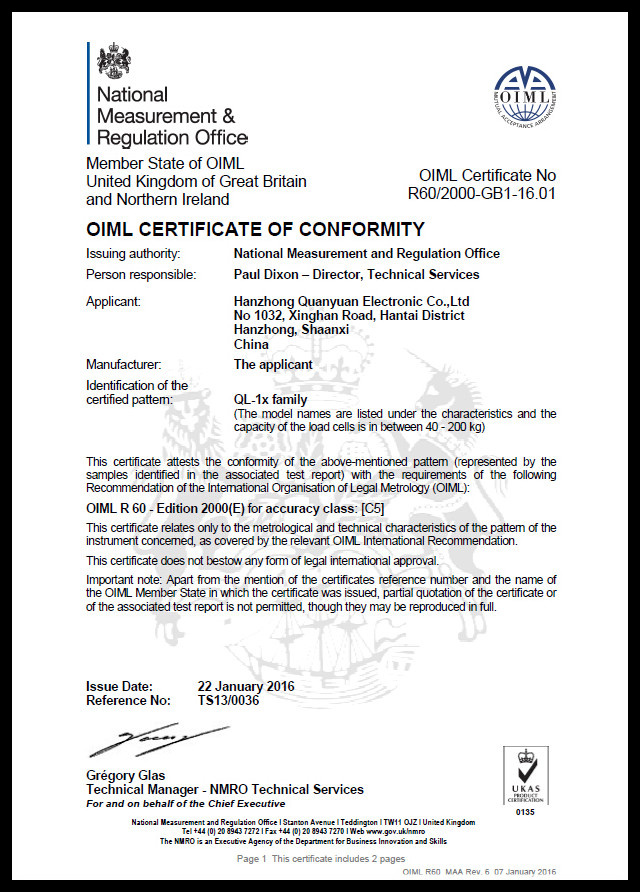

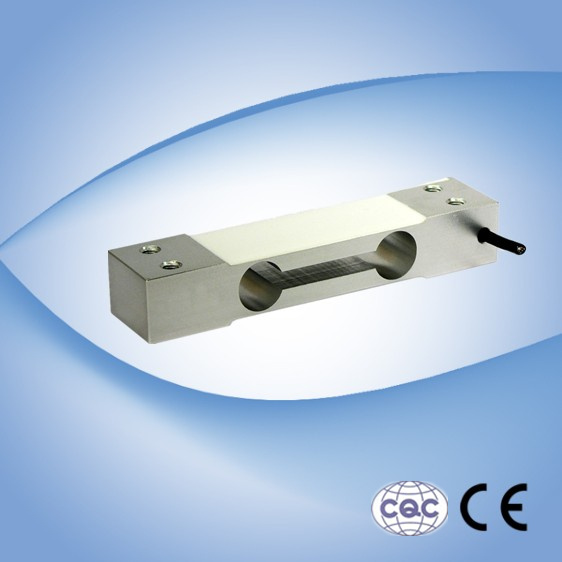

Single Point Parallel Beam Load Cells for Electronic Platform Scale OIML Certificate

QL-11 load cells are available in the capacities from 3kg to 120kg.
Alloy aluminum construction with parallel beam type.
Silicon adhesive sealed, surface anodized and anti-corrosion.
Integral structure and easy installation.
Suitable for electronic counting scales, platform scales,electronic balance and other electronic weighing devices.

Electrical connection and Dimensions:

Features:

Capacity :3kg to 120kg
Defend grade: IP65 H
igh accuracy. Aluminum parallel beam
Max. platform size:250x350mm
Integral structure,reliable performance,and easy installation.

Technical Specifications

Specifications:
capacity	kg	3,5,10,15,20,30,35,40,50
safe overload	%FS	120
ultimate overload	%FS	150
rated output	mV/V	2.0 ± 0.2
excitation voltage	Vdc	9~ 12
combined error	%FS	± 0.03
zero unbalance	%FS	± 1.5
non-linearity	%FS	± 0.02
hysteresis	%FS	± 0.02
repeatability	%FS	± 0.01
creep	%FS/30min	± 0.02
input resistance	Ω	406 ± 10
output resistance	Ω	350 ± 3
insulation resistance	M Ω	≥ 5000 @ 50 Vdc
operating temperature range	°C	-20 ~ +60
compensated temperature range	°C	-10 ~ +40
temperature coefficient of SPAN	%FS/10°C	± 0.02
temperature coefficient of ZERO	%FS/10°C	± 0.03

Electrical connection:

Excitation+ red Excitation- black Signal+ green Signal- white
Four-core shielded cable with polyethylene.
Cable diameter:4mm
Cable length:0.45 m

The cable length could be chose by customer's application.

Ordering code:model-range- rated output-accuracy-defend grade- the length of cable

Example:QL-11-30kg-2.0mV/V-0.02%FS-IP65-0.45m
