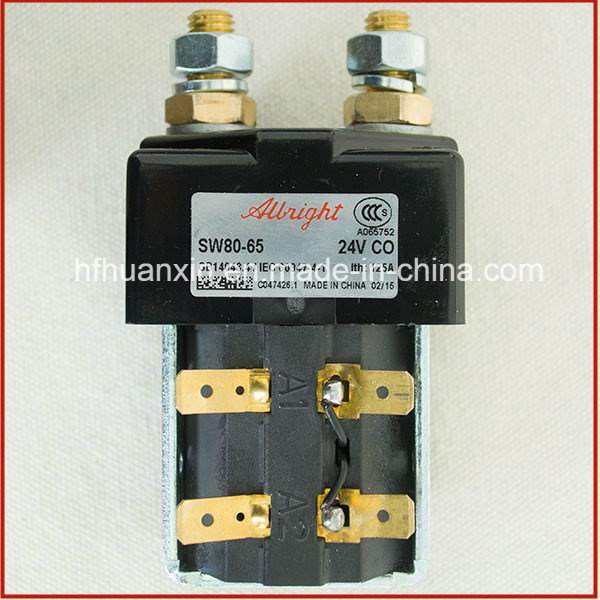

Single Pole Single Throw Normally Open Albright Electric Contactor Sw80-65 125A

Product Description

Specifications:

• Manufacturer: ALBRIGHT (made in China)
• Model: SW80-65
• Contactor Type: Single Pole Single Throw, SPST
• Main Circuit Current Rating: 125A
• Main Circuit Voltage Rating: 24V DC
• Weight: about 0.35kg

Notice: SW80-65 is a Single Pole Single Throw contactor, wildly applied in electric vehicles' (typical application: pallet truck & stacker) controlling system.

Click to download the Albright DC Contactor Model List (PDF format).


Overview

The SW80 has been designed for direct current loads, including motors as used on electric vehicles such as industrial trucks, and telecom and power distribution applications. Developed for both interrupted and uninterrupted loads, the SW80 is suitable for switching Resistive, Capacitive and Inductive loads.

• Interrupted current: opening and closing on load with frequent switching (results in increased contact resistance)
• Uninterrupted current: no or infrequent load switching requirements (maintains a lower contact resistance)

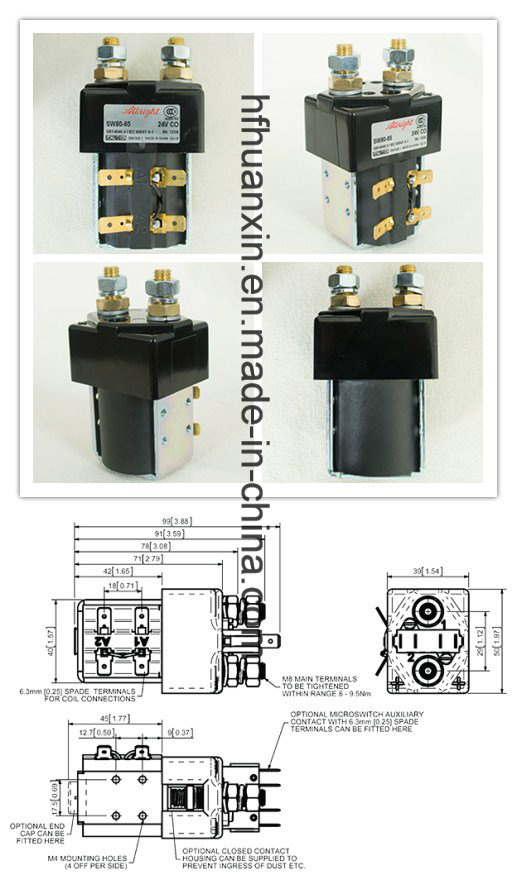

The SW80 features single pole double breaking main contacts with silver alloy tips, which are weld resistant, hard wearing and have excellent conductivity. The SW80 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via M4 tapped holes or mounting brackets, either supplied fitted, or as separate items. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards. If the requirement is for downwards orientation we can adjust the contactor to compensate for this.
