Single Pump Control Panel of K931

Name: Single Pump Control Panel of K931
Brand: all-electronics-online.com
SKU: 682911112
Availability: InStock
Rating: 4.8 (102 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR
Min Order:	50/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	K931
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	CE

Product Description

Applicaion:
Protection and control of single pump, three phase

Main features:

Built in function switch:
*Applied for water supply by liquid level control or pressure control or pressure control
*Applied for drainage by liquid level control
*Computer main board and module for industrial & civil pump
*Auto manual switch Push botton calibration
*Pump stalled protection Transient surge protection
*Over Voltage protection Under voltage protection
*Open phase protection Over current protection
*Prompt for uncompleted parameter calibration
*Dry running protection without installing float switch or liquid probe in the well
*Pump accumulative running time display
*Pump last five fault record displaying
*RS485 communication interface

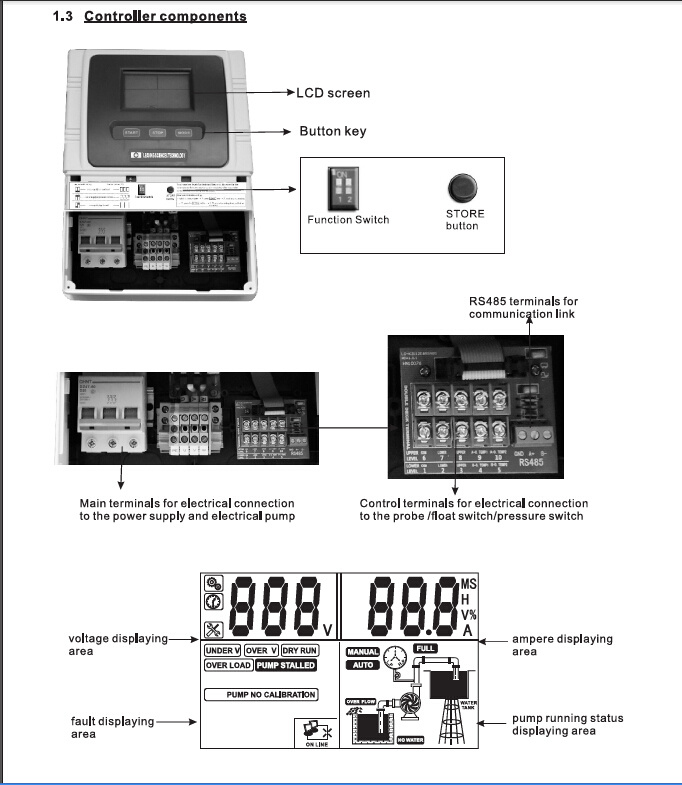

*LCD displays pump running information
*Rapid cycle protection
*Pump shaft rust protection
*Pump mechanical seal leakage protection
*Pump motor winding over temperature protection
*Three phase unbalance protection
*Phase reversal protection
Main Specifications:

Rated input voltage: AC 380V / Three phase
Rated frequence: 50Hz / 60Hz
Rated output power of pump motor:

K931: 0.75-4KW(1hp-5.5hp)
5.5-11kw(7.5hp-15hp)
15KW(20hp)

Hunan Leading Science & Technology Development Co., Ltd is the professional manufacturer of intelligent pump control system applied for monitoring and protecting of pumps in home and industry use;

Leading Science & Technology has always been a leader in the production, research & development of intelligent pump control system and relative pump control products. Million of our prime products have been sold on the market for stable quality and reasonable price.

Leading Science & Technology has established stable relations with many pump producers and distributors from China and overseas.

Till now, Leading Science & Technology we have passed CE, ISO9001: 2008 certificate.
