Single Shear Beam Load Cell for Floor Scale

Name: Single Shear Beam Load Cell for Floor Scale
Brand: all-electronics-online.com
SKU: 777729965
Availability: InStock
Rating: 4.7 (78 reviews)

Price:	US $ 36-66/Piece
Trade Terms:	FOB,CIF
Min Order:	4/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QH-21 Load cell
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity:	500kg to 5000kg
Accuracy:	0.03%Fs
Signal Output:	3.0 Mv/V
Recommended Excitation:	9~12VDC
Application:	Platform Scale, Truck Scale, Floor Scale
Pattern:	Single Shear Beam Load Cell
Out-Wire:	4 Wires
Material:	Alloy Steel & Stainless Steel
IP Rating:	IP66

Product Description

Product Introduction:

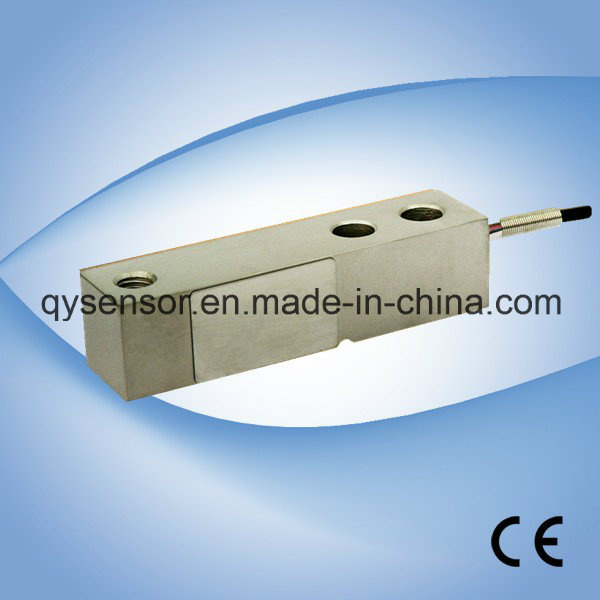

QH-21 load cells are available in the capacities from 0.5t to 5t.
Alloy steel & stainless steel construction with single shear beam type.
Silicon adhesive sealed inside, waterproof, anti-corrosion and suitable for all kinds of environment.
Integral structure and easy installation.
Suitable for electronic platform scale, electronic railroad track scale, floor scale and other electronic weighing devices.

Features:

Capacity: 0.5t to 5t
Defend grade: IP66
High accuracy.
Alloy steel & stainless steel single shear beam
Low profile and nice exterior.

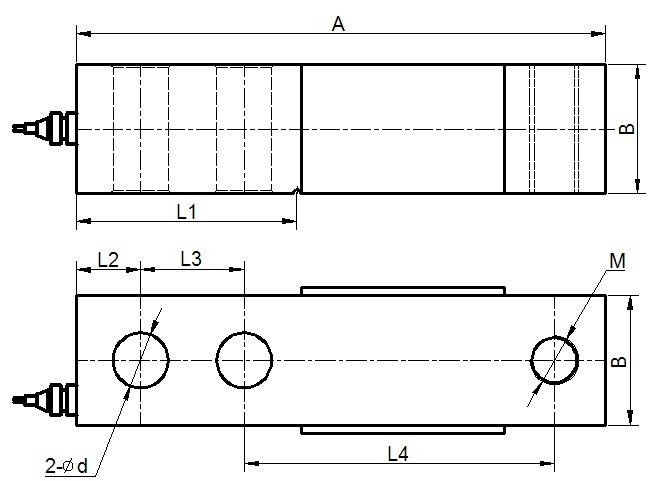

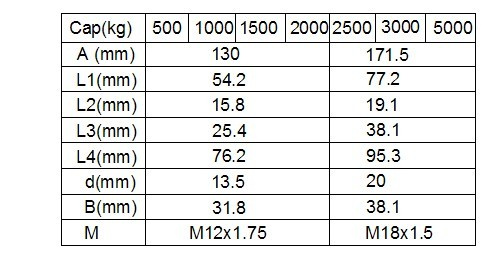

Electrical connection and Dimensions: (dimension unit: mm)

Technical Specifications:

Specifications:
Capacity	T	0.5, 1, 1.5, 2, 2.5, 3, 5
Safe overload	%FS	150
Ultimate overload	%FS	200
Rated output	MV/V	3.0 ± 0.003
Excitation voltage	VDC	9 ~ 12
Combined error	%FS	± 0.02 & ±0.03
Zero unbalance	%FS	± 1
Non-linearity	%FS	± 0.02
Hysteresis	%FS	± 0.02
Repeatability	%FS	± 0.02
Creep	%FS/30min	± 0.02
Input resistance	Ω	350 ± 5
Output resistance	Ω	350 ± 3
Insulation resistance	M Ω	≥ 5000 @ 50 VDC
Operating temperature range	ºC	-20 ~ +55
Compensated temperature range	ºC	-10 ~ +40
Temperature coefficient of SPAN	%FS/10ºC	± 0.02
Temperature coefficient of ZERO	%FS/10ºC	± 0.03

Electrical connection:

Excitation+ red Excitation- black Signal+ green Signal- white
Four-core shielded cable with polyethylene.
Cable diameter: ¢5mm
Cable length: 3m

The cable length could be chose by customer's application.

Packaging & Shipping:

All products can be shipped by International Express including EMS,UPS,FedEx,DHL and TNT as you required. By plane or by ship is available, too. The detailed can be discussed with our sales.We will choose the safe and cheapest way for you to reduce your cost.

All products will be well packed in hard paper box properly and security. Packing list will be enclosed inside the box. Please take care of this when you unpack the package.

Our Services:

1. OEM/ODM Services:
Our company provides OEM/ODM service and Customized products service.

With know-how technique and mass production capability, we are able to provide the specified sensing solution according to customer's application.

2. Quality Quarantee
We quarantee product quality for one-year starting from the date of delivery.

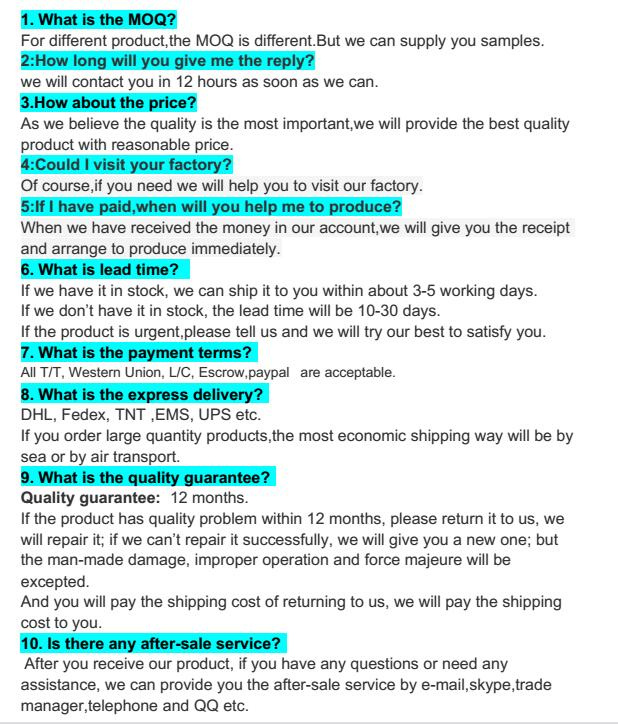

FAQ:

Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.

QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).

All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.

In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.

Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
