| Prod Model: |
XJY-PCB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Side: |
Single |
| For: |
LED |
| Copper Thickness: |
1 |
| Board Thickness: |
1.6mm |
| Min. Hole Size: |
0.25mm |
| Min. Line Width: |
6mil |
| Min. Line Spacing: |
6mil |
| Surface Finishing: |
Hal |
| Soldermask: |
White |
| Legend: |
Black |
| Material: |
Aluminum |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Flame Retardant Properties: |
V0 |
| Brand: |
Xjy |
Product Description
Quick Details
Place of Origin: |
Zhejiang China (Mainland) |
Brand Name: |
Walbond |
Model Number: |
1-L |
Base Material: |
aluminum |
Copper Thickness: |
1 |
Board Thickness: |
1.6mm |
Min. Hole Size: |
0.25mm |
Min. Line Width: |
6mil |
Min. Line Spacing: |
6mil |
Surface Finishing: |
HAL |
soldermask: |
white |
legend: |
black |
Outline: |
CNC |
Testing way: |
E-testing |
Packaging & Delivery
Packaging Detail: | Standard:carton Size:40*30*25,40*35*50 Weight:1L,3kgs/sqm;2L,3.5kgs/sqm |
| Delivery Detail: | 7-10 days |
Specifications

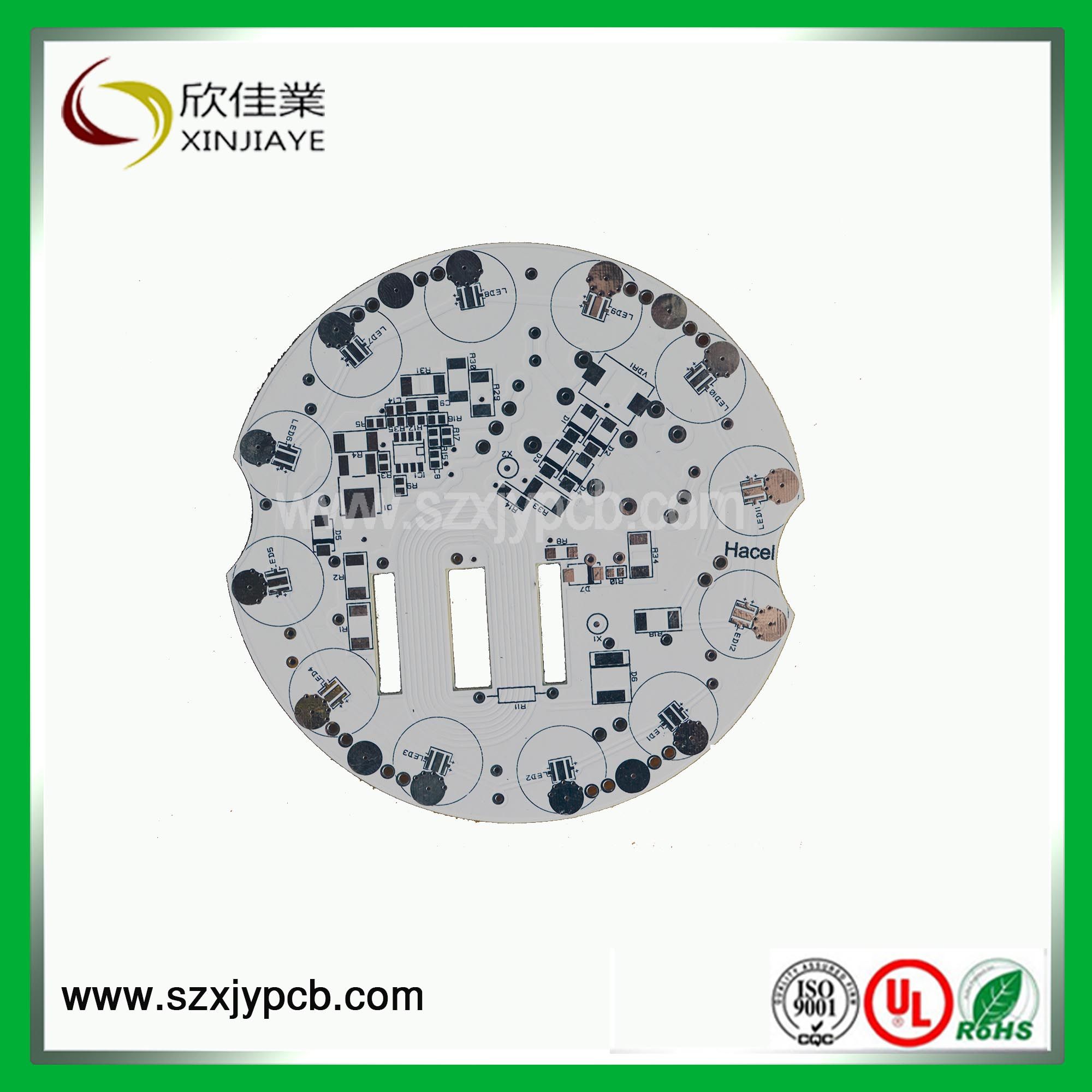

1.1L aluminum PCB;
2.good quality,reasonable price;
3.quicker delivery;
4.better logistic service;
5.UL,SGS,ROHS,ISO9000
Specification
This form is of my company's process capacity for your reference, for more messages, pls contact with us freely!
Item | Specification |
| Material | FR-4 / Hi-Tg FR-4 / Lead free Materials(RoHS Compliant)/CEM-3/CEM-1/Aluminium |
| Layer | single layer,double layer,multi-layer(4-10) |
| Board Thickness | 0.3mm-3.0mm,+/-0.1mm(tolerance) |
| Copper Thickness | 1/2OZ-3OZ (35um to 105um),+/-8um(tolerance),purity 99.5% |
| Impedance Control | ±10% |
| Bow and Twist MAX. | 0.75%(SMT) |
| Anti-strip | 0.88N/mm |
| Resistance | ≤20Ω |
| Reactance | 500V |
|
| Min. Value |
|
| Min. Trace/Space Width | 6 mil,+/-0.15mm(tolerance) |
| SMD Pitch | 10 mil |
| BGA Pitch | 20 mil |
| Min Pad Space | 4mil(SMT) |
| Plating Copper Thickness | 15um |
|
| Hole |
|
| Hole Size | 0.25mm--6.2mm |
| Hole Position Tolerance | ±0.1mm |
| PTH/NPTH Tolerance | ±0.15mm(dia.=0.4-1.4mm) |
| Pad Tolerance | ±0.1mm(dia.≥0.6mm) |
| Pad to hole/to pad Tolerance | ±0.05mm/±0.2mm |
|
| Solder Mask |
|
| Pad no Open | soldermask must cover all on both side, reject tin on pad |
| Pad Open | reject soldermask inside the hole on both side |
| Solder Mask Thickness | 0.7mil,raised H≤0.05 |
| Colour | green,blue,red,yellow,black,white(LPI/MATT.,UL 94 V0 approved) |
|
| Surface Finish |
|
| HAL | tin height≤0.05mm |
| ENIG | Nickel 3-7um,gold:0.5-0.7um |
| OSP/flash gold | 0.2-0.5um |
| Pealable mask | cover all on pad,thickness≥0.20mm |
| Carbon Ink | cover all on trace,Value≤30Ω |
|
| Outline |
|
| Outline Tolerance | ±0.2mm |
| Beveling | 30°,45° |
| V-cut position/depth | ±0.2mm(length≤100mm)/±0.2mm |
| Punch | ±0.1mm |
|
| E-testing pass percent | 97% pass for the first time,+/-2%(tolerance) |
|
| Certificate | SGS,ISO,ROHS,UL, |
Founded in April 2005, ShenZhen XinJiaYe Electronics Technology Co., Ltd. is specialized in the production of high density PCB and administrated by several PCB professionals. At the beginning of 2008, in order to provide customers with high quality PCB at better price, her owner rebuilt a new factory by investing additional 15 million in JIANG XI province XinFeng city, where there are enough environmental facilities and cheaper hydropower labor, to control the mass production cost at a competitive advantage.
XJYPCB is a PCB manufacturer specializing in quick turn prototype and batch quantity also offers one-stop service from layout to assembly. Producing Rigid PCB from 1layer to 10layer, FPCB from 1layer to 4layer, we are well-organized to grant our customers with best quality PCB' S at much lower cost. Our quick turn prototype production in Shenzhen allows us to provide short lead time and world class customer service at the same time, batch quantity production in Jiangxi helps us minimize labor cost and maintain high quality.
8, 000, 000 SMD points every day including BGA assembly and 6 DIP production lines (Lead free dual wave soldering machine) can satisfy the customer what will he want.
Our factories have ISO-9001: 2008 and UL Certification. With more than 500 employees, she is growing and her latest manufacturing outputs achieve more than 10, 000 square meters of double-sided PCB boards and 8, 000 square meters of multilayer PCB boards per month.
We are servicing our customers all over the world and gain their testimonials.
Our mission is to provide dependable full service PCB and best price for global customers. XJY is continuously improving our capabilities and processes to reduce operational costs and improve PCB quality.
In order to meet our clients needs, now we open A Line to assembly some kind of headphone and USB flash disk. Pictures and specifications show in our product list. Welcome to choose!
XJYPCB welcomes you to join us and experience our dedicated service to the printed circuit board industry. Whether you have a project to quote or are working on a new project and just want to talk with our knowledge staff, please feel free to call. We look forward to working with you throughout the entire life of your business.
