| Prod Model: |
R0175 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |
| Layer Count: |
1 Layer |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Brand: |
Xzg |
Product Description
Our main process capability:
| Items | Standard | Advanced |
| Layer Count | 1-20 | 1-24 |
| Base Material | CEM1,CEM3,FR4,IMS(Aluminum) |
| basic supplier | Kingboard,Shengyi,Nanya,ITEQ,Rogers,Totking, Ventec & etc |
| Board Thickness | 0.2-5.0mm | 0.2-7.0mm |
| Max. Panel Size | 520X660mm | 680X1200mm |
| Min. Mechnical Drill | 0.2mm | 0.15mm |
| Min. Line width&space | 0.1/0.1mm | 0.076/0.076mm |
| Max. Copper Thickness | 6 oz | 8oz |
| Min BGA size | 0.25mm | 0.2mm |
| MIn Bonding IC width | 0.178mm | 0.127mm |
| Max. Aspect Ratio | 8:1 | 10:1 |
| impedance tolerance | <=10% | <=7% |
| Solder Mask Color | Green,Black,White,Blue,Red,Matt Green, Matt Black |
| Silkscreen Color | White,Black,Yellow,Grey,Orange |
| Surface Treatment | HASL(Lead Free),OSP,ENIG, ENEPIG,Immersion Silver,Immersion Tin, Hard Gold Plating,Tin Plating, Silver Plating |
Our Lead time:
| layers | 1~2layers | 4layers | 6layers | 8layers |
| sample | 3~4 days | 5~6 days | 6 ~7days | 7 ~8days |
| Volume production | 7~9 days | 11 days | 14 days | 15 days |
We offer:
PTH 1~20layer PCB,
Aluminum PCB,
buried/blind via PCB,
high frequency PCB,
Heavy copper PCB-max 8oz
Why us:
UL (E246887), ISO9001/14001,ISO/TS16949certified.
Staff of 1000+.
13+years experience,annual turnover USD 80Million.
Full-process workshop.
All exported PCB have double-check before sending out.
One-stop EMS service,pcb assembly and SMT are available.
FAQ:
Q1:Are you a manufacturer or trading company?
A:XZG is a PCB manufacturer, specialized in PCB for over ten years.
Q2:What kind of PCB file you need before production?
A:Gerber, or files like PROTEL 99SE, PROTEL DXP, POWER PCB, CAM350.etc.
b. Dimensional Specifications
c. BOM List (only for PCBA)
Q3: How long will you send us quotation ?
A: After all files were sent, 2 to 8 hours as per your file.
Q4:No PCB file/Gbr file, only have the PCB sample,can you produce it for me?
A: Yes, we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB design and work out the PCB/PCBA
Q5: How to find you?
A: Please click the button "send" at the end of each page, or contact our sales on Trade Manage online!
Why US:
UL (E246887), ISO9001, TS16949, ISO 14001 certified.
Turnover USD 50-100 million per year
25,000 sqm area,1100 staff
Mass Production from single to 20 layers
Special Material: ROGERS, Arlon, Taconic.etc.
Client: SAMSUNG, Skyworth, Malata, Midea.etc.

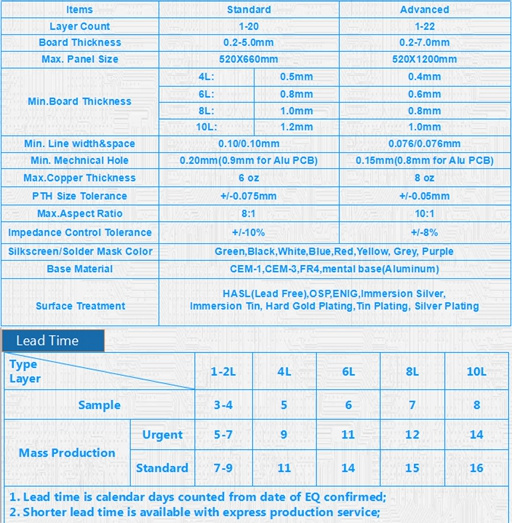

Capability & Lead Time:

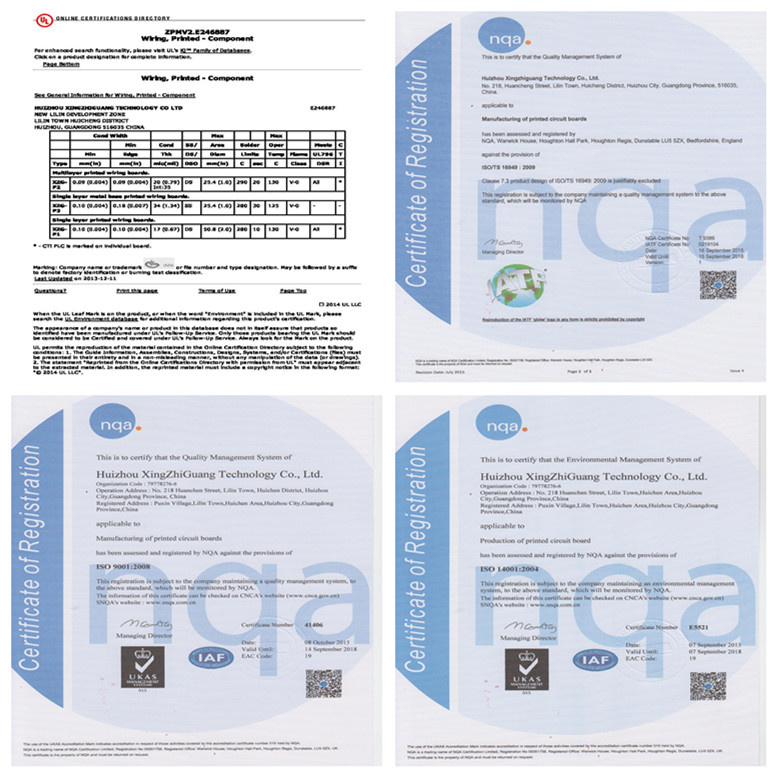

Certificates(UL:E246887, TS16949, ISO14001, ISO9001):

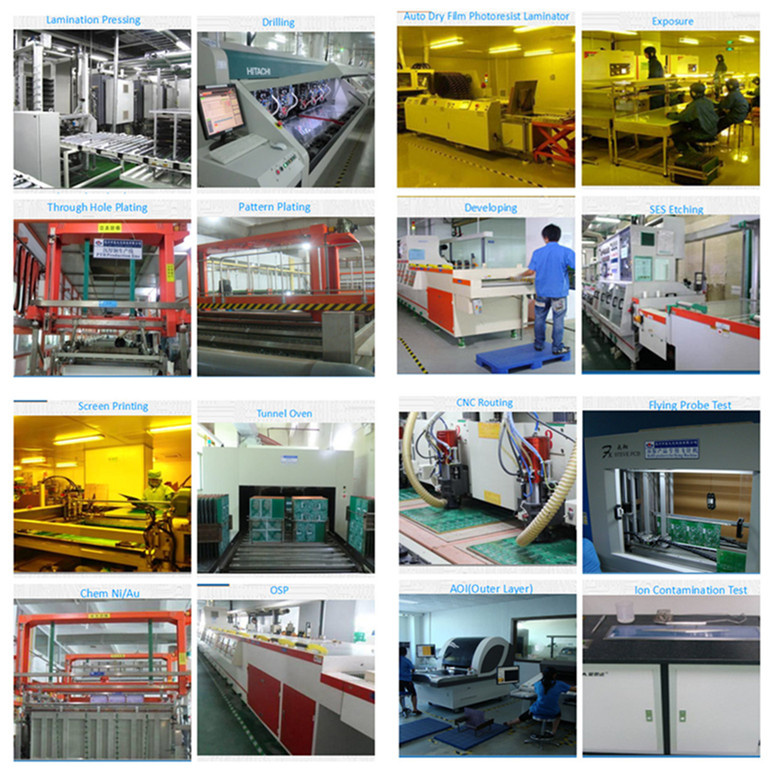

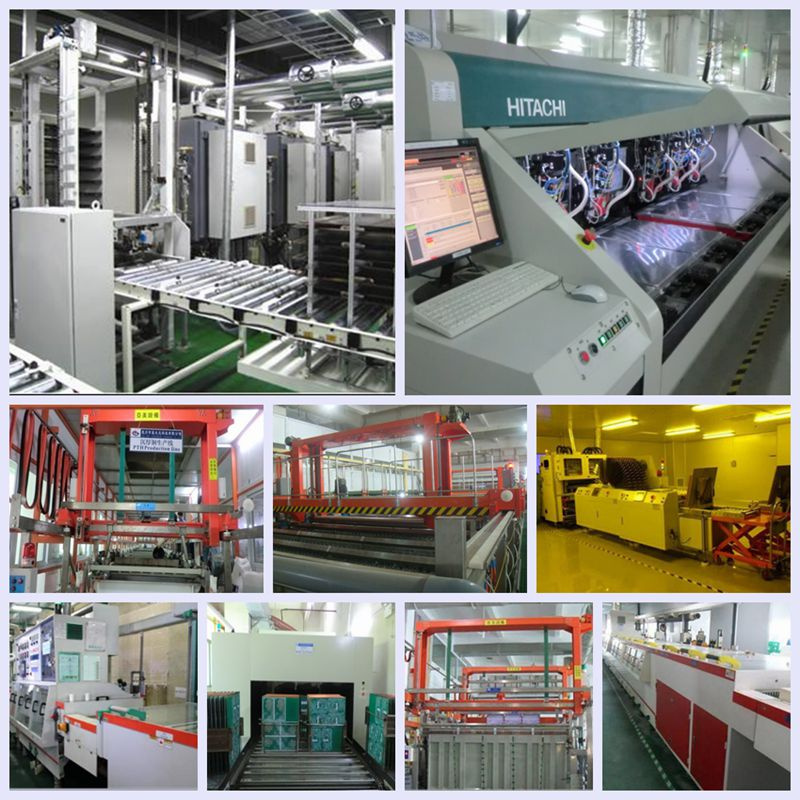

Factory Tour:
FAQ:
Q1:Are you a manufacturer or trading company?
A:XingZhiGuang is a PCB manufacturer, specialized in PCB for over ten years.
Q2:What kind of PCB file you need before production
A:Gerber, or files like PROTEL 99SE, PROTEL DXP, POWER PCB, CAM350.etc.
b. Dimensional Specifications
c. BOM List (only for PCBA)
Q3: How long will you send us quotation ?
A: After all files were sent, 2 to 8 hours as per your file.
Q4:What is your minimum order quantity?
A:Our MOQ is 1 PCS.
Q5: How to find you?
A: Please click the button "send" at the end of each page, or contact our sales on Trade Manage online!
Xingzhiguang Technology, established in 2002, with factory area of 25, 000 sqm, total staff about 1200 and overall investment nearly USD 50 million, is a professional PCB manufacturer with factory located in Huizhou.
Through more than 10-year experience in PCB production, Xingzhiguang Technology is supporting an annual capacity of more than 900, 000 sqm, among which 30% is 1~2 layer and 70% is multi-layer, with the maximum layer count up to 20 layers; We can process many different kinds of laminates, such as FR4, high-Tg FR4, metal-based laminate (includes aluminum-based), Isola, Rogers and so on. In addition, we have started producing PCBA (PCB assembly) and FPCB (flexible PCB) as well since the end of 2014. We have passed a lot of authorized certification, including but not limited to UL(E246887), ISO9001: 2008, ISO/TS16949 and ISO 14001: 2004, and this ensures us to be capable to provide high-quality products to meet different customers' requirements.
Our products are widely used in fields of telecommunication, power supply, security surveillance, automotive, industry control, LED lighting & etc
Finally, as our commitment to the environment protection, we have also invested about USD 600, 000 in water-recycling system construction. This is the best witness to certify that xingzhiguang technology is a responsible enterprise.
