Henan Dirk Electronic Co., Ltd. >> Single Speed 8 Channel DC24V Remote Control F23-a++ for Tiller and Twin Hook Hoist, Telecrane Rmeote Control

Single Speed 8 Channel DC24V Remote Control F23-a++ for Tiller and Twin Hook Hoist, Telecrane Rmeote Control

Single Speed 8 Channel DC24V Remote Control F23-a++ for Tiller and Twin Hook Hoist, Telecrane Rmeote Control
Price: US $ 1/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: F23-A++
Product Name: Industrial Wireless Radio Remote Control
Unique Code: Over 4.3billon Unique ID Codes
Temperature Range: -35ºC-----------+80ºC
Model No: F23-a++
Application: Lifting Equipment
Signal Transmission: RF Remote Control
Type: Button
Certification: CE
Universal: Universal
Transmission Distance: >100m
Voltage: 3V
Battery Type: AA Battery
Material: Glass Fiber

Product Description

Product Description

F23-A++ Telecrane Radio Industrial Wireless Remote Controls for Crane Using




Product description

Transmitter Information:


  1. Model: F23-A++-TX
  2. Size: 164 x 75x 45mm
  3. Weight:338g
  4. Protection Degree: IP65

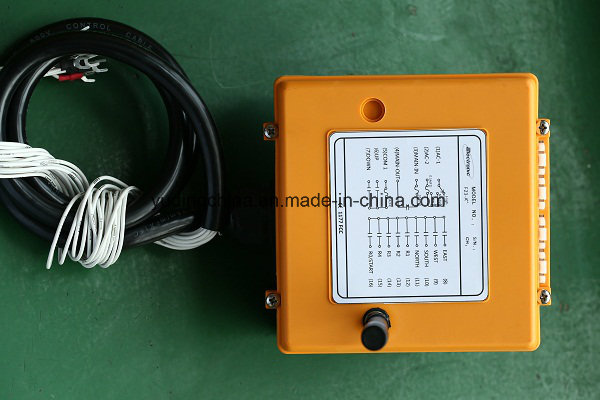

Receiver Information:
  1. Model: F23-A++-RX
  2. Size: 170 x167 x87mm
  3. Weight: 1153g
  4. Protection Degree: IP65
  5. Power:AC/DC12V,AC/DC24V,AC36V,AC48V,AC110V,AC220V,AC65-440V


Feature:

1. The control distance can reach 100m.

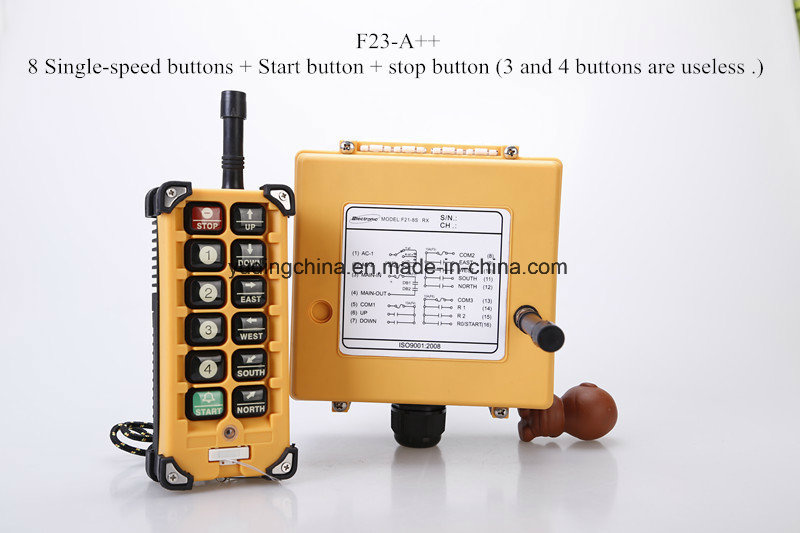

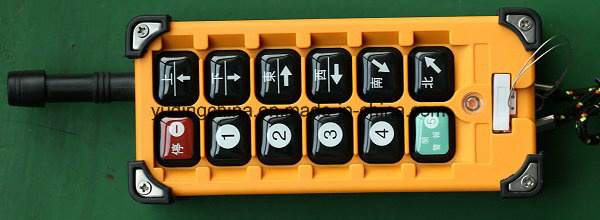

2. 10 push buttons, include ON/OFF, UP/DOWN, EAST/WEST, SOUNTH/NORTH, 1/2, 3/4(useless).
3.
Total control motions can reach 8.
4.
Earthquake-reduction design, to avoid damage from sudden shake and falling.
5.
For emergency circumstances, you can take out the magnet key to cut down the power on a moment.
6.
Water-proof, IP 65, can be used inner or outside.
7.
Free transmitter protecting cover available.

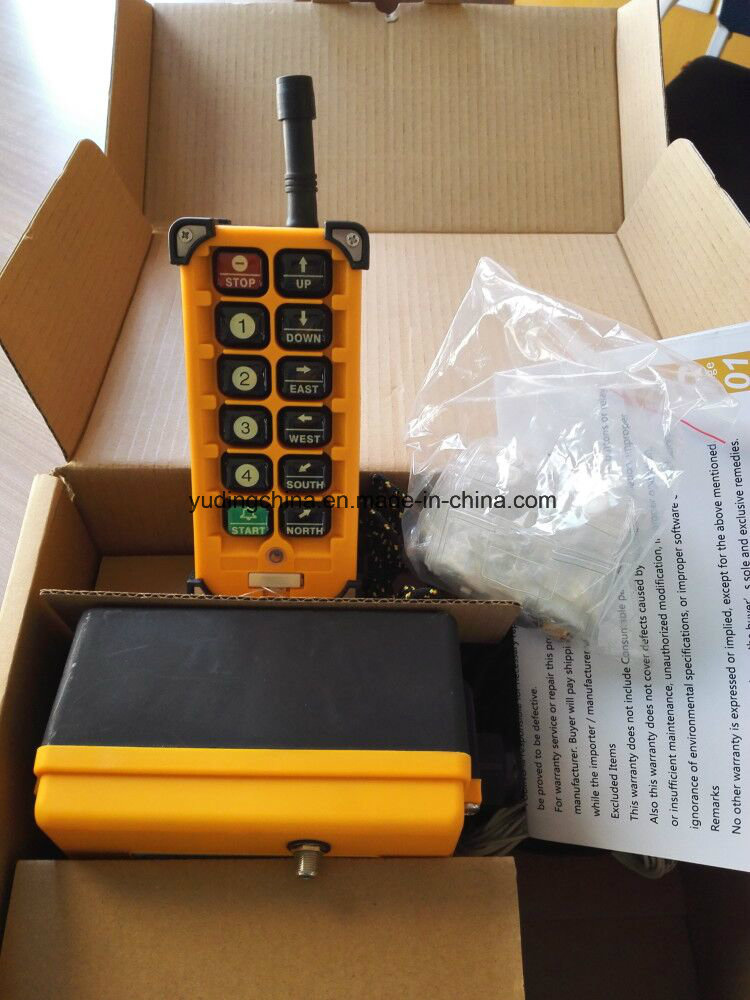

Standard Set:

1. One transmitter;
2. One receiver;
3. One 1m cable connect with receiver
4. One operation and maintain manual.

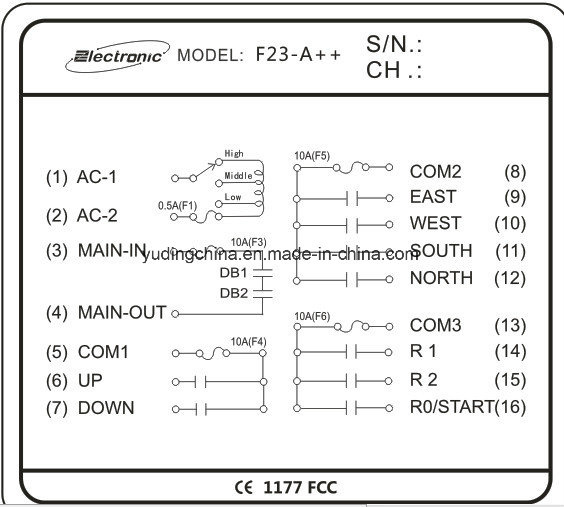

Connection Diagram:


Application :


Single hook electric cable hoist ,monorails,single speed electric hoist or electric single speed hoist crane,floating crane ,overhead crane ,vehicles equipment ,door control system ,engineering machinery ,lifting platform ,traveling crane ,hydraulic equipment and used for industrial remote control which are under 6 connection.

Remote control is widely used in lifting equipment ,construction machinery , loading/unloading cargo , water supply system , data transmission, the iron smelting and steel- making , automobile manufacturing ,paper making and chemical industry ,steel structure processing ,
galvanization ,shipbuilding ,railroad ,bridge ,tunnel construction and other equipment and sites which can by worked by radio controls .




About  us:
HeNan DIRK Electronic Co., Ltd is an industrial radio remote controls manufacturer in china .established in August, 2010,With more than 10 years experience on this industrial remote control system business area. headquartered in Zhengzhou, Henan province.

DIRK has so many experts in the industrial radio remote controller area to assure workers safety and productivity , dirk are becoming one of the leading companies in this industry in china.

Our main products is :F21 Series radio remote controls ,F23 series radio remote controls ,F24-60 Dual Joystick radio remote control .all these remote controls are easy to operate to keep workers safety and productivity.All These products are CE & FCC Certificate . Quality is company's life. From the raw material testing, manufacturing, aging test and assembly , Each process are operate according to ISO9001:2008 & international quality control system to guarantee the products quality.competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 provinces.we also have built long-term business







Henan Dirk Electronic Co. Ltd (former Henan Yuding Electronics Crop., Ltd) is an industrial radio remote controls manufacturer in China. Established in August, 2010, With more than 10 years experience on this industrial remote control system business area. Headquartered in Zhengzhou, Henan province. Dirk has so many experts in the industrial radio remote controller area to assure quality and productivity, Dirk are becoming one of the leading companies in this industry in China.

Our main products is: F21 Series radio remote controls, F23 series radio remote controls, F24-60 Dual Joystick radio remote control and explosion-proof remote controls. All these remote controls are easy to operate to keep workers safety and Efficient. All our products are CE & FCC & ISO Certificate.

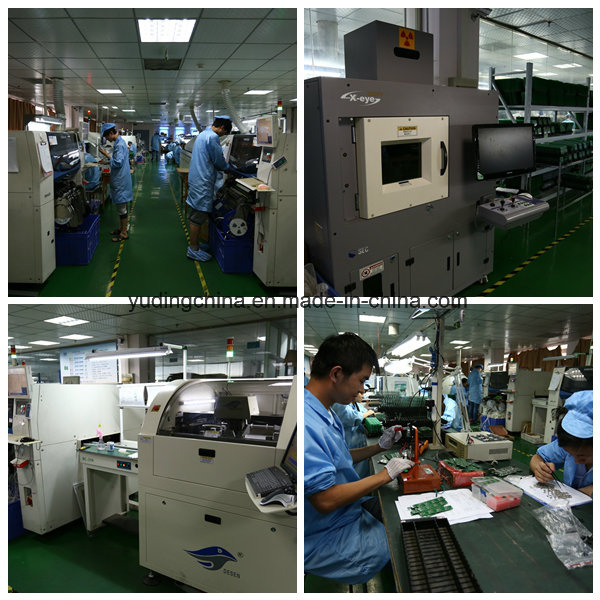

Quality is company's life. From the raw material testing, manufacturing, aging test and assembly, Each process are operate according to ISO9001: 2008 & international quality control system to guarantee the products quality. Competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 countries. We also have built long-term business relationship with the foreign customers.

We here sincerely hope to establish partnership with you and your esteem company.
