Single Speed Remote Control for Lifting Equipment

Prod Model:	F21-16S
Product Name:	Industrial Wireless Radio Remote Control
Unique Code:	Over 4.3billon Unique ID Codes
Temperature Range:	-35ºC-----------+80ºC
Certificates:	Ce,FCC,ISO9001:2008
Application:	Lifting Equipment
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	>100m
Voltage:	3V
Battery Type:	AA Battery
Material:	Glass Fiber

Product Description

Product Description

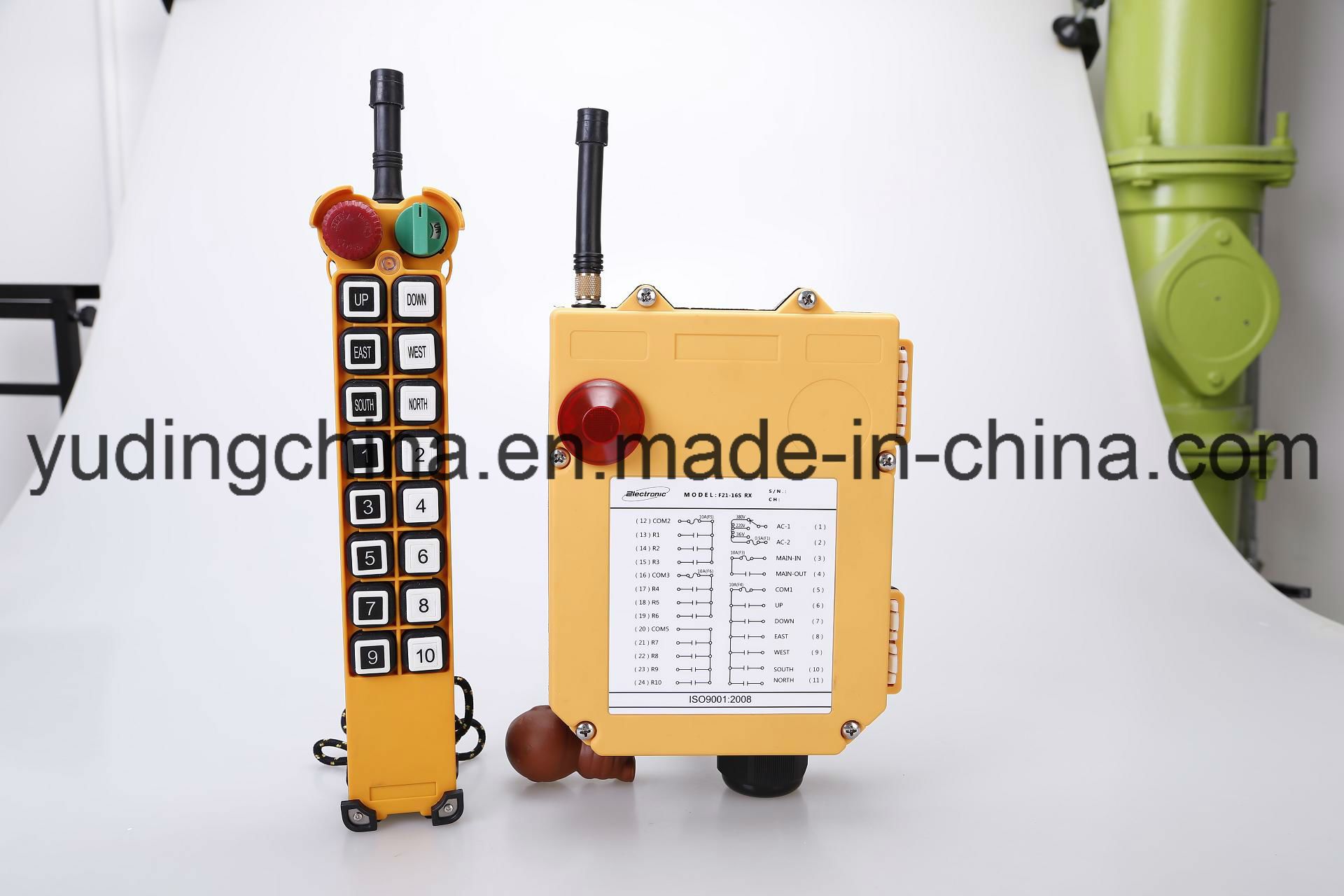

Manufacturer Industrial radio remote control F21-16s


Advantages:
1.More than 10 years researching and exporting experience in Radio Remote Control industry
2. More than 20 people R&D working team, have the ability to research and develop new product independently.
3. Have 15 production lines. We also have many production machines such Printing circuit board machine, SMT machine, automatic wave soldering machine, automatic soldering robot, etc.
4. Well and high quality control, all working process according to ISO9001:2008.
5. CE, FCC & ISO certificates.
6. OEM acceptable.
7. One year warranty.


Products Application:
Widely applied for lifting equipment, construction machinery, cargo loading/unloading machines, water supply system, data transmission, the iron-smelting and steel-making, the automobile manufacturing, paper-making and chemical industry, steel structure processing, galvanization, shipbuilding, railroad, bridge, tunnel construction and other equipment and sites which can be worked by radio controls.

Specifications:

Application	Overhead cranes, hoist ,chain hoist and other industrial machine.
Frequency	310.0325~331.165Mhz
Frequency generation:	Crystal (plug in)
Channel	80
Channel Spacing	0.2675MHz
Control motions	16
Control distance	Up to 100m
Certificates	CE, FCC, ISO
Number of push button	16 Single speed push button
Unique code	Over 4.3billon unique ID codes .
Working temperature	-35°C ~ +80°C
Enclosure protection class	IP65
Transmitter power	AA-size batteries
Receiver power	AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V
Output capacity	Full sealed relay output with 5 amperes
Warranty	1 year
Material	glass fiber



Standard configuration:
 One transmitter;
 One receiver;
 One 1m cable connect with receiver;
 One operation and maintain manual.


Buying Guides:

Please tell us your specification according the above different drawing, if difficult to you, kindly see the
below the basic parameters or tell us your questions. We will choose a suitable products for you.
Or Just tell me where you will use, then it is my turns.

1,single  speed or  double  speed?

2,controi  voltage ( 24/48/110/220/380VAC 12/24 VDC)

3,how many buttons?(2/4/6/8)

4,orther request?

Cerificates
CE,FCC,ISO9001:2008
