| Prod Model: |
Z900E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Appearance: |
Compact, Small |
| Input Power 220V: |
0.4kw-3.7kw |
| Input Power 380V: |
0.75kw-160kw |
| Timing Control: |
0.0-6500.0 Minutes |
| Communication Methods: |
RS485 |
| Ambient Temperature: |
-10 ~ 40c |
| Vibration: |
Less Than 5.9m/S2 (0.6g) |
| Speed Range: |
1:100 Sfvc |
| Torque Boost: |
Fixed Boost Customized Boost 0.1% - 30.0% |
| Color: |
Black |
| Application: |
High Frequency Converter Transducer |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Current |
| Brand: |
Machtric |
| Output Type: |
1/3 Phase |
Product Description
Detail :

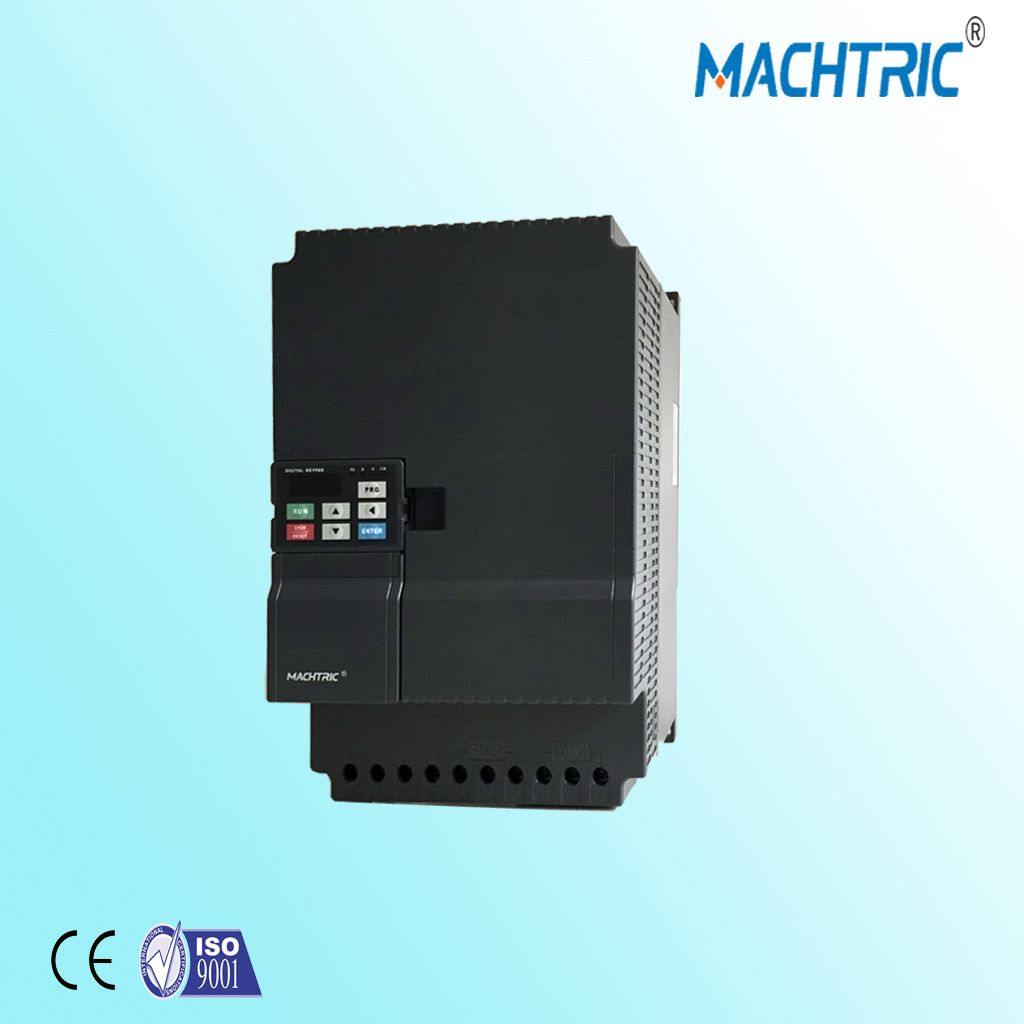

Z900E series Open loop vector control compact variable frequency inverter for general purpose
.
Application
Food Machiney : Dumpling Machine ,Mixer ,Encrusting Machtine ,Pastry Machine
Woodworking Machinery : Polishing Machine ,Grinding Machine ,Engraving Machine
CNC Machines ,Treadmills ,Grinders ,Drilling Machines ,Coating Machines ,Milling Machines ,Edge banding Machines .
Small pumps ,Blower,Converying Equipments
Industrial Washing Machines ,Centrifuges ,Air Compressors ,Stone Cutting Machine
If you have any question about our company and products feel free to contact me .
Production Specifications:
Items |
Z900GE |
Power
Supply |
Rated voltage, Frequency |
Single phase/Three phase 220V 50/60Hz |
Voltage Range |
220V:170V~240V 380V:330~440V |
Output |
Voltage Range |
220V:0~220V,380V:0~380V |
Frequency Range |
0.10`400.00Hz |
Control method |
Sensorless flux vector control (SFVC)
Voltage/Frequency (V/F) control |
Indication |
Operating status/Alarm definition/interactive guidance: eg , frequency setting, the output frequency/current, DC bus voltage, the temperature and so on. |
Control Specifications |
Output Frequency Range |
0.10Hz~400.00Hz |
Frequency Setting Resolution |
Digital input:0.01Hz, analog input:0.1% of maximum output frequency |
Output Frequency Accuracy |
0.01Hz |
V/F Control |
Setting V/F curve to satisfy various load requirements |
Torque Control |
Auto increase: auto raise torque by loading condition; manual increase; enable to set0.0~20.0% of raising torque |
Multifunctional lnput
Terminal |
Six multi-function input terminals, realizing functions including fifteen section speed control, program running, four-section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions |
Multifunctional Output
Terminal |
2 multi-function output terminals for displaying of running, zero speed, counter, external abnormity, program operation and other information and warnings |
Acceleration/deceleration Time Setting |
0~-999.9s acceleration/deceleration time can be set individually |
Other Functions |
PID Control |
Built-in PID control |
RS485 |
Standard RS485 communication function(MODBUS) |
Frequency Setting |
Analog input:0 to 10V,,0 to 20mA can be selected;
Dig ital input: Input using the setting dial of the operation panel or RS485 or UP/DOWN |
Multi-speed |
Six multifunction input terminals, 15section speed can be set |
Automatic voltage regulation |
Automatic voltage regulation function can be selected |
Counter |
Built -in 2group of counters |
Protection/
Warning Function |
Overload |
150%,60 second(Constant torque) |
Over Voltage |
Over voltage protection can be set |
Under Voltage |
Under voltage protection can be set |
Other Protections |
Overheat, short circuit, over current, and parameter lock and so on |
Environment |
Ambient Temperature |
-10ºC to 40ºC(non-freezing) |
Ambient Humidity |
Max.95%(non-condensing) |
Altitude |
Lower than 1000m |
Vibration |
Max. 0.5G |
Structure |
Cooling Mode |
Forced air cooling |
Protective Structure |
IP20 |
Installation |
Mode |
Wall Mounted |
