| Prod Model: |
Asian Sun bv-001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Henan, China (Mainland) |
| Model Number: |
Asian Sun BV Cable-001, |
| Voltage: |
300/500V,450/750V |
| Color: |
Black,Brown,Grey,Blue,Green/Yellow |
| Jacket: |
Without Jacket, Without Jacket |
| Current: |
up to 1113A Based on Cross Section |
| PVC Sheathed: |
Yes |
| Item: |
Copper PVC Housing Cable |
| Attentions: |
Quality /Client's Request |
| Port: |
Qingdao |
| Type: |
Insulated |
| Conductor Type: |
Solid |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Application: |
Indoor |
| Range Of Application: |
House |
| Brand: |
Asian Sun |
Product Description

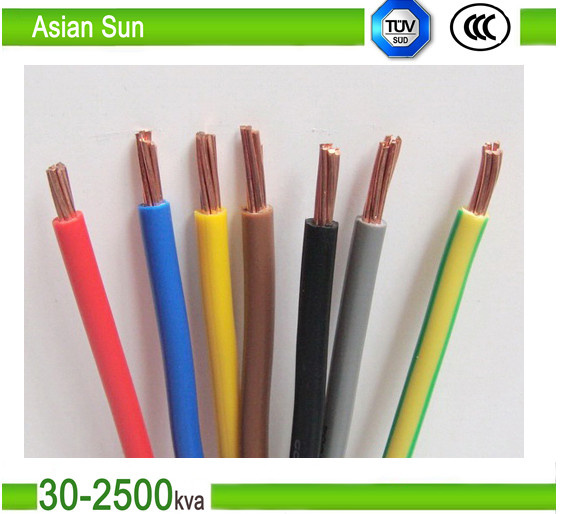

Single THW copper cable wire electrical wire
Specifications
1.Low voltage300/500V 450/750V
2.Annealed copper wire,solid or stranded
3.PVC Insulation
4.0.75~240sqmm
5.IEC VDE BS AS/NZS
Product Description
Single THW copper cable wire electrical wire
Copper core pvc insulasted electric cable is a fine and ideal cable with conductor of plain annealed copper wires,solid or stranded.These cables are used for general purpose,as building wire for power, lighting and control wire to electrical appliances,suitable for use in conduit and for fixed,protected installation. The cable can be of flame ratardance,fire resistance and other property.
Technical Information:
1. U0 /U: 300/500V,450/750V
2. Standard Applied: IEC 60227,BS 6004,VDE0281,GB/T 5023,JB/T8734
3. Max.Operating Temperature: 70°C,can be 90°C,105°C as per requirent
4. Conductor:Class 1/2 Plain Annealed copper wire,solid or stranded
5. Insulation:PVC
6.Cores:single core
7.Range of Nominal cross section: 0.75~240sqmm
8. Jacket: without Jacket
9. Color: Black,Brown,Grey,Blue,Green/Yellow or orthers on request
10.Flame ratardance,fire resistance and other property can be available
11.Packing:100 meter/roll or as per requirement
12. Certification: ISO9001,ISO14001,OHSMS18001,CE,CB,CCC,SAA,etc.
13.OME can be available
14.BV cables have very good sales over the world,enjoy ing a very good reputation based on top quality,most competitive price and best service.
Parameter of Single THW copper cable wire electrical wire
Model | Name |
| BV | Copper Core PVC Insulation Wire |
| BLV | Aluminum Core PVC Insulation Wire |
| BVR | Copper Core PVC Insulation Flexible Wire |
| BVV | Copper Core PVC Insulation PVC Sheath Round Wire |
| BVVB | Copper Core PVC Insulation PVC Sheath Flat Wire |
| BLVVB | Aluminum Core PVC Insulation PVC Sheath Flat Wire |
| BV-90 | Copper Core Heat-resistance 105oC PVC Insulation |
BV cable of Common wire
Kindly note that we can make it as your requirement
Nominal
Sectional area mm2 | Conductor
No/Dia.
mm | Nominal Insulated thick mm | Max overall Dia.mm | Conductor
Resistance at 20ºC | Min insulated resistance at 70M/KM | Weight
Kg/km |
| Cu | Al | Cu | Al |
| 1.5 | 1/1.38 | 0.7 | 3.3 | 12.1 | - | 0.011 | 19.2 | - |
| 1.5 | 7/0.52 | 0.7 | 3.5 | 12.1 | - | 0.010 | 20.6 | - |
| 2.5 | 1/1.78 | 0.8 | 3.9 | 7.41 | 11.8 | 0.010 | 30.8 | 15.0 |
| 4 | 1/2.25 | 0.8 | 4.4 | 4.61 | 7.39 | 0.0085 | 45.5 | 21.0 |
| 6 | 1/2.76 | 0.8 | 4.9 | 3.08 | 4.91 | 0.0070 | 65.0 | 29.0 |
| 10 | 7/1.35 | 1.0 | 7.0 | 1.83 | 3.08 | 0.0065 | 110.0 | 52.0 |
| 16 | 7/1.7 | 1.0 | 8.0 | 1.15 | 1.91 | 0.0050 | 170.0 | 70.0 |
| 25 | 7/2.14 | 1.2 | 10.0 | 0.727 | 1.20 | 0.0050 | 270.0 | 110.0 |
| 35 | 7/2.52 | 1.2 | 11.5 | 0.524 | 0.868 | 0.0040 | 364.0 | 150.0 |
| 50 | 19/1.78 | 1.4 | 13.0 | 0.387 | 0.641 | 0.0045 | 5000.0 | 200.0 |
| 70 | 19/2.14 | 1.4 | 15.0 | 0.268 | 0.443 | 0.0035 | 688.0 | 269.0 |
| 95 | 19/2.52 | 1.6 | 17.5 | 0.193 | 0.320 | 0.0035 | 953.0 | 360.0 |
| 120 | 37/2.03 | 1.6 | 19.0 | 0.153 | 0.253 | 0.0032 | 1168.0 | 449.0 |
| 150 | 37/2.25 | 1.8 | 21.0 | 0.124 | 0.206 | 0.0032 | 1466.0 | 551.0 |
| 185 | 37/2.52 | 2.0 | 32.5 | 0.099 | 0.164 | 0.0032 | 1808.0 | 668.0 |
Single THW copper cable wire electrical wire
Nominal
Sectional
area mm2 | Conductor
No/Dia.
mm | Nominal Insulated thick mm | Max overall Dia.mm | Conductor
Resistance at 20ºC | Min insulated resistance at 70M/KM | Weight
Kg/km |
| 2.5 | 9/0.41 | 0.8 | 4.2 | 7.41 | 0.011 | 33.0 |
| 4 | 19/0.52 | 0.8 | 4.8 | 4.61 | 0.009 | 48.0 |
| 6 | 19/0.64 | 0.8 | 5.6 | 3.08 | 0.0084 | 68.0 |
| 10 | 49/0.64 | 1.0 | 7.6 | 1.83 | 0.0072 | 115.0 |
| 16 | 49/0.64 | 1.0 | 8.8 | 1.15 | 0.0062 | 176.0 |
| 25 | 98/0.58 | 1.2 | 11.0 | 0.727 | 0.0058 | 272.0 |
| 35 | 133/0.58 | 1.2 | 12.5 | 0.524 | 0.0052 | 384.0 |
| 50 | 133/0.68 | 1.4 | 16.5 | 0.387 | 0.0051 | 510.0 |
| 70 | 189/0.68 | 1.4 | 16.5 | 0.268 | 0.0045 | 714.0 |
| 95 | 259/0.68 | 1.0 | 19.5 | 0.139 | 0.0035 | 965.0 |
| 120 | 259/0.76 | 1.8 | 22.0 | 0.153 | 0.0032 | 1210.0 |
All the goods are full meter and working life are 25 years!
Single THW copper cable wire electrical wire
solar cable have one big workshop about 10,000m2, our factory is about 61,081m2 with register capital about 540 million. 700 stuff and 40 engineer. every step is to make sure the delivery time and quality!
FAQ:
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer's requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
