| Prod Model: |
fiber patch cord jumper |
| Customized: |
Available |
| Product Name: |
Fiber Optic Jumper |
| Insert Loss: |
< 0.20dB |
| Jacket Material: |
PVC or LSZH |
| Installation: |
Indoor |
| Length: |
Customized Lengths 0.5m-100m |
| Fiber Type: |
OS1, OS2, Om1, Om2, Om3, Om4 |
| Return Loss: |
PC>30dB; APC> 50dB |
| Polishing Type: |
PC, Upc, APC |
| Cable Diameter: |
0.9mm, 2.0mm, 3.0mm or Customization |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC-SC |
| Certification: |
CCC |
Product Description

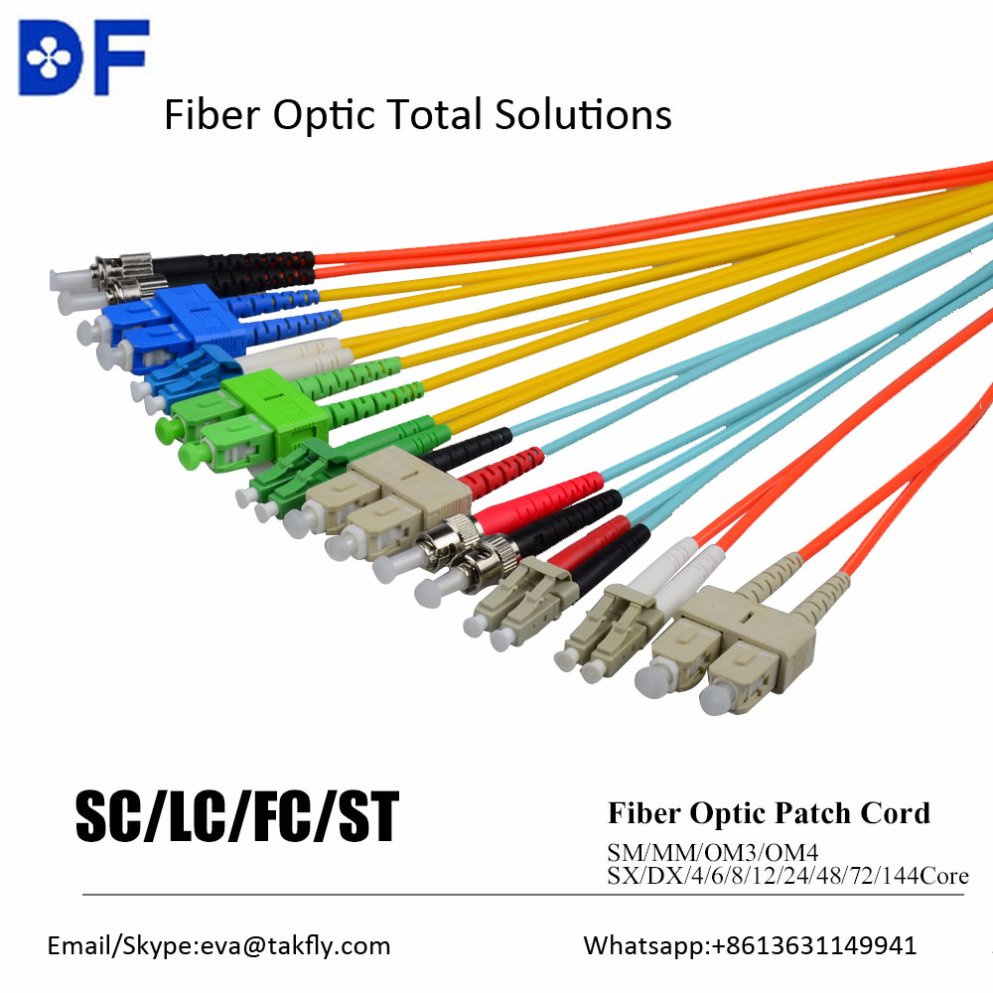

Singlemode Duplex LC/SC/ST/FC fiber optic patch cable/jumper
Description
Fiber Optic Jumper is a optical fiber cable with two ends adding connectors to connect beam path. Pigtail is fiber cable permanently attached connector only at one end. Fiber Optic Jumper assembled with various types of connectors (such as FC, SC, ST, LC, MU, MTRJ etc.) There are three kinds of polished fiber end-face: PC, UPC and APC. We employ advanced technique and equipment to manufacture so as to ensure the high quality of mass production.
Features
1. Low insertion loss and hight return loss.
2. Excellent repeatability and changeability
3. Simplex and duplex available.
4. With ceramic fettules.
5. PVC&LSNH cable option.
6. Optical performance 100% factory test.
Applications
1. Telecom Network
2. Local Ring Network
3. Optical Fiber Sensor
4. Optical Fiber Test Equipment
5. Optical Fiber Communication System
6. FTTH, LAN, PON & Optical CATV
Performance Specifications
| Parameter | Unit | FC, SC, LC | ST, MU | MTRJ, MPO | E2000 |
| SM | MM | SM | MM | SM | MM | SM |
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC |
| Insertion Loss | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Repeatability | dB | ≤0.1 |
| Durability | dB | ≤0.2dB typical change, 1000 matings |
| Operating temperature | ºC | -20 ~ +75 |
| Storage temperature | ºC | -40 ~ +85 |
| | db | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 |
| Operating temperature | ° C | -40~75 | -40~75 | -40~75 | -40~75 | -40~75 |
| Storage temperature | ° C | -45~85 | -45~85 | -45~85 | -45~85 | -45~85 |
| Cable diameter | mm | φ 3.0, φ 2.0, φ 0.9 | φ 3.0, φ 2.0, φ 0.9 | φ 3.0, φ 2.0, φ 0.9 | φ 3.0, φ 2.0, φ 0.9 | φ 3.0, φ 2.0, φ 0.9 |
Competitive Advantage
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A: Incoming material inspected by QC.
B: Manufacturing Process Control
C: Workers trained daily/weekly/monthly
D: Work instructions manual at each work station
E: 5S system implemented
F: Machine maintenance procedure
G: Quality Control and Final Inspection
The QC staff will check the material, process product
and final product according to the specification or test procedure.
2, Our R&D efforts center on reinforcing and developing element technologies
needed to support the future growth and success for customers and KINGTONE.
3, We know customers have urgent needs.
We are skilled at effective communication to interact with customers.
In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime delivery
Contact:
Dear friend,if you have any questions about Fiber Optic Jumper or other fiber optic products,please contact with me.
My name: Eva Lin
Mob: +8613631149941
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.

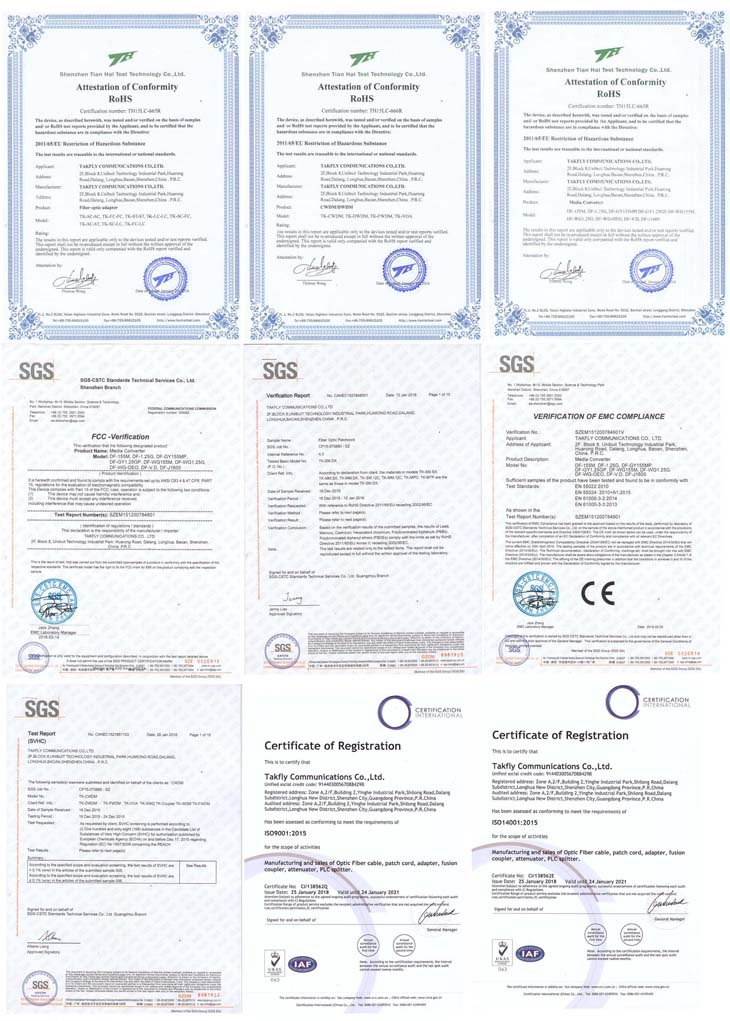

The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

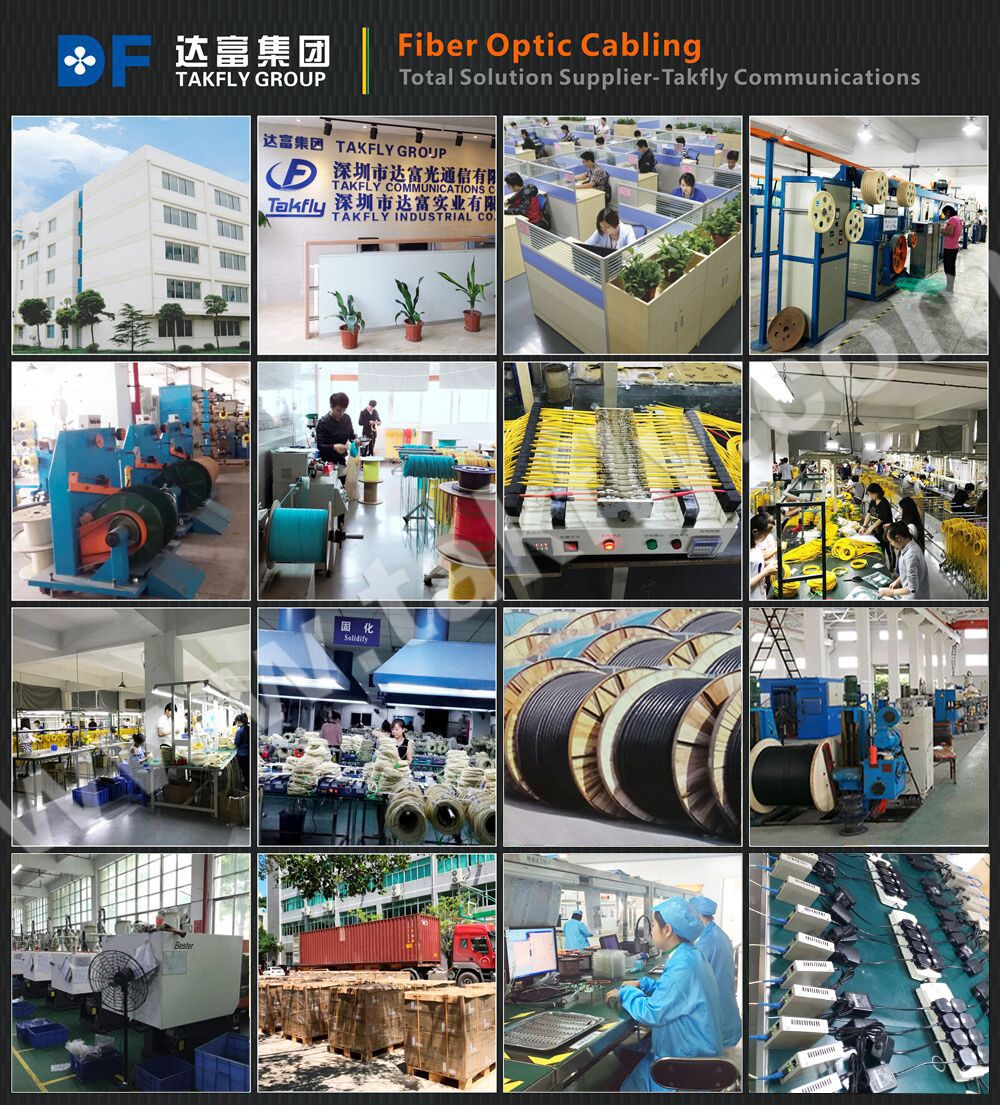

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
