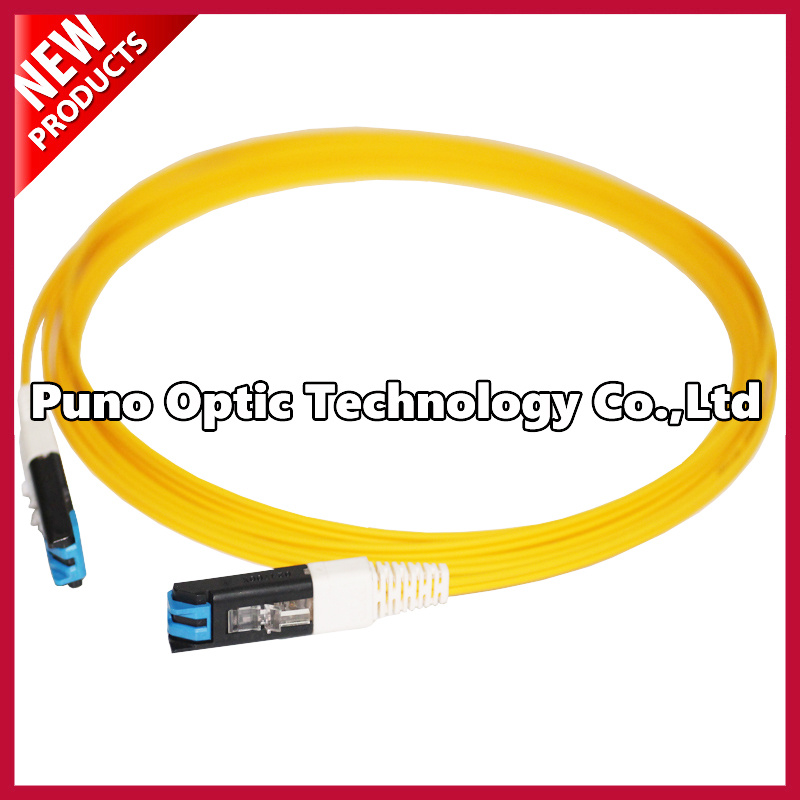

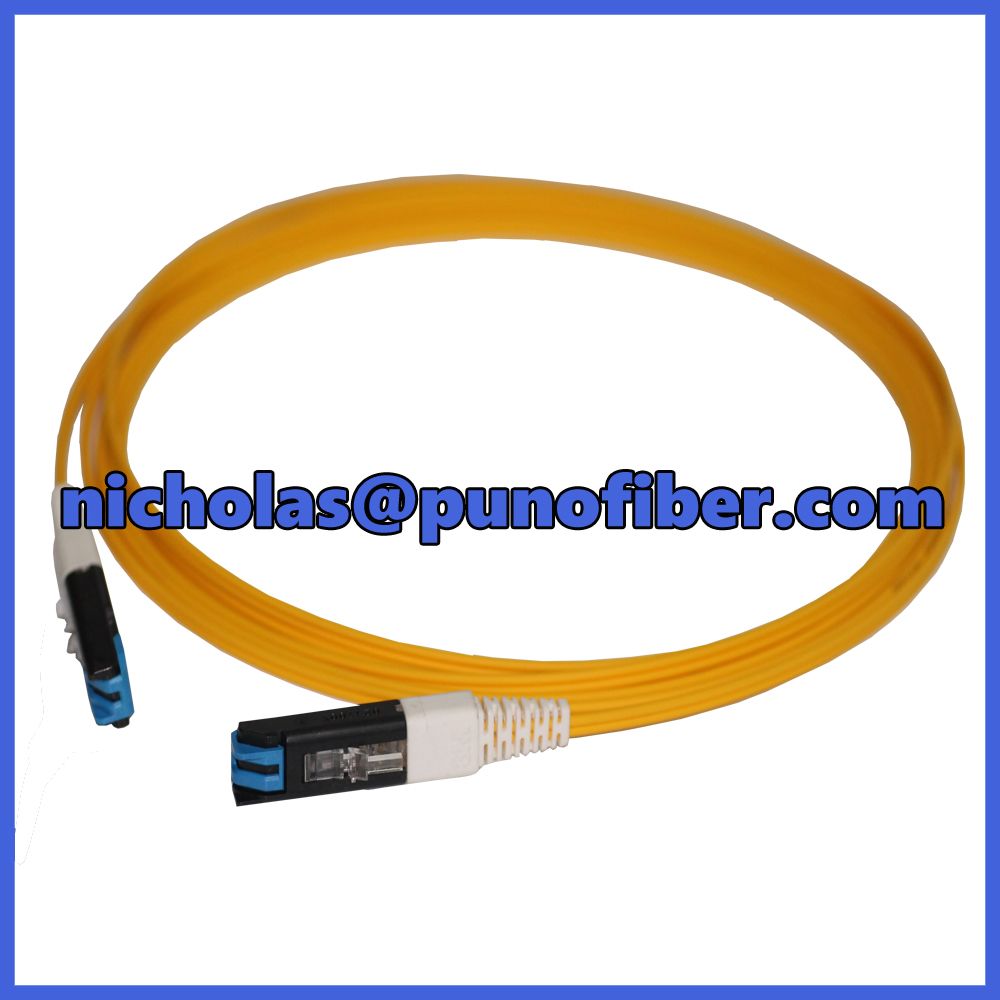

Singlemode GGP Fiber Connected VF45 Cable Fiber Patch Cord

Prod Model:	PN-005
Color:	Yellow
Application:	Communication
Type:	Single-mode Fiber
Certification:	ISO9001
Connection Structure:	Vf45
Brand:	Puno

Product Description

Singlemode VF45 Fiber Patch Cord With GGP Fiber Connected

Description:
The Volition VF-45 Socket and Patch Cords from 3M are the latest duplex, fiber optic interconnects for affordable, high bandwidth, fiber-to-the-desk networks. The VF-45 plug and socket work like an 8-pin modular jack, bringing the simplicity of the RJ-45 jack to optical fiber applications.
VF-45 sockets can be field terminated in closet patch panels and in work area outlets for premises backbone and horizontal cabling applications. Field termination on duplex multimode and single-mode fiber using the Volition VF-45 Termination Kit takes less than two minutes, two fibers at a time! The mating VF-45 plugs, factoryterminated onto patch cords, enables interconnection from socket-to-socket or from socket-to-transceiver devices. VF-45 patch cords are provided in a variety of lengths and are also available in hybrid ST* or SC configurations. All VF-45 patch cords are constructed with the innovative 3M "GGP" high-strength coated optical fiber, providing for durability and tight bend radius in desktop applications.

Features & Application:
√ Plug-to-socket design (no adapter needed);
√ High-density duplex interconnect;
√ V-groove alignment with injection-molded parts;
√ RJ-45 style latch; Socket, snap together assembly;
√ Eliminates expensive ferrules, sleeves or precision components;
√ Easy to install, lower labor costs;
√ Dependable in under-desk applications.

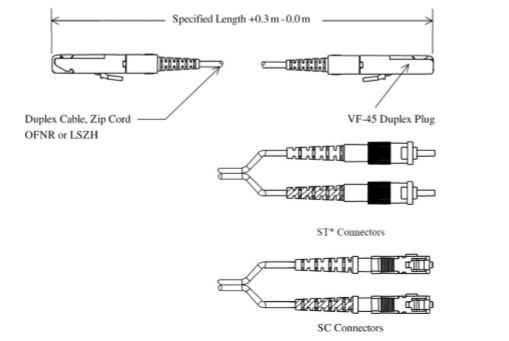

Volition™ VF-45™ Patch Cords:
VF-45 Patch Cords are available in the following combinations:
VF-45 to VF-45
VF-45 to ST
VF-45 to SC

Specifications for Volition VF-45 Patch Cords:

Material	Specification
	Singlemode	Multimode
Connector	Engineering Thermoplastic UL-94 VO
Boot	Engineering Thermoplastic Elastomer
Fiber	9/125um	62.5um/50um Multimode
