Singlemode Multimode 24c Loose Tube Light Armored Cable GYTS Fiber Optic Cable Outdoor Cable

Name: Singlemode Multimode 24c Loose Tube Light Armored Cable GYTS Fiber Optic Cable Outdoor Cable
Brand: all-electronics-online.com
SKU: 794532695
Availability: InStock
Rating: 4.5 (41 reviews)

Price:	Negotiable/Meter
Min Order:	10000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYTS
Application:	Communication
Type:	Multi-mode Fiber
Certification:	ISO9001
Connection Structure:	None
Sheath Material:	PE

Product Description

Our Advantage
1.Free sample, short time delivery.
2.Good quality, competitive price
3.UL, CE ,ROHS,TLC,CCC, CTI,SGS,ISO9001 certificates are available.
4.OEM is available.

Description

Cable Type	GYTS-48
Fiber Count	48
Tubes	8
Fillers	0
Cable Diameter(mm)	9.7
Cable Weight (kg/km)	97
Tensile Strength (Long/Short Term N)	1000/3000
Crush Resistance (Long/Short Term N/100mm)	300/1000
Bending Radius (Static/Dynamic mm)	10D/20D

Characterisics

1.Excellent mechanical and temperature performance.Critical protection to fibers.

2.Excellent ultraviolet prevention with PE sheath.

3.Excellent crush resistance and flexibility.

4.Special tube filling compound ensure a critical protection of fiber.

5.The following measures are taken to ensure the water blocking performance of the cable:

a.FRP used as the central strength member

b.Special water-blocking filling compound in the loose tube

c.100% cable core filling

NOTE

1.Only a part of cables are listed in the table. Cables with other spans can be inquired.

2. Cables can be supplied with a range of single mode or multimode fibers.

3. Specially designed Cable structure is available on request.

Packaging & Shipping

1. Standard Packaging

Rolled by wooden wooden drums. 2000m to 6000m/drum or other required.

2. Sheath mark

The following printing(white hot foil indentatioin)is applied at 1-meter intervals.

a. Supplier: ADP or as cuctomer required

b. Standard Code(Product Type, Fiber Type, Fiber Count)

c. Year of manufacture: xxx

d. Length marking in meters

Pictures of Product

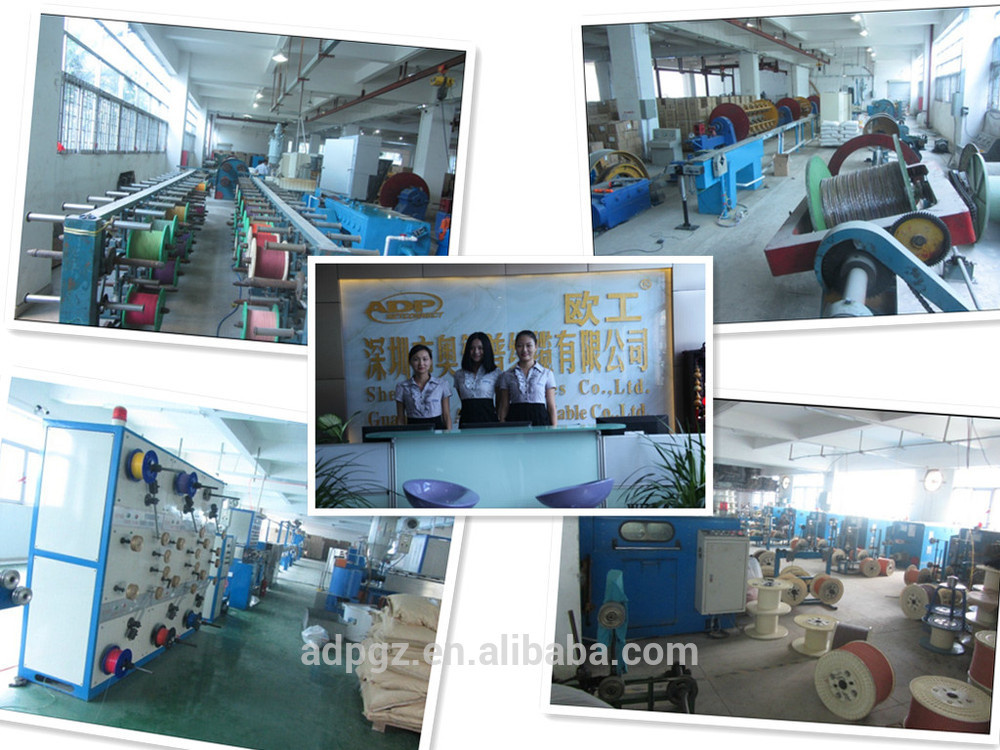

Pictures of ADP factory

Certificates

Shenzhen ADP Cables Co., Ltd. Was established in 2002 and is a professional manufacturer for Fiber Optic Cable, LAN cables, Coaxial cable, Security Alarm Cable.
Fiber Optic Cable indoor and outdoor, fiber pigtails, fiber patch cable; CAT3/CAT5E/CAT6/CAT6A/CAT7 cable, RJ11/RJ45 patch cord; 1pair -200pair Telelphone cable; Coaxail Cable RG6/RG58/RG59/RG11...SYV/SYWV serises...Fire Alarm Cable. And fiber patch cord, connector, accessories.

Our company is equipped with full sets coloring machines fiber ribbon forming machine, secondary coating lines, cabling lines, meshing machines, twisting machines, inspection equipment and instrument for all electrical, mechanical, temperature and environmental performance.

Our products strictly adhere to ISO 9001, CE and RoHS international standards, which also cover our design, development, services, and management. We have more than 100 employees, including 10 technical personnel. Our annual production value researches to USD200, 000, 000, giving us stable development and increased competitive power within the market.

We will continue being a people-oriented and faithful supplier offering technical support and good customer service. For more information, please visit our website or contact us directly with your questions or inquiries.
