Singlemode/Multimode E2000 APC/Upc Fiber Optic Adapter
| Price: |
US $ 0.7-1.2/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
Singlemode/Multimode E2000 SPC/UPC Fiber Adapter |
| Polish Type: |
APC/Upc |
| Insertion Loss: |
Less Than or Equal to 0.2dB |
| Return Loss(APC): |
More Than or Equal to 60dB |
| Operating Temperature: |
-40 ~ 85c |
| Storage Temperature: |
-40 ~ 85c |
| Transmission Medium: |
Single-Mode |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
APC |
| Structure: |
E2000 Fiber Optic Adapter |
| Connector Type: |
E2000 Fiber Optic Adaptor |
Product Description

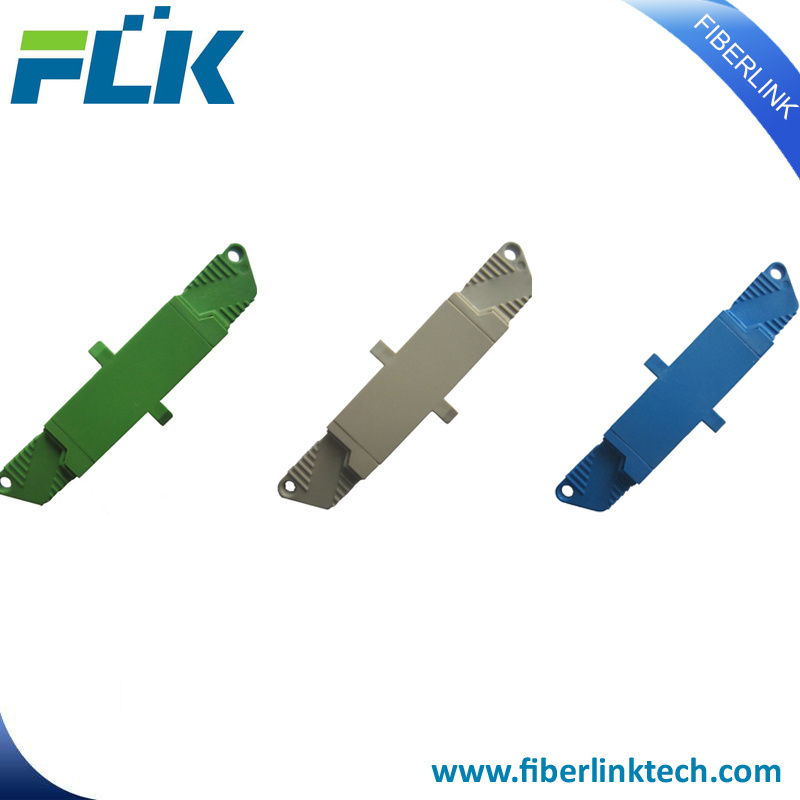

Singlemode/Multimode E2000 APC/UPC Fiber Optic Adapter
Descriptions
We supply the E2000 fiber optic adapters, including the single mode and multimode types, there are UPC and APC adapters available. These E2000 fiber adapters are with ceramic sleeves and in simplex style. E2000 is a trademark of R&M Company.
The E2000/APC Fiber Adapter features injection-molded PBT housing, rated to the UL94V-01 Flammability Index. Spring-loaded shutters protect against dust and scratching. A high quality split ceramic sleeve ensures high performance over 1000 mating cycles. The E2000 fiber optic adapter may be ordered with color coded housing and frames Mechanical coding is available upon request.
Features
Excellent handling at high packing density
Simples, duplex and 8 way types available
Bulkhead adaptor
Self-retentive mechanism enables
Low the ferrules compression force off the back panel
Applications
Fiber optic transmission system
CATV networks
Testing/Measurement Instruments
Fiber distribution frame
Fiber Optic Wall Mount and Rack Mount Cabinets
Technical Data
| Item | Parameter |
| Connector Type | E2000 |
| Fiber Type | Single mode, Simplex |
| Sleeve material | Ceramic |
| Insertion loss | ≤0.2dB |
| Return Loss | ≥45dB |
| Mating Durability | ≤0.2dB typical change, 1000 times |
| Operating Temperature | -40 ~ +75ºC |
| Storage Temperature | -40 ~ +85ºC |

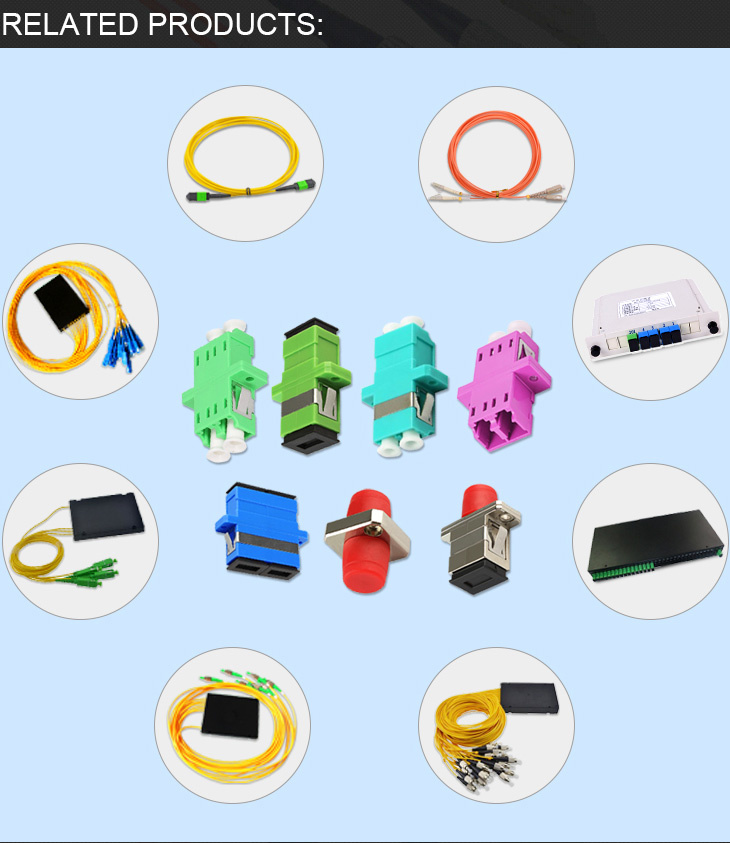

Related products
Our fiber patch cord production line:

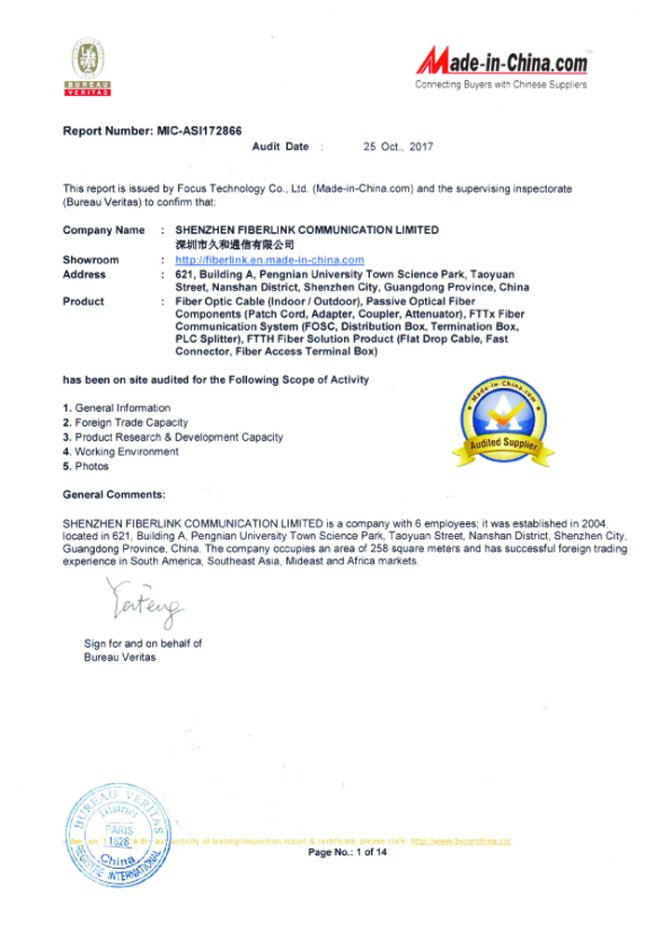

Certifications
Shipping:
Service:
1.Professional manufacturer, 100% tested.
2.Customers solutions in days, not weeks.
3.Warmly services with careful attentions.
4.Can provide your specific inquiry within 24 hours.
5.Save much costs, bring more benefit for customer to expand business.
6.We have been 9 years experience in this field. We are the prefessional supplier that you can trust.
FAQ
Q1:How can you guarantee the delivery time?
A:1. To avoid the delay, we have built a complete and professional procedure system from production to the deliver and have rich experience.
2. We can regulate the penalty clause in the contract for the late delay.
Q2:What's your best price?
A:Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the time.
Q3:What's your MOQ?
A:Low MOQ, 1pc for sample checking is available
Q4:Can I print our own logo on the product?
A:Yes, Please send your logo to us.
Q5:Can you provide OEM/ODM service?
A:Yes, we can. Please tell us the details of your requirements
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q7:Why choose us to cooperate?
1. We have first-class production line and strict quality management system.
2. We have professional procedure system and big production capacity to guarantee fast deliver and on time shipment.
3. We can provide the most competitive price to meet your budget.
4. We also design and innovate the new products based on our rich experience .
5. We have professional team to provide comprehensive one-stop service for you.
How to Contact with me
Hope this would be a good start for our cooperation!
Our company supplies high-performance fiber optic communication system products with high quality and favorable price. Our main products are Fiber optic cable, Fiber patch cord, Fiber adapter, Fiber attenuator, FBT Coupler, PLC splitter, Fiber patch panel, Fiber termination box, Fiber distribution box, Fiber optic splice closure, MPO system and FTTH solution products, etc. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
Interconnect Products Division: Develops and manufactures fiber optic components for a diverse range of applications. The division's products include Fiber optic connectors, patch cords andadapters, attenuators, couplers, PLC splitters, circulators, and isolators.
Solution Products Division: Known for providing Fiber Optic Communication Solution in the world, the Solution Products division focused on fiber accessories and systems, such as Fiber patch panel, Fiber termination box, Fiber distribution enclosure, Fiber optic splice closure, MPO system andFTTH solution products, etc.
OEM Products Division: OEM Products division provides OEM services to our clients by not only complete customers' requirements but also give active suggestions to improve the products' performance and quality. This division's main mission is to help customers stay competitive by constant innovation service.
