Singlemode Multimode LC Sc Fiber Optic Loopback

Singlemode Multimode LC Sc Fiber Optic Loopback
Price: US $ 2.58/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: Fiber Optic Loopback
Sheath Material: PVC, LSZH, Ofnp, PE
Fiber Mode: Single Mode or Multi-Mode
Operating Temperature: -40°c~+80°c
Cable Diameter: 2.0mm, 3.0mm
Cable Od(mm): 2.0/3.0mm
Ome: Support
ODM: Support
Transmission Medium: Single-Mode
Structure: SC
Number Of Cores: Multi-Core
Ferrule Endface: APC

Product Description

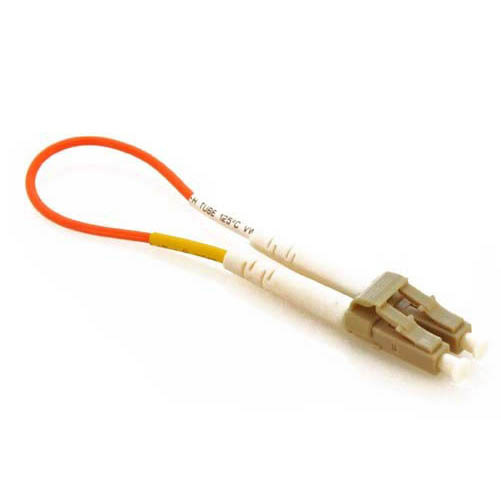

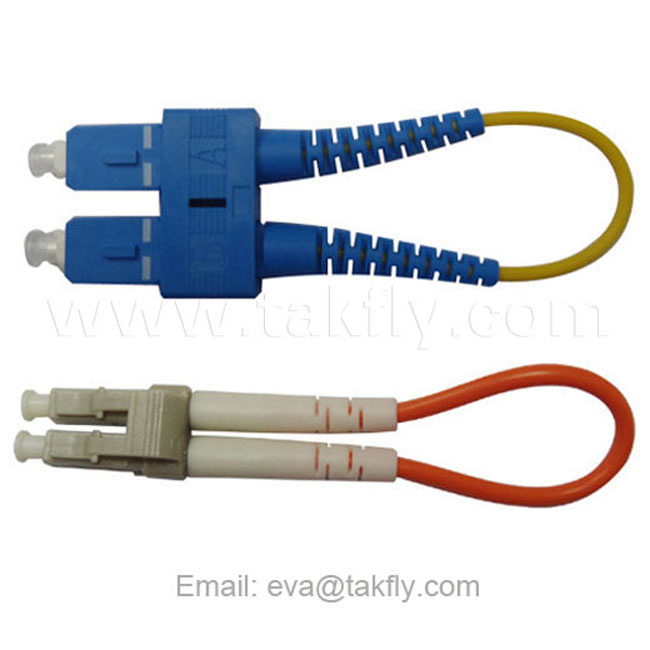

Singlemode Multimode LC SC Fiber Optic Loopback


Description:
Fiber loopback assemblies provide you with a looped signal from the source device to hardware for testing purposes. This allows for a signal check for both the transmit and receive functions.


Features:
Used in testing applications
100% functionally tested

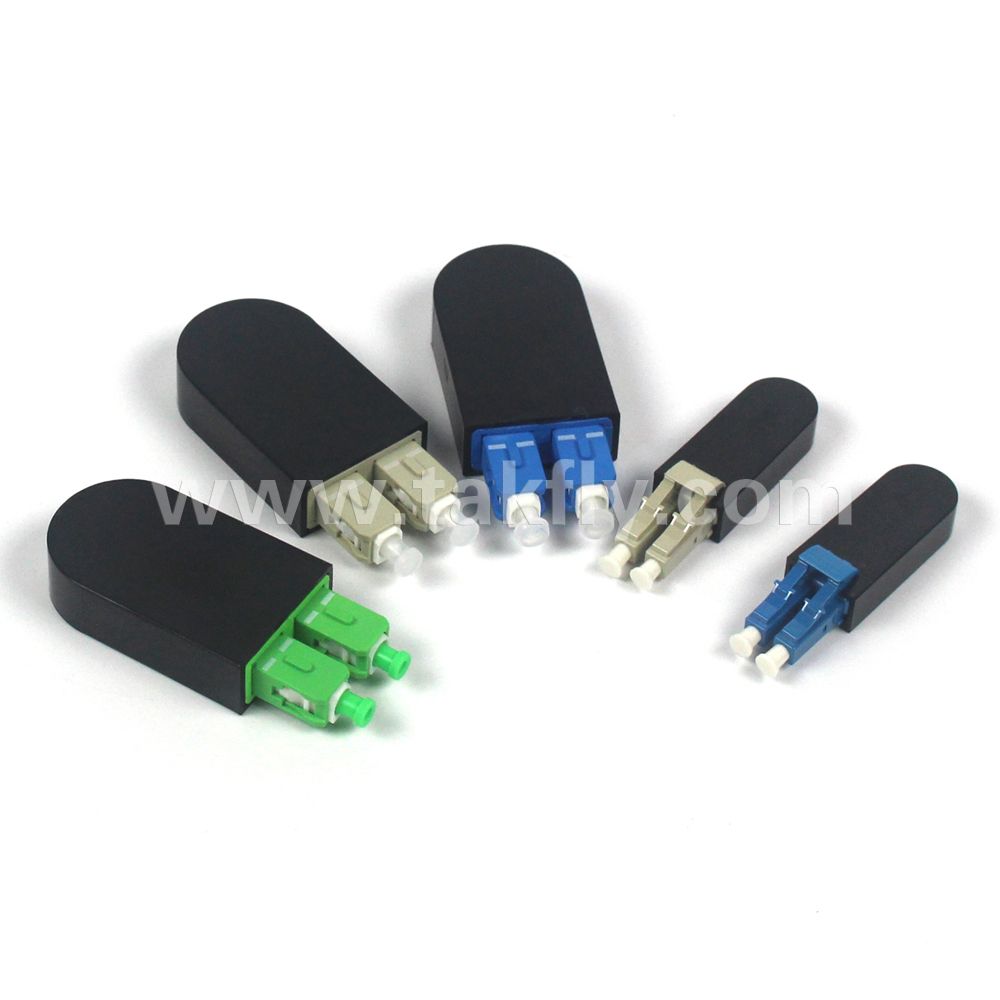

Available in various connector types
SC/LC duplex clip is available for insertion accuracy
8 inches standard length
Custom length also available upon request


Applications:
Equipment Interconnection
Device Pig-tailing
Premise Networks
Patch Panel Applications
Communications Connections


Specifications:
Connector Types: SC, LC, MU, MTRJ
Polish Types: PC, UPC, APC
Insertion Loss (Typical): 0.15 dB MTRJ: 0.30 dB
Insertion Loss (Maximum): 0.30 dB MTRJ: 0.50 dB
Durability: < 0.2dB (500 cycles)
Operational Temperature: -20C to +70C


Specifications:
ItemUnitParameter
Operating WavelengthNm1310/1550
Attenuation RangedB1-10dB(1dB step), 15, 20, 25, 30dB
Return LossdBPC:≥50    UPC: ≥55   APC: ≥60
Attenuation TolerancedB≤1.0 (11-30dB)
Working TemperaturedegC-25C~+75C
Storage TemperaturedegC-40C~+ 85C














Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.

The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.

Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
