| Prod Model: |
D4 Fiber Optic patch cord |
| Operation Time: |
About 60s(No Fiber Cut) |
| Insert Loss: |
<0.2 dB |
| Return Loss: |
> 60dB |
| Fiber Type: |
OS1,OS2,Om1,Om2,Om3,Om4 |
| Cable Outer Diameter: |
0.9mm,1.6mm,1.8mm,2.0mm,2.4mm,2.8mm,3.0mm |
| Tensile Strength: |
>50n |
| Color: |
Various |
| Ferrule Endface: |
D4(PC/APC) |
| Polishing: |
PC,Upc,APC |
| Operation Environment: |
- 40° C to + 85° C |
| Application: |
Fiber Distribution Frame |
| Type: |
Single-mode Fiber |
| Certification: |
CCC |
| Connection Structure: |
D4 |
| Sheath Material: |
PVC,LSZH,Ofnp,Ofnr |
Product Description

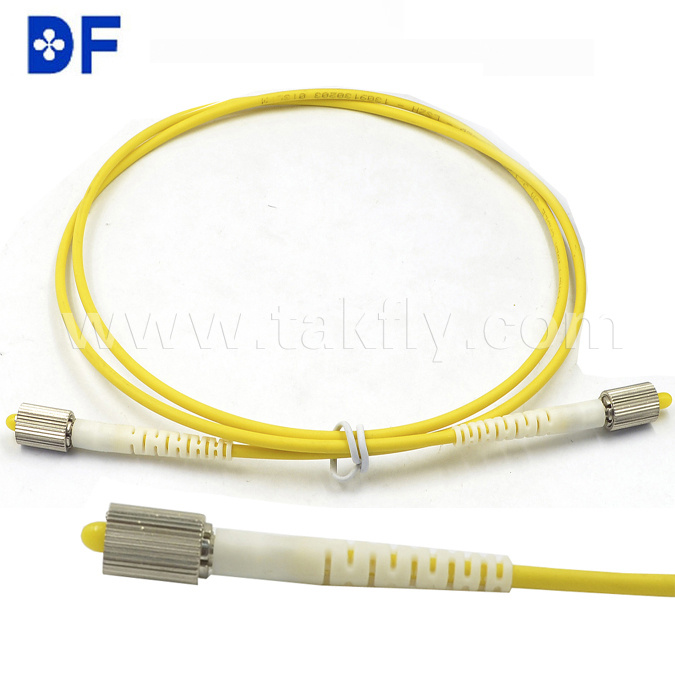

Singlemode/Multimode PC/Upc/APC D4 Fiber Optic for FTTH
Specifications:
Fiber optic attenuator:
1)High attenuation precision
2)Good environmental stability
3)3 years' gold supplier and 7 years' factory experience
Application:
* CATV
* Active device termination
* Telecommunication networks
* Metro
* Local Area Networks (LANs)
* Data processing networks
* Test equipment
* Premise installation
* Wide Area Networks(WANs)
Features:
* Low insertion loss and back reflection loss
* Ferrule end surface predomed
* Precision anti-rotation key and corrosion resistant body
* UL-rated plastic housing
* Boots in a variety of colors
* Telcordia style boots
* Free-floating ceramic ferrule
Standards:
All components and final producs are designed and tested to conform the requirement of IEC 60874-7, CECC 86115-801, Bellcore/Telcordia GR-326, EIA/TIA 604-3A, EIA/TIA 568, ISO/IEC 11801, Belcore/Telcordia GR-409-CORE, IEC 793, IEC 794-1-E1, IEC 794-1-E3, UL 1666/901 and EIA/TIA 455
Availability:
1. The connector can be supplied as a pre-assembled one-piece connector or as connector kit.
2. Clips are available for duplex connectors
3. Housing kits without ferrule are available.
| | Singemode(UPC) | Singemode(APC) | Multimode |
| Insertion loss | ≤ 0.2db | ≤ 0.2db | ≤ 0.25db |
| Return loss | ≥55db | ≥65db | ≥30db |
| Durability | ≤ 0.2db typical change, 1000 times mating |
| Operating Temperature | -45 to +85 degree |
| Ferrule Hole Sizes | 125.0+1/-0um, Concertricity: ≤1.0um | 125.0+1/-0um, Concertricity: ≤0.5um | 125.0um, Concertricity: ≤3.0um |
| 125.3+1/-0um, Concertricity: ≤1.0um | 125.3+1/-0um, Concertricity: ≤0.5um | 127.0um, Concertricity: ≤3.0um |
| 125.5+1/-0um, Concertricity: ≤1.0um | 125.5+1/-0um, Concertricity: ≤0.5um | 128.0um, Concertricity: ≤3.0um |
| 126.0+1/-0um, Concertricity: ≤1.0um | 126.0+1/-0um, Concertricity: ≤0.5um | |
