| Prod Model: |
XWM-1026 |
| Custom Service: |
Available |
| Overlay Material: |
F200 |
| Rear Adhesive: |
3m9448 |
| Emboss Type: |
Pillow Embossing |
| Tail: |
10 Way Zif Connector |
| Waterproof: |
IP65 |
| Type: |
Flexible |
| Material: |
PET |
| Application: |
Telecommunication Equipment |
| Structure: |
Overlay + Pet Circuit + Adhevise |
| Detection Method: |
Electrical Test |
| Brand: |
Singway |

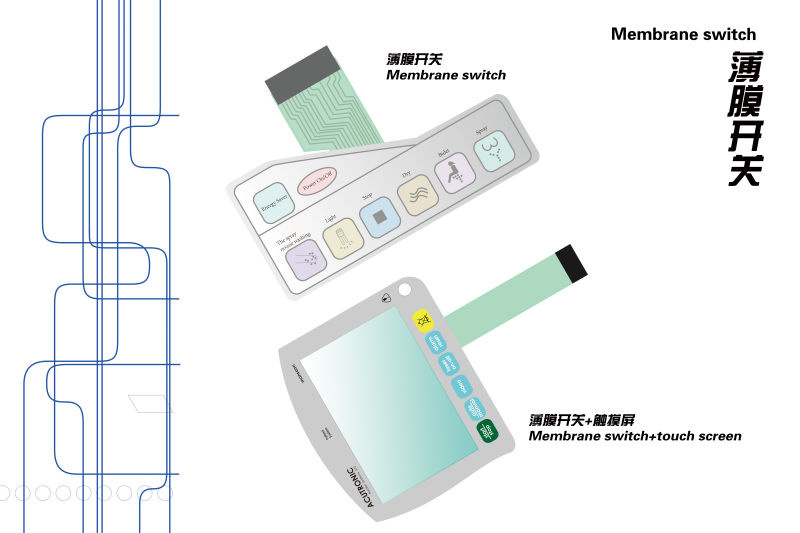

Product Description
Advantages:
1. Beautiful appearance, rich and bright in color, design can be arbitrary, the products can fully reflect the individual style of the product itself and designer.
2. Panel can wash, good protection of durable color, characters, logos and other panel contents without injury.
3. Small size, light weight, thin thickness, good tactility, abrasion resistant, installation and connection convenience.
4. Tightness is good, moisture-proof, dust-proof, waterproof, anti-oil, anti-corrosion and erosion of harmful gases proof, acid and alkali proof, quakeproof.
5. Low cost, high lifespan, membrane switchs design and manufacture are using the keyboard as a whole way, whether on the material or mold charges, the costs are lowest, the life expectancy of different types of membrane switch is more than 100 million times.
6. Easy to operate, intuitive, safe and reliable, In-house 100% functionally tested, components are guaranteed without any intermittent problem.
7. Customized specification is available and keys can make different shapes.
Technical Parameters
1.Electrical
| Maximun Circuit Rating: | 35V(DC),100mA,1W |
| Contavt Resistance: | 10Ω~ 500Ω |
| Insulation Resistance: | 100MΩ 100V |
| Dielectric: | 250VRms(50~60Hz 1min) |
| Contact Bounce: | < 5ms |
Life Expectancy: | Flat: ≥ 5million times |
| Tactile: ≥ 1 million times |
| Dura switch: ≥ 10million times |
2.Mechanical
| Actuation Force: | Flat:57~284g(2~10oz)
Tactile: 170~397g(6~14oz) |
Switch Strok:
| Flat: 0.1~0.5mm
Tactile: 0.6~1.5mm |
3.Environment
| Operation Temperature: | -40~+80 |
| Storage Temperature: | -40~+80 |
| Humidity: | 40,90%~95%,240hours |
| Vibration: | 20G,max.(10~200Hz,Mil-SLD-202,M204.Condition B) |
Common Applications
POS terminals
Financial - ATM & Bill Pay Kiosks
Factory Automation
Industrial Control
Medical Equipment
Retail Kiosks
Auto Industry
Item Details:
1,All manufacturing processes confirm to the ISO-9001/TS16949 standards
2, RoHS directive compliant green products "lead free initiative"
3, Smooth and good touch feelingLead time:
Lead time:
★Lead-time for our company to create and submit counter-drawings + artwork for your approval:2-3 work days
★Lead-time for our company to build tooling and ship the 5 samples for your approval:10 days
★Lead-time for you have approved the 5 samples:2-3 weeks
Packaging Details:
1) Wrap in air bubble film
2) Put into foam box
3) Packed with extra carton box, which make sure the goods safety in transportation.
4) We accepted Customized package.
Shipping Details:
1) Can Ship by express such as DHL, FEDEX, EMS, TNT, UPS, or by Sea, by air, it's depends on your
requirement.(The express shipping time is about 3 to 7 working days.)
2) The tracking number will be informed after 1 day the package delivered.
3) We will follow the shipment after we sent it. If you not receive goods on time, please contact us immediately, we will assist to get the goods smoothly.
Payment terms:
1.First 3 dealings: payment term is Cash On Delivery(C.O.D.), we accept Bank T/T for payment.
2.After the first 3 dealings: payment term is 30 days.
Our Service
1.Your email will be replied within 24 hours during the working time.
2. Whenever, we are pleased to get your order and any relevant requests.
3. Ensure the products meet the quality standards.
4. Ensure the goods will be delivered on time.
5.Your own label,we could use your label,with your company name and details.
6. Provide warm and friendly service and after-sale service.
7. About the warranty, if you have any problem about the goods after received it, you can tell us on time. We will make sure to give you a satisfactory solution.
8. For more details and latest price, please feel free to contact us.
If you need this product, Please contact me by email.
Best wishes!
Dongguan Singway Electronic Technology Co., Ltd. Was established in September 2011, a set of research and development, manufacturing, sales and service as one of the high-tech enterprises, adjacent to the beautiful scenery of the Dongguan Songshan Lake Science and Technology Industrial Park, plant construction area of about 7000 square meters, the company has a high-quality professional management and R & D team, management and engineering and technical personnel account for 40%, with advanced and system, the value of the touch screen technology and solutions provider.
Dongguan Singway Electronic Technology Co., Ltd. is a professional R & D, manufacturing Touch Panel ITO (touch screen) manufacturers. Has the introduction of the United States, Japan, Taiwan and the domestic production, testing, laboratory equipment. Mainly to provide pre installed and post navigation, security, industrial control, smart home, medical equipment and other special touch screen. The monthly output is 400K/PCS, and has gradually become the outstanding supplier of many large enterprises. Dongguan Xing Electronic Technology Co., Ltd. Adhering to the "product quality first, market-oriented, customer value maximization" for the business philosophy; "thinking, conservation, implementation of the" management philosophy; "quality of service first, to maximize meet customers all reasonable demand" for the service concept. Relying on excellent technology and sophisticated equipment, and continued to establish a perfect quality, environment, safety and health management system, to promote the company's overall management of continuous improvement and continuous improvement. Has passed ISO9001/TS16949 quality management system, ISO14001 environmental management system, OHSAS18001 occupational health and safety management system, QC080000 hazardous substance process management system certification.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
