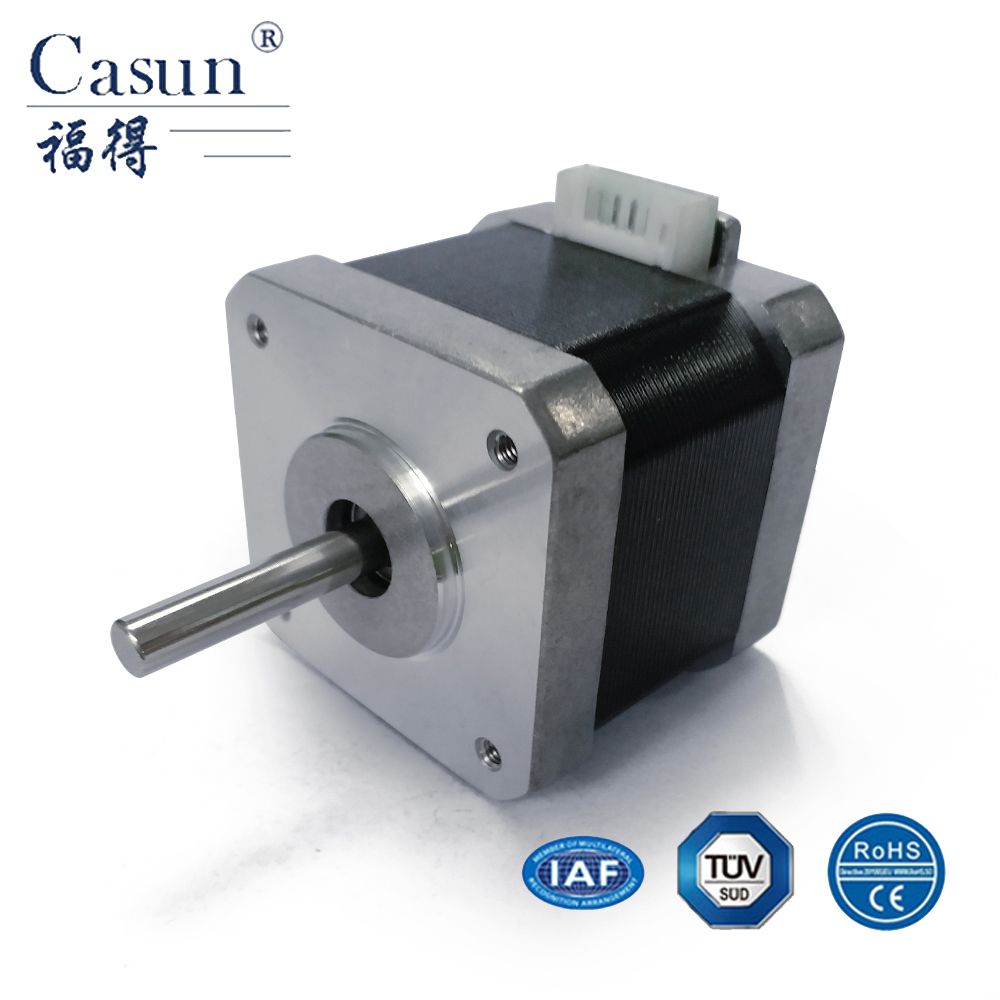

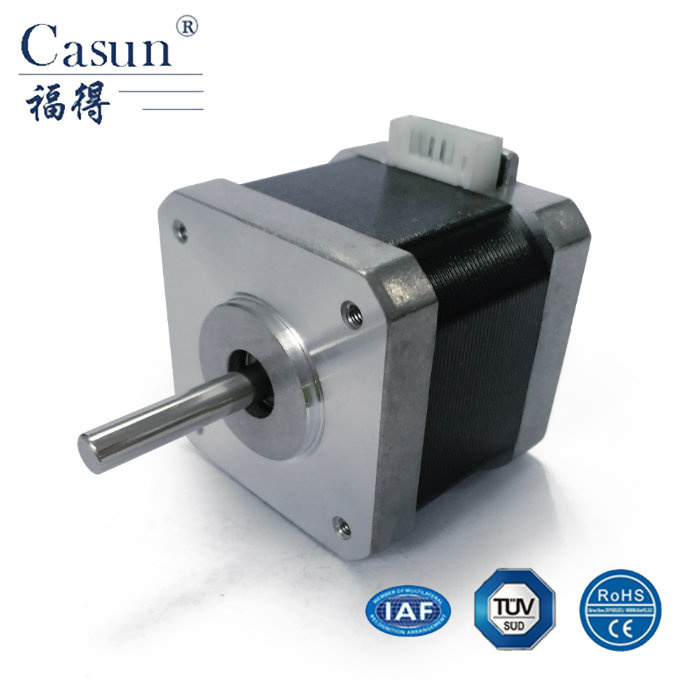

Size NEMA 17 Hybrid 1.2 Degree Stepper Motor (42SHC0204-24)
| Price: |
US $ 6.3-7.5/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
42SHC0204-24 |
| Step Angle: |
1.2 Degree |
| Number Of Phase: |
3 |
| Rated Valtage: |
8.4V |
| Rated Current: |
1.2A |
| Motor Length: |
40mm |
| Holding Torque: |
300mn.M |
| Rotor Inertia: |
57g.Cm2 |
| Number Of Wire: |
6 |
| Weight: |
0.24kg |
| OEM & ODM: |
Accepted |
| Number Of Stator: |
Three-Phase |
| Excitation Mode: |
HB-Hybrid |
| Operate Mode: |
Three-Phase Six-Step |
| Type: |
Electromechanical |
| Number Of Poles: |
Three Phase |
| Certification: |
Ce &RoHS &TUV |
| Brand: |
Casun |
Product Description
Fude Manufacture is the super V.I.P GOLDEN SUPPLIER for stepper motor1) Over 10000+ designs2) Over 1000+ designs for 20183) Small order acceptSize Nema 17 hybrid 1.2 degree stepper motor (42SHC0204-24)---------------------------------------------------------------------------------------Product information 1) Raw materials: tested by professional precise equipment.2) 3 inspection lines3) 1 year gurantee + famous chain customers| HYBRID STEPPING MOTOR 42SHC0204-24 Casun |
| General Specification | Electrical Specification |
| Step Angle | 1.2° | Rated Voltage | 8.4V |
| Number of Phase | 3 | Rated Current | 1.2A |
| Insulation Resistance | 100MΩmin. (500V DC) | Resistance per phase | 7.0Ω±10% |
| Insulation Class | Class B | Inductance per Phase | 6.mH±20% |
| Rotor Inertia | 57g.cm² | Holding torque | 300mN.m |
| Mass | 0.24kg | Detent torque | 15mN.m |

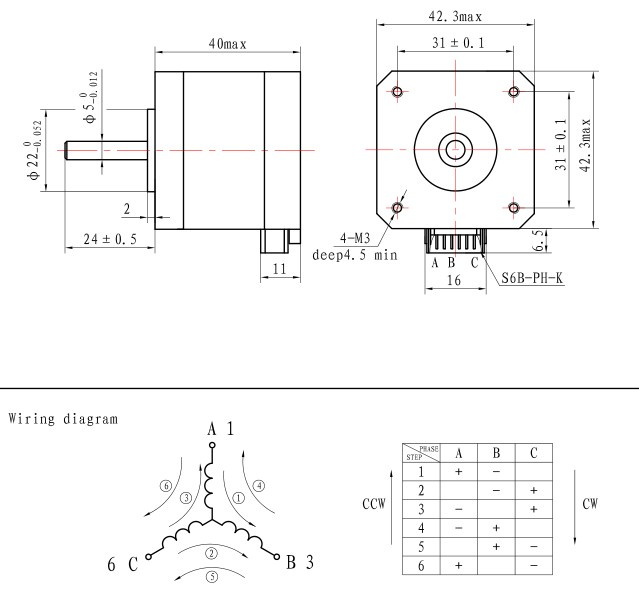

Figure Dimensions Unit:mm
 |
---------------------------------------------------------------------------------------More Specification| Modle | Holding Torque | Rated Current | Resistance per phase | Inductance per phase | Detent
Torque | Rotor inertia | Wiring diagram | Motor Length |
| mN.m | A | Ω | mH | mN.m | g.cm² | NO. | mm |
| 42SHD0201 | 300 | 0.8 | 14 | 14 | 15 | 57 | Y | 40 |
| 57SHD0204 | 300 | 1.2 | 7.0 | 6.8 | 15 | 57 | Y | 40 |
Above is our partial products parameter, for more products pls contact us. OEM &ODM are welcomed.---------------------------------------------------------------------------------------Package Details1) Carton box with foam inside.2) Can be customized.
---------------------------------------------------------------------------------------Working Process1) First, Fabricate the Product;2) Second, Assemble the Component;3) Third, Testing the Motor;4) Fourth, Quality Inspection.
---------------------------------------------------------------------------------------Company InformationGuangzhou Fude Electronic Technology Co.,Ltd1) Our Core Competencies are Hybrid stepper motor, PM stepper motor, Hybrid linear stepper motor And Closed Loop stepper motor;2) Our Nich Market are North & South Amercia, Europe and Asia;3) Our value Message is with us your money in safe your business in safe;4) Quality is the soul of our enterprise, Certificated by CE, RoHs, TUV.
---------------------------------------------------------------------------------------Why Choose Us?1) Competitive Advantage Products;2) CE, RoHs, ISO9001, TUV Rheinland Certification report;3) OEM &ODM are welcomed, we have our own R &D members team;4) <1% Defect rate and 1 year guarantee;5) FREE Sample OFFER &SMALL order welcomed;6) Payment by PAYPAL;7) Confidentiality Aagreement "Business Secret CONTRACT" Welcome Contact Us!!| Contact Person | Sarah Mai |
| Email | [email protected] |
| Mob | +0086 18218393143 |
| Address | No.2, Xiaoshima Commercial Street, Shima Village, Baiyun District, Guangdong PR |
Guangzhou Fude Electronic Technology Co., Ltd, has over 10 Years Manufacturing Experiences. It is a manufacture of stepper motors with well-equipped testing equipment and strong technical force.
It is located in Baiyun district, Guangzhou city with more than 7000 square meters.
Quality is our culture. Our manufacture gains a good reputation with good management mechanism, advanced technology, strong force of R&D, excellent quality and perfect after-sales services. There are many departments in our company including R&D Dept., Engineering Dept., Production Dept., Marketing Dept., After-sales services Dept. And Personnel Dept.
To meet market developments and customers' needs, our company will continue to improve the product structure, operational management, as well as comprehensive quality of the staff. With brand-new products, vigorous power and stable paces, we will work hand-in-hand with customers home and abroad to create brilliant future!
Our Core Competencies are Hybrid stepper motor, Reduction Gearbox Stepper Motor, Linear stepper motor, Stepper Motor Driver!
Our value Message is with us your money in safe your business in safe!
Please dont hesitate to contact us to get more details, we are waiting for you!
