SKD1-B80/4p Surge Protective Device (SPD)

Name: SKD1-B80/4p Surge Protective Device (SPD)
Brand: all-electronics-online.com
SKU: 672873331
Availability: InStock
Rating: 4.7 (35 reviews)

Price:	US $ 1-10/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	SKD1-B80/4P
Markets:	South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
SPD:	80A
Poles:	4
Corresponding Experimental Type:	1
Lightening Protection Level:	Class B
Suitable Power Supply System:	Tn-S.Tn-C-S.Tt.It AC50/60Hz 420V and Below
Hot-Swappable:	Yes
Output Type:	Quad
Output Power:	1 - 50W
Input Voltage:	380V
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Warranty:	18 Monthes

Product Description

Product Description --SKD SERIES
1. Basic Specification:

Technical Parameter Model

SKD1-D10

SKD1-D20

SKD1-C30

SKD1-C40

N-PE

SKD1-B60

SKD1-B80

SKD2-60

SKD2-80

SKD2-100

SKD3-100

SKD3-120

SKD3-150

Maximum Continuous Operating Voltage Uc(V~)

420

255

420

Voltage Protection Level Up(V~)Kv

≤0.7≤1.0

≤1.2≤1.5

≤1.5/<1.8

<1.8/2.0

≤1.5

≤2.2

≤2.5

≤2.2

≤2.5

≤3.0

≤2.5/3.0/3.2/3.5

Nominal Discharge Current In(8/20μs)

5KA

10KA

15KA

20KA

limp

30KA

40KA

30KA

40KA

60KA

80KA

100KA

Maximum Discharge Current Imax(8/20μs)

10KA

20KA

30KA

40KA

12.5KA

60KA

80KA

60KA

80KA

100KA

120KA

150KA

Respomse Time ns

<25

Test standard

GB18802/IEC61643-1

L/N The Cross Section of L/N line

6mm²

10,16mm²

16,25mm²

25/35mm²

PE the cross section of PE line

10mm²

10,25mm²

25mm²

25,35mm²

35mm²

Fuse or switch(A)

10A,16A

16A,25A

32A

63A

63,125A

Operating Environment ºC

-40ºC~+85ºC

Relative Humidity (25ºC)

95%

≤95%

Installation

standard Rail 35mm

Material of outer Covering

Fiberglass

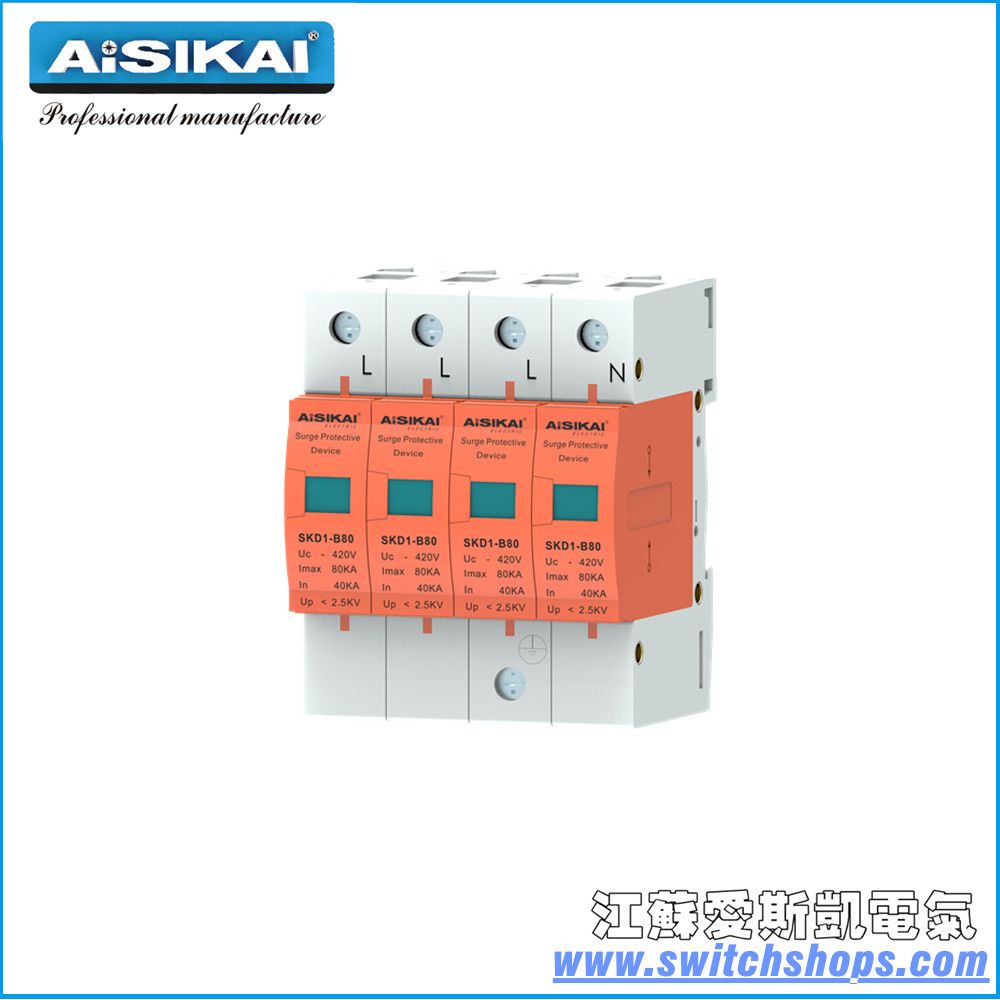

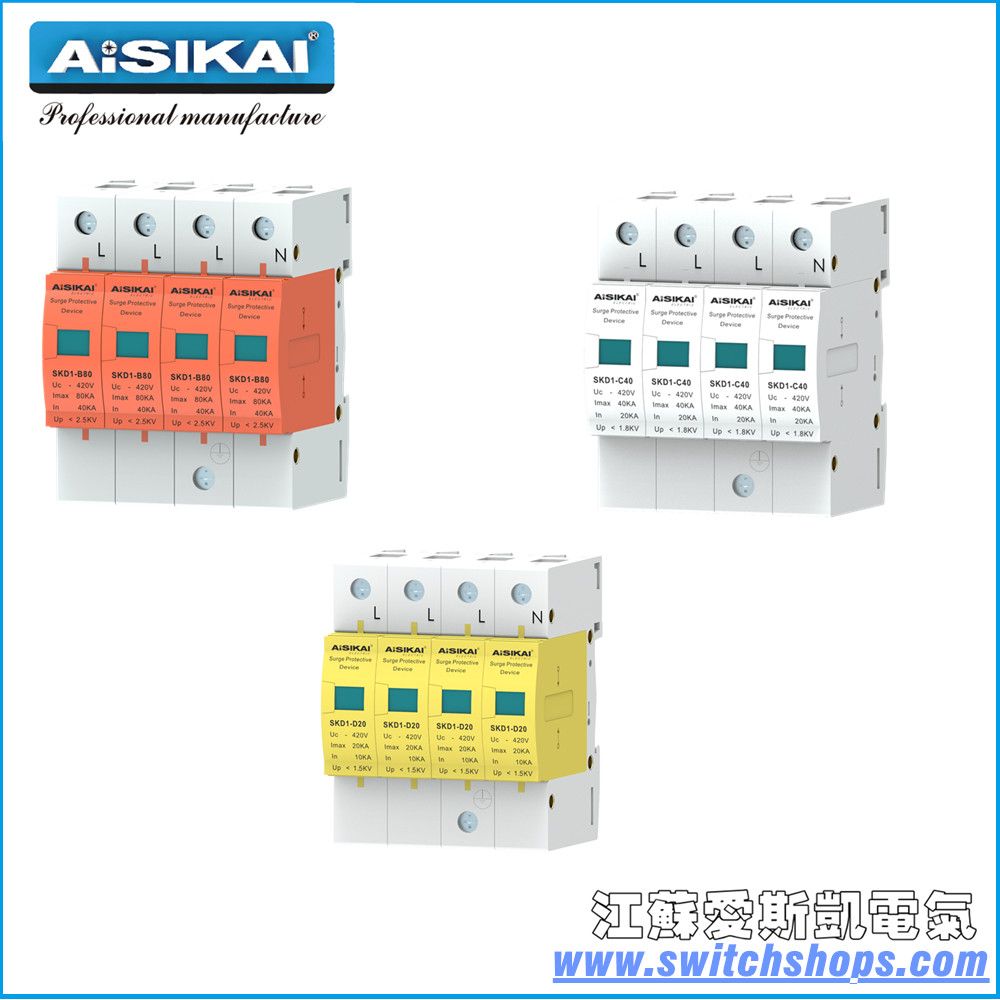

2. Product Pictures:

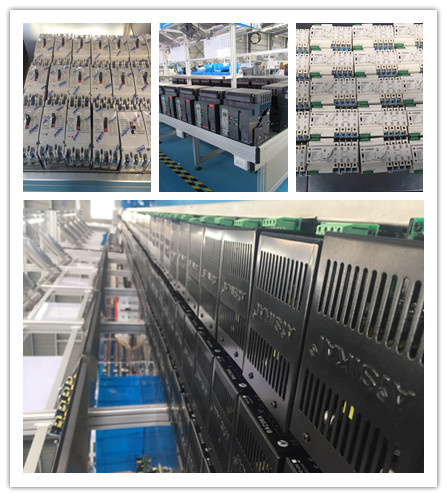

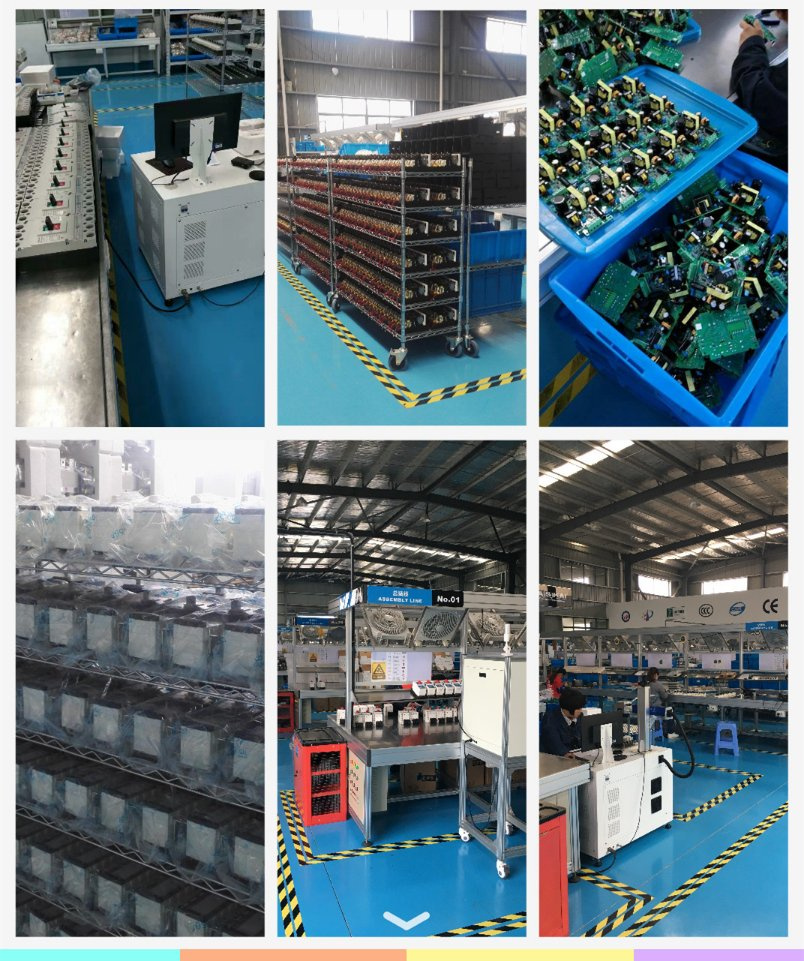

3. Production line:

Automatic Transfer Switch 3p/4p

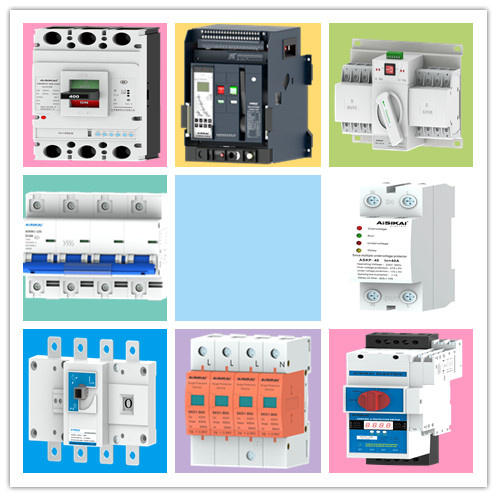

4. More products pictures

5. Other your products series:
ACB/ MCCB/MCB/ELCB/ATS-CB grade/LIS/VPS/CPS/SPD/IPM/BAC/Switch box.etc.
Automatic Transfer Switch 3p/4p

6.Q&A:
1) Q:Why your company ?
     A: Aisikai is a professional manufacturer , we have our own product lines to control the quality and goods are following
      international standards, IE, CE, ISO9001 etc.
2)   Q:   Your address ?
      A:    Locates in  No.5 Chengji Industrial Town,YiZheng City, JiangSu Province
3) Q: What's the ATS guarantee?
       A: 2 years warranty. If customer's problem, then customer burden. If our problem, then we send new goods to
  customer to replace asap.
4) Q: What's about MOQ? Delivery time ?
       A: 1pcs for ATS. Normally less than 1000A ATS with stock, quick support.
6) Q: What's the payment term?
       A: Normally 100% T/T in advanced payment. If big order then about 50% advanced payment, balance before shipment
   and also can accept LC
7) Q: Which port of loading ?
A: Shanghai Port
8) Q: Website?

A: Website: www.switchshops.com , welcome to contact us anytime.

Jiangsu Aisikai Electric Co., Ltd is located in Yangzhou, the city which is famous for pleasant sceneries and rich inside information where ancient civilization and modern culture enhance each other's beauty.

Since the foundation of Aisikai Electric Co., Ltd in 2007, it has endeavored to research, manufacture and develop top quality low voltage electric switch.All the products has passed through authentications of ISO9001 quality management system, .CCC ( China Compulsory Certification) and CE(CONFORMITE EUROPEENNE).Our products own two patents with proprietary intellectual property rights.Our products are not only recognized by domestic customers but also be trusted by foreign customers.Our trade mark Aisikai has been registered in the trade mark department of China State Industry & Commerce Administration Bureau.We have our own laboratory station and we have ability to make load-bearing delivery test.All these are benefited from increasing our deep sci-tech cooperation with domestic high colleges and perfecting strength of technical development.
