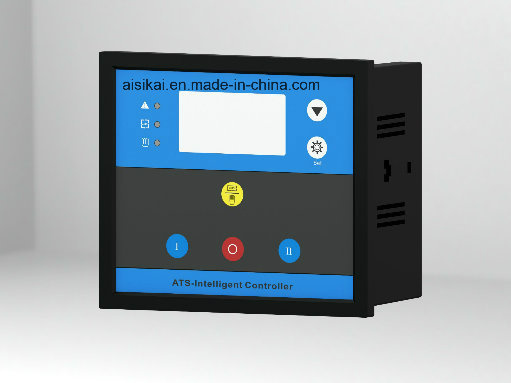

Skr2-B Low Voltage ATS Controller with Light

Name: Skr2-B Low Voltage ATS Controller with Light
Brand: all-electronics-online.com
SKU: 767087955
Availability: InStock
Rating: 4.3 (126 reviews)

Price:	US $ 50-100/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	SKR2-B
Markets:	Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Controller:	Aisikai
Model:	Control panel
Voltage:	220V
Control Type:	Mechanical
Material:	Steel
Control Method:	Electronic Type
Usage:	Controller
Type:	Controller
Operating Principle:	Control Panel

Product Description

FEATURES
Micro-processor based design;
Meter two 3-phase AC Voltages;
Configurable priority of supply Able to Set I# supply priority or II# supply priority or NONE supply

Priority;
Set AUTO or MANUAL via PUSHBOTTON mounted on the front panel;
Two isolable N designed;
6 LEDs display the status;
Operational timers can be altered by the customer;
Control generator to Start;

SPECIFICATION
AC supply: 180 to 260 V (50/60Hz) 1.5VA
Under voltage: 265± 5 V, Under voltage: 172± 5 V.
3-phase AC input: 0 to 460V 50Hz(3 phase)
Relay output:
Relay of close O&I&II: 3A 230VAC
Relay of start genset: 7A 230VAC(Normal Closed, volts free)
Delay timers:
Normal delay time: 1~60s
Abnormal delay time: 1~60s
Start generator time: 1~60s(after road I is abnormal)
Stop generator time: 1~60s(after road I is normal)
Operating Temperature Range: -30 to +70° C
