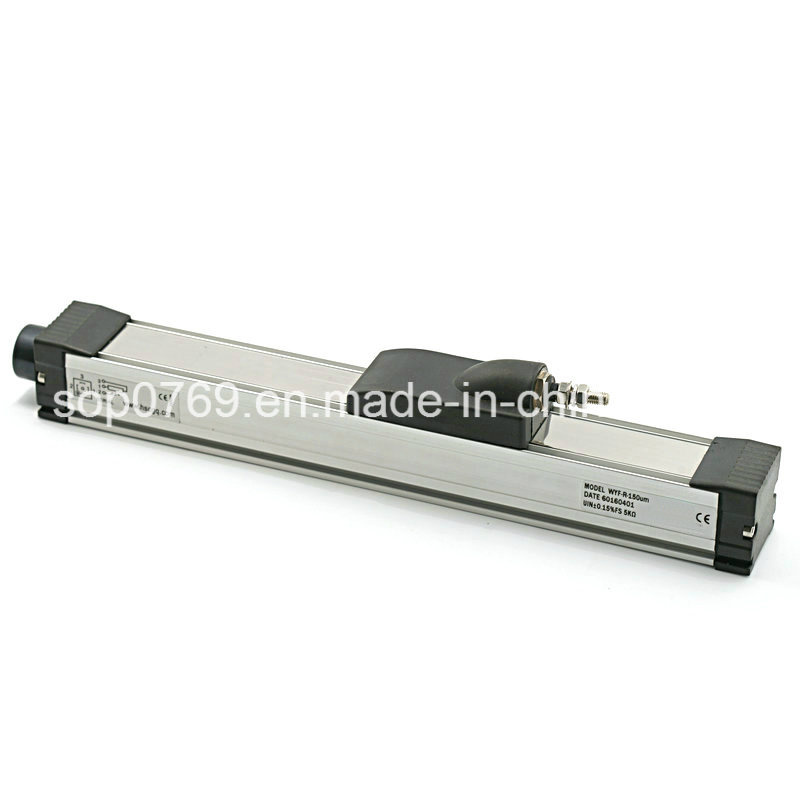

Slide Electric Conduction Plastic Film Displacement Sensor

Product Description

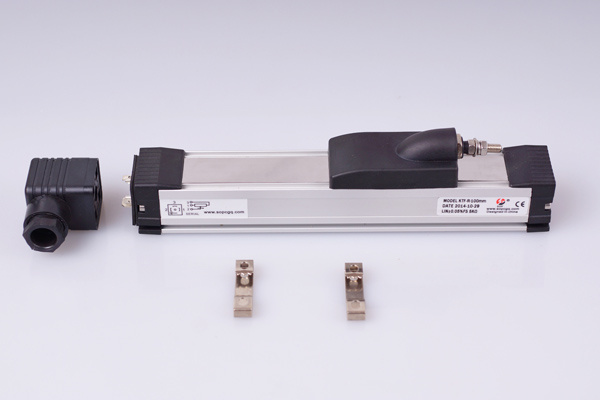

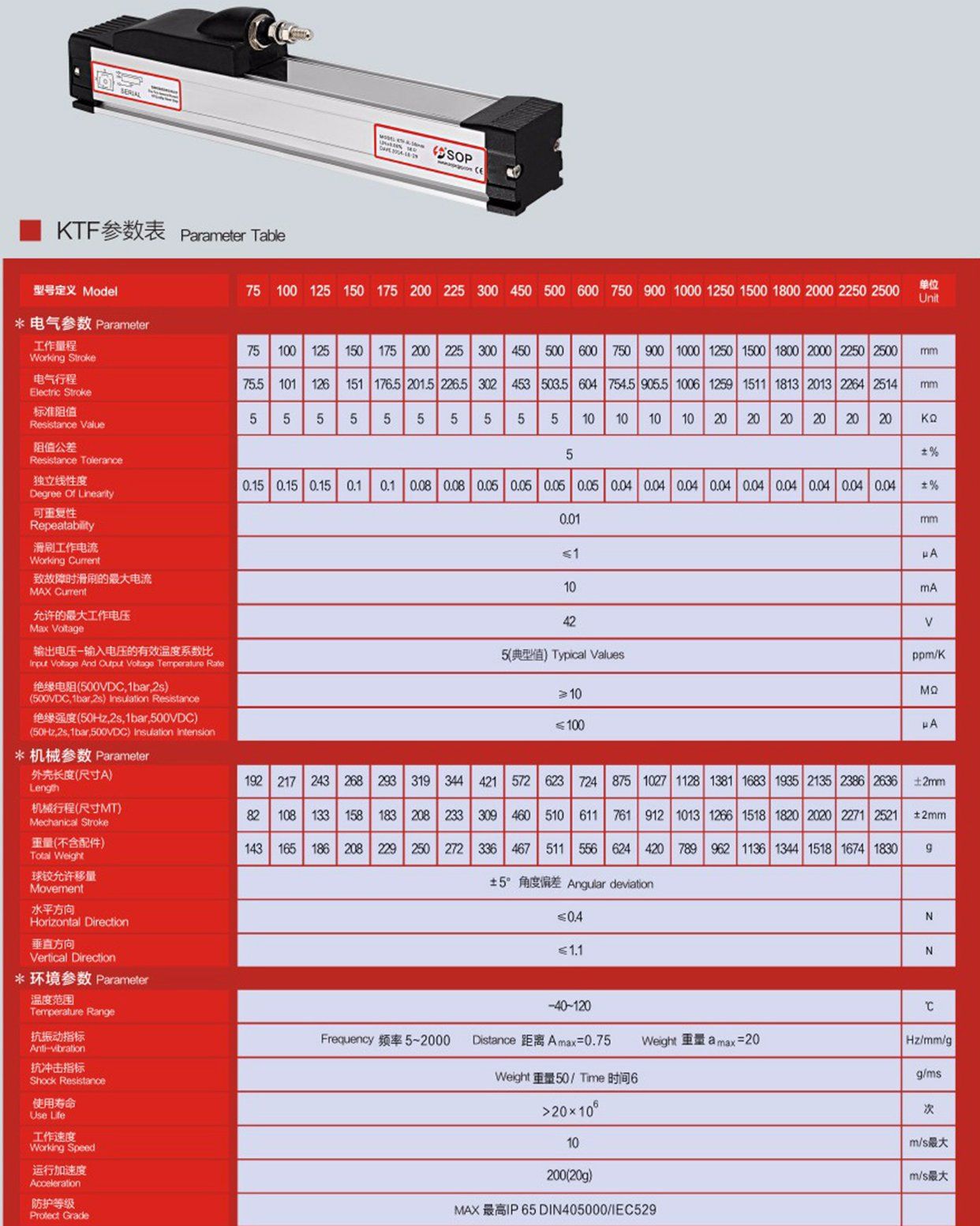

 KTF slider series linear position sensors are common KTF slider electric conduction plastic film series, the effective stroke 75mm ~ 2500mm, both ends 4mm buffer stroke, precision 0.15% ~ 0.04% FS. Shell surface, anodizing, corrosion resistant; built-in conductive plastic measuring unit, no temperature drift, long life; with automatic electrical grounding function. Sealing rating of IP65 (when installed down to IP57), DIN43650 standard plugs and sockets, can be applied in the most common occasions, especially in the longitudinal direction is restricted, the more difficult for the occasion; rod with ball head has a 10mm automatic correction function, It allows the limit velocity 10m / s.

KTF Product  feature:

1. No pole design
2. Spherical
3. Usage life is longer, Times could reach fifty million
4. Non-linearity smaller
5. Resolution rate is higher than 0.01mm
6. High speed
7. Din43650 standard plug and socket
8. Protection grate is ip65(install down is ip57)
9. Could equip with voltage and current (2line, 3line) module

Displacement sensor Advantage

*Absolute encoder, multi-output.
* Compact structure and light
* Straight line measurement, easy to install.
* Anti-dust, anti-vibration, durable.
* Groove for cable, each circle trip is the same, high repetition accuracy.
* Multi-strand soft stainless steel rope, corrosion-resistant type.
* Economic and practical.

KTF is a versatile slider linear displacement-free design, particularly adapted to reduce mechanical installation dimensions of length, suitable for application of larger stroke

Pakage:

Packing with standard carton
Are your company a Professional manufacturer?
Yes, we are a factory with 13 years' custom production.
What's your company warranty policy?
After-sale Service
Experienced suggestion for sensor installation and use.
12 months warranty. Long-term technical support.
Our warranty doesn't include misusing and man-made damages
