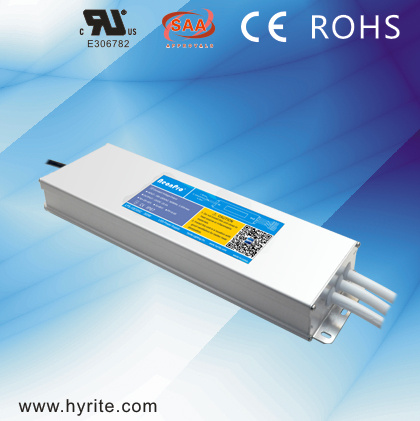

Slim Aluminum Case Design Switching Power Supply

Name: Slim Aluminum Case Design Switching Power Supply
Brand: all-electronics-online.com
SKU: 716184522
Availability: InStock
Rating: 4.7 (123 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPS-24E300C
Output:	300W
Input Voltage:	200-240V
Output Voltage:	24V
Power Factor:	High PF~0.9
Efficiency:	85%
IP Rating:	IP 67
Certificates/Standards:	Ce
Weight(Kg):	1.6
Packing Information:	10 PCS/ Carton, G.W 17 Kg
Dimensions(LWH):	3088536mm
Usage:	Construction
Output Type:	Dual
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	200-240V
Brand:	Neonpro

Product Description

300W 24V High PF Waterproof Slim LED Power Supply CE RoHS EMC
Brief Introduction of the high power waterproof LED power supply :
*External driver for LED module, strip, flex ribbon, bar light, spot light, down light, wall washer, panel light, etc...
*Slim body, special design for application with narrow space, such as ceiling LED Strip back light, LED light box...
*Fully sealed&waterproof, IP67
*Constant Voltage output
*100% burn-in test
*Efficiency>0.85, CE TUV

Technical Specification of high power waterproof LED power supply

Model no.:LPS-24E300CF

Input voltage:200-240 VAC 50/60 Hz

Max. power:300 W max

Output type:Constant voltage

Dimming:No

Power factor:High PF~0.9

Efficiency:85%

AC inrush current(max.):Cold start, 40A@230VAC

Output voltage:24VDC ± 5%

Output current:12.5A. max

Overload protection:105% hiccup mode, auto-recovery

Over voltage protection:120% rated output voltage

Withstand voltage:I/P~O/P:1.5kVAC, 1 minute

Operating temperature:-25~40 ºC

Installation:Outdoor waterproof

IP rating:IP 67

Cooling:Free air convection

Certificates/standards:CE ROHS TUV BIS

Connection input/output:Input:0.75mm²x3 (18cm) / Output:0.75mm²x2*2 (18cm)

Dimensions(L*W*H):308*85*36mm

Weight(kg):1.6

Packing information:10 Pcs/ Carton, G.W 17KG

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
