Slim Size & High Efficient 24V 30W IP67 LED Power Supply with Ce

Name: Slim Size & High Efficient 24V 30W IP67 LED Power Supply with Ce
Brand: all-electronics-online.com
SKU: 759539645
Availability: InStock
Rating: 4.3 (147 reviews)

Price:	US $ 5.51-5.8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPS-24E30C
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output:	30W
Input Voltage:	220V
Output Voltage:	24V
Power Factor:	Low
Efficiency:	85%
IP Rating:	IP 67
Certificates/Standards:	CE
Weight(Kg):	0.9500
Packing Information:	10 PCS/ Carton, G.W 9.5 Kg
Dimensions(LWH):	1563225mm
Usage:	Construction
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
In-Out:	AC to DC
Power Supply Voltage:	220V
Brand:	Neonpro

Product Description

24V 30W IP67 Slim Size & high efficient Waterproof LED power supply with CE

Product Feature of LED Power Supply:
*Slim body, Efficiency>0.85
*Constant Voltage type;
*Applied for LED Signage/strips/bar lights/LED Modules etc.
*Protections: Short circuit/over load/over voltage/over temp
*100% full load burn-in test
*Low cost, High reliability
*2 years warranty
*TUV CE ROHS approval.

Note of LED Power Supply:
Trade Terms: EXW, FOB, CIF and CNF term available
Lead time: 15 days after order confirmation
Payment terms: L/C, T/T, Western Union
MOQ: 1 pc

Shipping of LED Power Supply:
* DHL FedEx TNT UPS EMS
* By Sea
* By Air

Technical Specification of LED Power Supply:

Model no.	LPS-24E30C
Input voltage	220 VAC 50/60 Hz
Max. power	30 W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	Low
Efficiency	85%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	24VDC ± 5%
Output current	1.25A max
Overload protection	105% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25~40 ºC
Installation	Outdoor waterproof
IP rating	IP 67
Cooling	Free air convection
Certificates/standards	CE

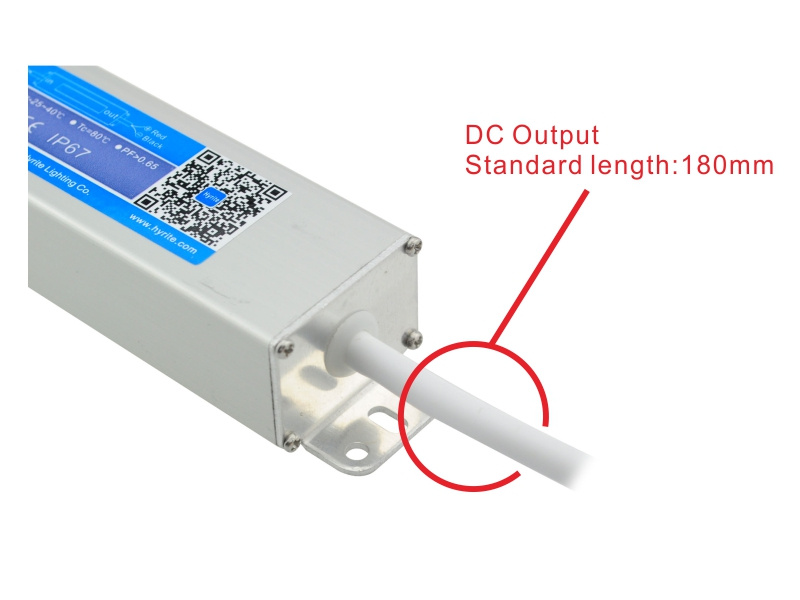

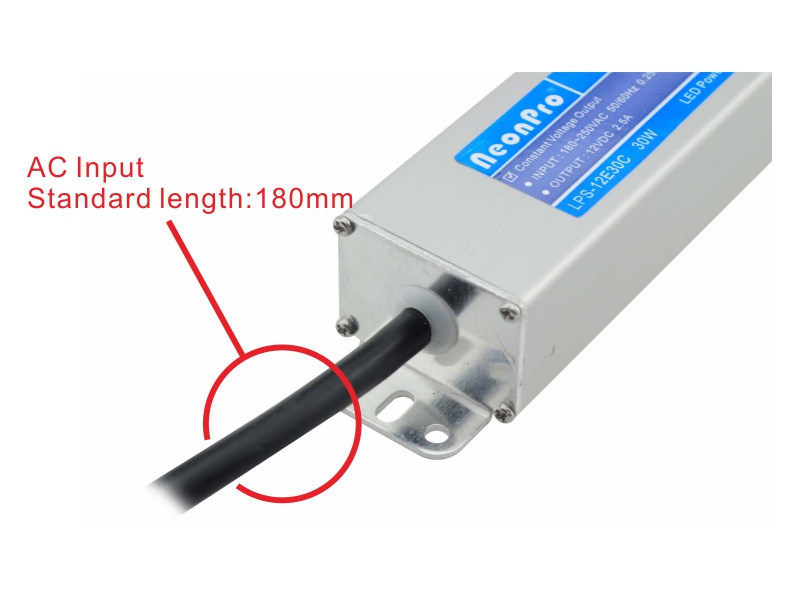

Connection input/output	Input:0.75mm²x3 (18cm) / Output:0.75mm²x2*2 (18cm)

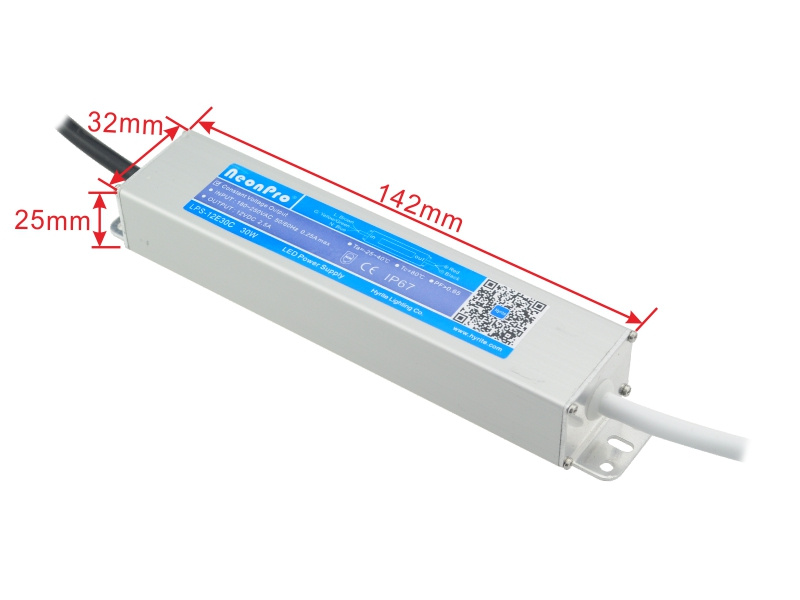

Dimensions(LWH)	1563225mm
Weight(kg)	0.9500

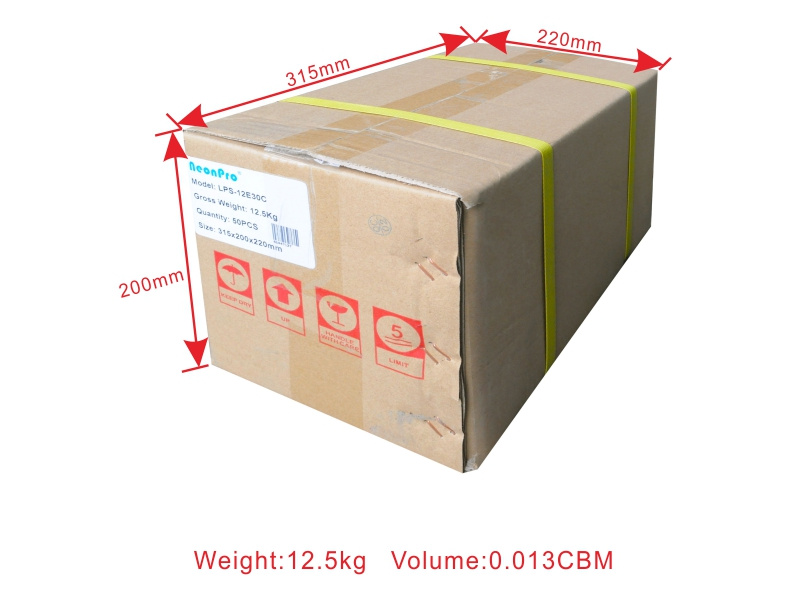

Packing information	10 Pcs/ Carton, G.W 9.5 KG

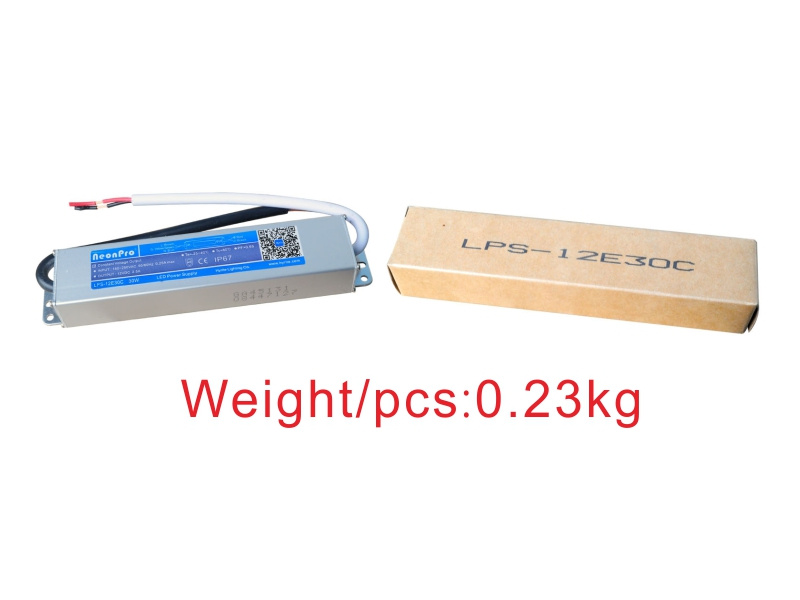

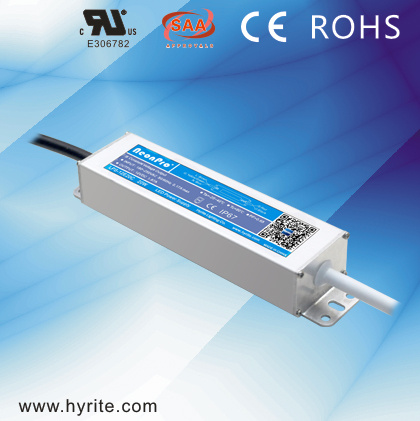

More picture of LED Power Supply:

Project/ Production/ Exhibition of LED Power Supply:

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
