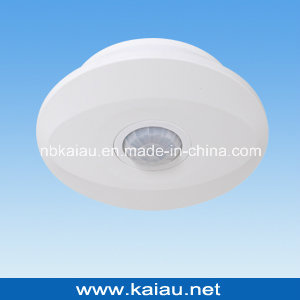

Slim Surface Ceiling Mount Infrared Sensor Switch (KA-S67)

Prod Model:	KA-S67
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty:	Two Years
Samples Delivery Time:	Within 2 Days
Bulk Order Delivery Time:	Within 25 Days
Usage:	All Kinds of Lamp
Type:	Infrared Sensor Switch
Principle:	Infrared
Wires:	NPN (',Three-Wires)
Standard:	Standard
Certification:	CE
Application:	Corridor, Warehouse, Garage, Toilets etc.

Product Description

KA-S67 Slim Surface Ceiling Mount Infrared Sensor Switch specification:
1) Power source: 220-240V/AC
2) Power frequency: 50Hz
3) Rated load: 3000W Max. Tungsten
1000W Max. Fluorescent
4) Time setting: (8± 3)S-(6± 0.5)Min (adjustable)
5) Light-control: <10LUX~2000LUX (adjustable)
6) Detection range: 3-8m Max (radii. ) (adjustable)
7) Detection angle: 360°
8) Installation height: 2.5m~3.5m
9) Working temperature: -10~+40° C
10) Detection motion speed: 0.6~1.5m/s
11) Working humidity: <93%RH
12) Standby power: 0.45W(static 0.1W)

KA-S67 Function:
1) Detection field: The detection field is made up of up and down, left and right service field, it can be selected
According to the consumer's desire. But the moving orientation has great relationship with the sensitivity.
2) Can identify day and night: The light control can be adjusted freely when it works. It can work in the daytime
And at night when it is adjusted on the "sun" position (max); But it can only work in the light control less than
10lux when it is adjusted on the "moon" position (min). As for the adjustment pattern, please refer to the
Testing pattern.
3) Time delay can be added continually: When it received the second induction signal after the first it will
Compute time once more on the rest of the first time delay basic. (Set time)
4) Light-control potentiometer (LUX): Clockwise the knob to increase its value; Anti-clockwise the knob to
Decrease its value.
5) Time potentiometer (TIME): Clockwise the knob to increase its value, the maximum delay time is (6± 0.5)
Minutes; Anti-clockwise the knob to decrease its value, the minimum delay time is (8± 3) seconds.
6) Sensitivity potentiometer (SENS): Clockwise the knob to increase its value, the maximum distance is 8m;
Anti- clockwise the knob to decrease its value, the minimum distance is 3m.

How To Test KA-S67 Ceiling PIR Sensor:
1) Turn the light-control potentiometer clockwise to Maximal value, the
Time delay potentiometer counterclockwise to Minimal value, the
Sensitivity potentiometer clockwise to Maximal value.
First step: Start the sensor ceiling test under the greater than 1000 LUX
Environment (daytime). People walk horizontally in the 8 meters area,
Then the sensor will start load to work when it has detected the signal. And
Then people stop moving, the load will stop working in 8± 3S.
Second Step: Repeat the first step under the the less than 10 LUX
Environment (night). The sensor starts to detect.

2) Turn the light-control potentiometer counterclockwise to Minimal
Value(night mode), the time delay potentiometer clockwise to Maximal
Value, the sensitivity potentiometer counterclockwise to Minimal value.

3) First step: Start the sensor ceiling test under the greater than 1000 LUX environment (daytime). People walk
Horizontally in the 3 meters area, then the sensor will not detect. And then people stop moving, the load will
Stop working in 8± 3S.
Second Step: Start the sensor ceiling test under the less than 10 LUX environment (night). People walk
Horizontally in the 3 meters area, then the sensor will start load to work when it has detected the signal. And
Then people stop moving, the load will stop working in 6± 0.5Min.

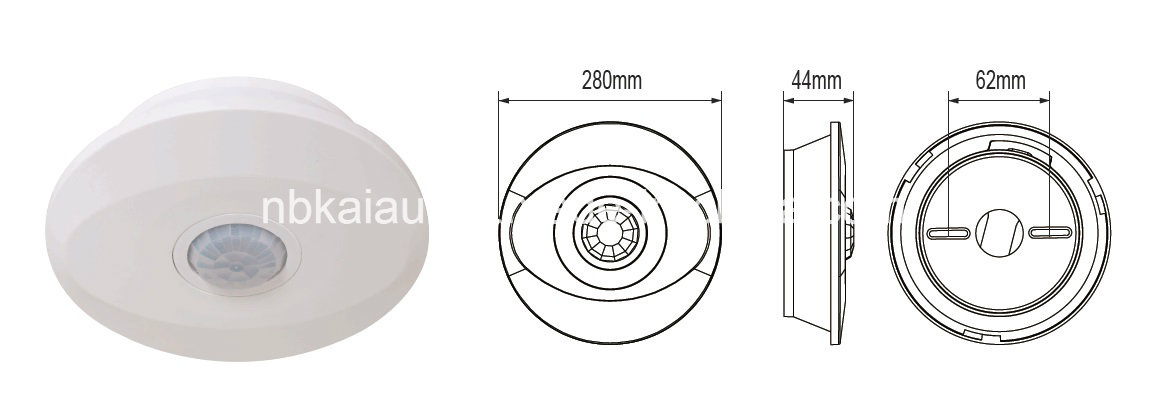

KA-S67 Dimention:

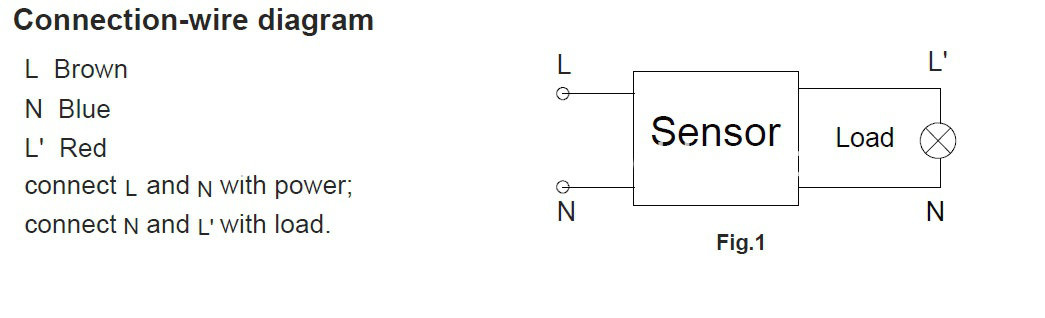

KA-S67 Wiring diagram:

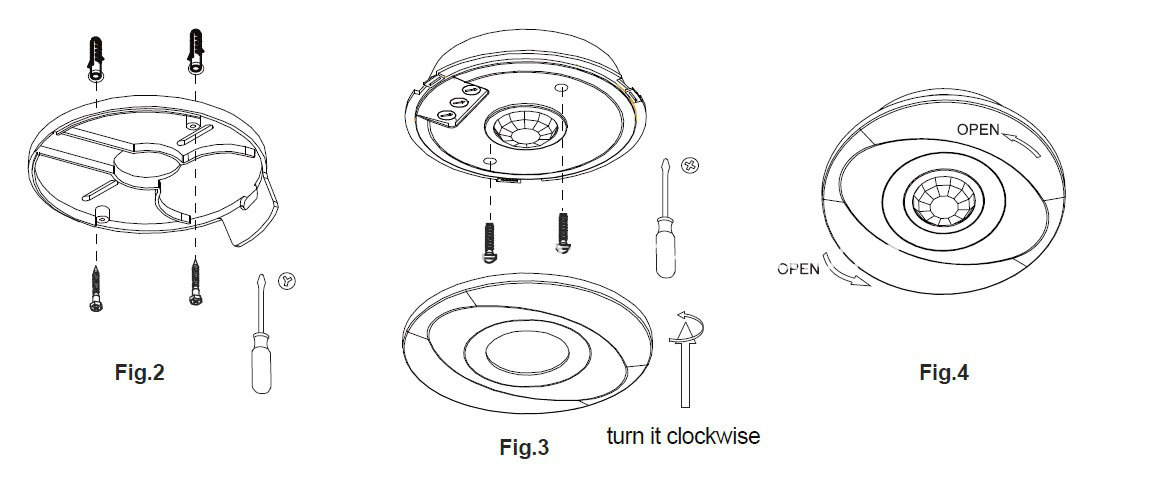

KA-S67 Installation description:
