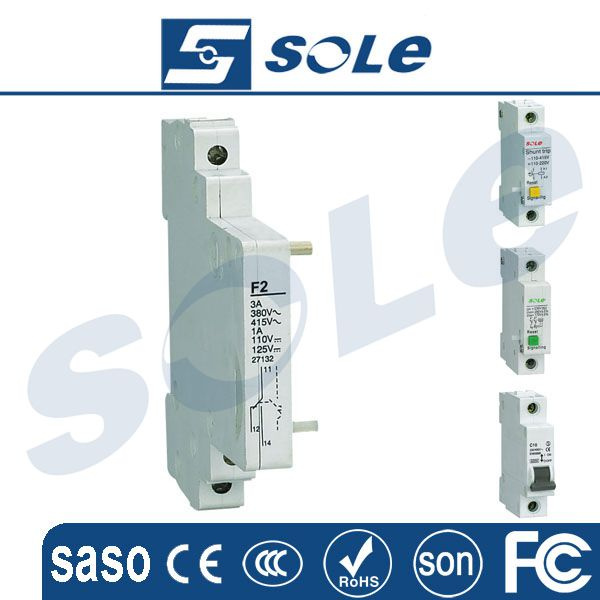

Slmcb-63 (C45N) Circuit Breaker Accessories

Name: Slmcb-63 (C45N) Circuit Breaker Accessories
Brand: all-electronics-online.com
SKU: 734567315
Availability: InStock
Rating: 4.4 (96 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	SLMCB-63(C45N) Circuit Breaker Accessories
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
MCB:	Miniaure Circuit Breaker
Structure:	MCB
Breaking Capacity:	Low Voltage Circuit Breakers
Certification:	CCC
Operation:	Manual Type
Installation:	Insert
Arc-extinguishing Medium:	Air
Speed:	Normal Type Circuit Breaker
Poles Number:	1,2,3,4p

Product Description

Application

Applicable to MCB model HCB-NGP, used for remote control and signaling.

F2 Auxiliary Contact

Contact capacity	AC: Un=415V In=3A
	Un=240V In=6A
	AC: Un=125V In=1A
	Un=48V In=2A
	Un=24V In=6A
Dielectric strength	2000V/1min
Electro-mechanical endurance	≥5000

Mounted on the left side of the MCB HCB-NGP, indicating"ON", "OFF" status of
combined MCB.

Shunt Tripper

Rated insulating voltage(Ui)	500V
Rated power voltage (Us)	AC 400, 230, 125V
Operate voltage range	70~100%Us
Contact capacity:	AC: 3A/400V
	AC: 6A/230V
	AC: 9A/125V
Dielectric strength	2000V/1min
Electro-mechanical endurance	≥4000

Mounting on the right side of MCB/RCBO, used to trip the combined MCB/RCBO by remote controlling device.

U2+O2 over-voltage/under-voltage tripper

Rated voltage (Ue)	AC 230V
Rated insulating voltage (Ui)	500V
Over-voltage tripping range	280V±5%
Under-voltage tripping range	170V±5%
Electro-mechanical endurance	≥4000

Mounted on the right side of circuit breaker, actuate the combined device to trip in case of under-voltage or over-voltage, effectively prevent the device from closing operation under abnormal power voltage condition.
