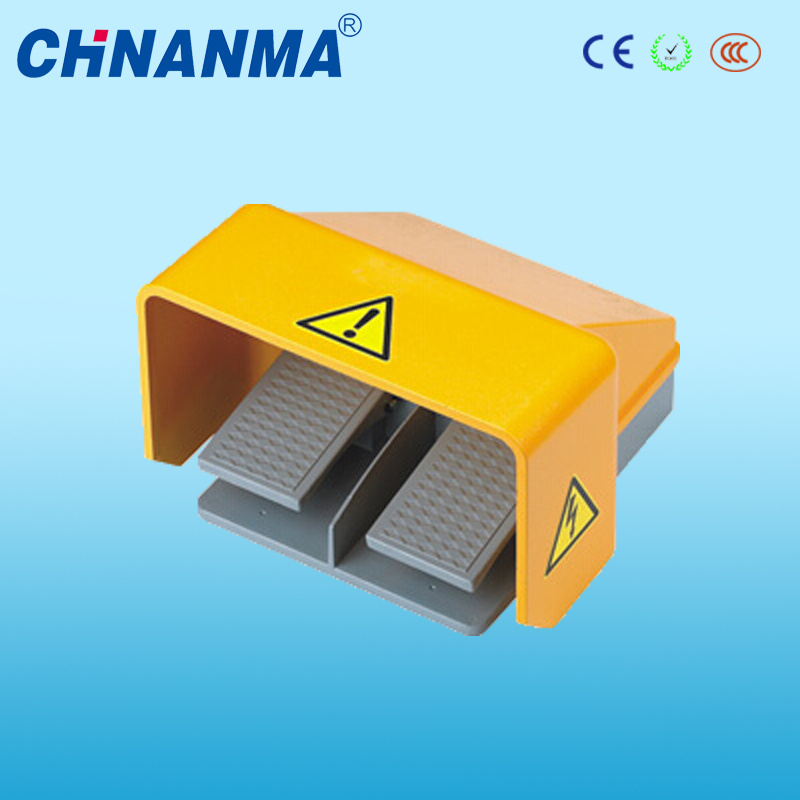

Slow Action Type Waterproof Push Button Foot Switch

Prod Model:	FS-602
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Protection Level:	IP54
Color:	Free Choice
Max. Current:	15A
Max. Voltage:	250VAC
Withstand Voltage:	2000VAC
Mechanical Life:	1,000,000 Times Above
Rotary Number:	Dual Button
Usage:	Digital Products
Standard:	Standard
Structure:	Self-Reset
Operation:	Protection Type
Certification:	CE
Condition:	New

Product Description

1.Medical Foot Switch Application Attentions:

Kinds of shell's material for choice,such as engineering plastic,steel panel,aluminium alloy,etc;
Metal shell use the stregenthening to reast the surfase,bears the impact,the wearability,thermostable;
Cable lock-in jacket is made for the cable coming out and it is waterproof,grease proofing;
Switch bottom is equipped with the rubber pad,for skidproof;
Widely used for control in industrial automation equipments,transport,pressing,medical treatment,test and etc.

2.Adopt metalshell, hard and strong in volume, stand wear and tear.
Widely used in various of industrial machinery, just like industrial automation installment, transport, stamping, medical treatment, testing etc.

3.Specification

Item	Specification
Model Name	FS-602
Inner switch	Slow action type
Material of Rind	Aluminum
Rating	15A 250VAC
Contact	1NC1NOX2
Insulation resistance	≥100MΩ
Contact resistance	≤25mΩ
Withstand voltage	>=2000VAC
Electrical life	≥100,000
Temperature	-25-70°C
Humidity	<=85%
Protection degree	IP65

4.Why choose our switches

1) We can provide you with different types of micro switches for your selection.

2) We can offer good quality electric life 500, 000-1, 000, 000times.

3) Various operating force, height and color for one switch for your choice.

4) Safety, on-time delivery, excellent quality with competitive price.

5) ODM&OEM professional design.

5.Customer's questions

Q1:How about the delivery time?
Answer:It's depends on the quantity, for example, 10000PCS need to OEM,
delivery time is 3-7 days.

Q2:What quality you can offer to us?
Answer:We now can do 1/2 years warranty, during the warranty time we can exchange all defective products from customers for free.

Q3:Can you give me samples to test?
Answer:Yes

Q4:What's you MOQ?
Answer:MOQ 100PCS, mixed order acceptable, welcome trial order.

6.More information of our products, please do feel free to contact us.
Reply will be available within 24 hours. Thanks!
