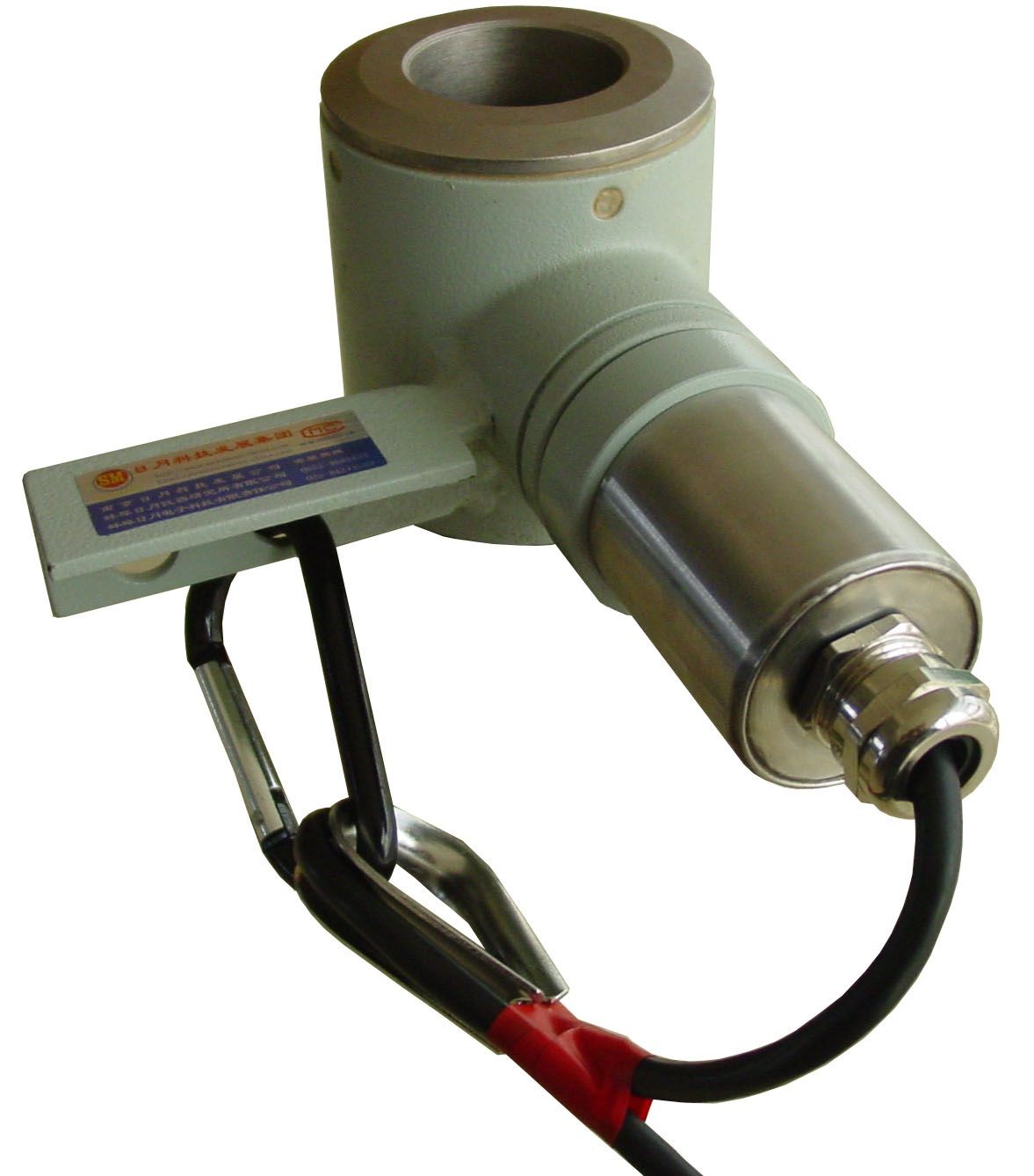

Sm-A4-DC Oilfield Dedicated Fixed Load Cell

Name: Sm-A4-DC Oilfield Dedicated Fixed Load Cell
Brand: all-electronics-online.com
SKU: 839991385
Availability: InStock
Rating: 5 (127 reviews)

Price:	US $ 40-55/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	SM-A4-DC
Rated Load:	50kn - 200kn
Execution Standard:	GB/T 7551-2008 Certificate

Product Description

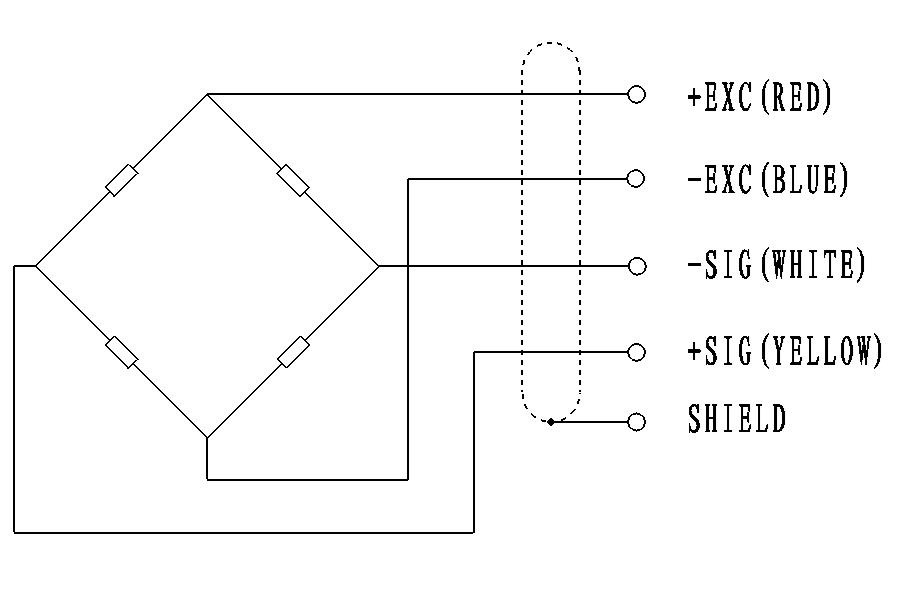

Circuit Diagram:
Red:       +input
Blue:     -input
White:    -output
Yellow:   +output

Item\Parameter	C3	Unit
Rated load(Emax):	50~200	kN
Maximal numbers of load cell cerification. Intrevals (NlC):	2000	d
Maximal numbers of load cell cerification. Intrevals (NlC):	2000	d
Maximal numbers of load cell cerification. Intrevals (NIC):	0.01	% of ratedload
Maximal numbers of load cell cerification. Intrevals (NIC):	0.01	% of ratedload
Rated output(Cn):	2.0±0.1%	mV/V
*Combined error :	0.3	±% of rated output
Temperature effect on sensitivity (Tkc):	0.02	±% of rated output/ºC
Temperature effect on sensitivity (Tkc):	0.02	±% of rated output/ºC
Temperature effect on zero balance (Tk0):	0.02	±% of rated output/ºC
Temperature effect on zero balance (Tk0):	0.02	±% of rated output/ºC
Zero balance :	1.0	±% of rated output
Input resistance(Rlc):	2000±5	Ω(ohms)
Output resistance(Ro):	2000±5	Ω(ohms)
Insulation resistance :	≥5000	MΩ(Mege-Ohms)
Safe overload :	150	±% of rated capability
Ultimate overload :	300	±% of rated capability
Operating temperature range :	-30~+70	ºC
Recommend excitation	12~24	V(DC or AC)
Maximum excitation :	36	V(DC or AC)
Material of elastomer :	Alloy steel /Stainless steel
Protection class	IP67
