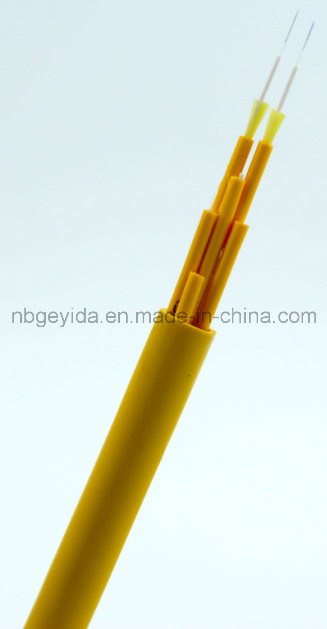

Sm Breakout Fiber Optic Cable

Name: Sm Breakout Fiber Optic Cable
Brand: all-electronics-online.com
SKU: 699823062
Availability: InStock
Rating: 4.4 (63 reviews)

Price:	US $ 0.9/Meter
Trade Terms:	FOB,CIF,EXW
Min Order:	2000/Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GEYIDAA008
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Jacket Color:	Yellow
Strength Member:	Kevlar
Application:	Art
Type:	Single-mode Fiber
Connection Structure:	SC-SC
Certification:	CE
Sheath Material:	Lszh

Product Description

Indoor OM3/OM4 10G Distribution Cable

Application:
Used in indoor cabling, especially used as distribution cable.
Used as interconnect lines of equirements, and used in optical connections in optical communication equipment rooms and distribution frames;
Used as pigtails and patch cords.

Features:
1. Good mechanical and environment characteristics
2. Flame retardant characteristics meet the requirements of relevant standards
3. The mechanical characteristics meet the requirements of relevant standards
4. Soft, flexible, easy to splice, and with big capacity data transmission
5. Meet various requirements of market and clients

Options
1.Fiber Type:G.652,G.655 or G.657 single-mode fiber, A1a or A1b,OM3 or OM4 multi-mode fiber, or other types of fiber;
2.Fiber Count:Total number of fibers in the cable;
3.Jacket material:Environmental flame retardant polyvinylchloride(PVC),environmental low smoke zero halogen flame retardant polyolefin(LSZH),environmental halogen flame retardant polyolefin(ZRPO), environmental thermosplatic polyurethane(TPU), or other contracted material;
4.Jacket Color:(Including color of fiber) meets the requirements of relevant standards,or other comtracted color;
5.Cable Dimension:The nominal cable dimension, or other contracted dimension;
6.Delivry Length: 1km or 2km, or other contracted length;
7.Other Requirements: Other contracted special requests.

Cable Parameters

Fiber Count	Cable Dimension(mm)	Cable Weight(kg/km)	Tensile(N)		Crush(N/100mm)		Min.Bend Radius(mm)		Range of Tem(ºC)
			Tensile(N)		Crush(N/100mm)		Min.Bend Radius(mm)
			Long Term	Short Term	Long Term	Short Term	Dynamic	Static
4	5.0	19.0	130	440	200	1000	20D	10D	-20~+60
6	5.2	23.0	130	440	200	1000
8	5.5	26.0	130	440	200	1000
12	6.5	36.5	200	660	200	1000
16	7.5	44.5	200	660	200	1000
24	8.2	54.5	200	660	200	1000
36	9.0	72.0	200	660	200	1000
48	10.5	90.0	200	660	200	1000
Note:	All the values in the table, which are for reference only, are subject to change without notice;
Note:	The minimun bend radius(static) is 5D when G.657 fiber is used.

Ningbo Geyida Cable Technology Co., Ltd. is located in the tsz east industrial zone, cixi city of zhejiang province, located in south of Shanghai. In the east is the world-famous deepwater port, ningbo, traffic is convenient, the environment is superior. The factory covers an area of 20, 000 square meters, is a modern enterprise system established in accordance with the high-tech companies. Company introduction in modern technology and equipment, the introduction of modern management methods and systems. Modern quality management program, make product in every link in production got the quality guarantee. The company strictly according to ISO9002: 2000 quality management standard operation, international from product design, production, inspection, the whole management process of the service quality.

Company main product: All kinds of outdoor optical cable, indoor optical cable, optical line jumpers, optical fiber accessories etc. The company will continue to fight in the same storm-tossed boat "business" spirit of enterprise, in line with "brand, cooperation, innovation" business philosophy, adhere to the "customers first" service concept. Committed to build brand integrity, optic communications market oriented, innovative efforts to develop and produce products with excellent performance of cable. Enable the company to become the first-class modernized enterprise and unremitting efforts. Hope in the mutual benefit and win-win with domestic and foreign enterprises on the basis of establishing business relations and cooperation, and to develop and create a brilliant future with you! !
