Sm FC/Upc-FC/Upc Fiber Optic Patch Cord (SM FC/UPC-FC/UPC)
| Price: |
US $ 1-1.5/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
| Prod Model: |
SM FC/UPC-FC/UPC Fiber Optic Patch Cord |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Length: |
0.9m, 3m, Can Be Customized |
| Connector: |
FC/Upc to FC/Upc |
| Applications: |
FTTX, CATV, Cabling System, ODF etc. |
| Keyword: |
Sm FC/Upc Patch Cord |
| Model No: |
Sm FC/Upc-FC/Upc Fiber Optic Patch Cord |
| Delivery: |
About 7 Days |
| Fiber: |
G652D |
| Application: |
Telecommunication |
| Connection Structure: |
FC-FC |
| Certification: |
CE |
| Brand: |
Daytai |
| Core: |
Customzed |
| Sheath Material: |
PVC or Lszh |
| Type: |
Sm/Mm/Om3 |
Product Description

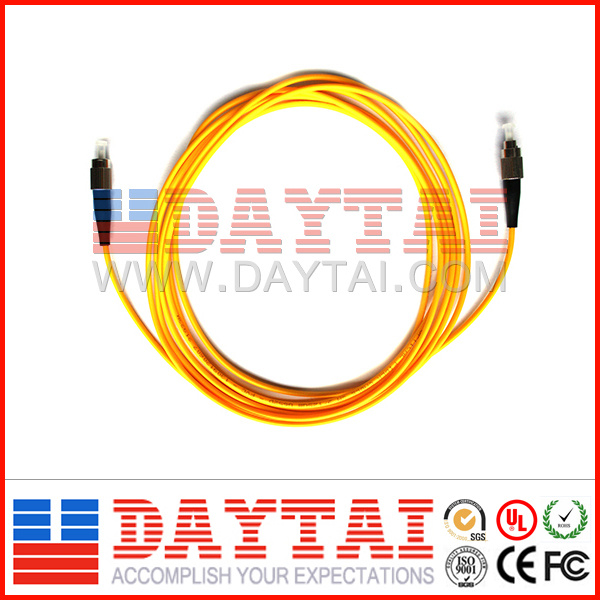

SM FC/UPC-FC/UPC Fiber Optic Patch Cord
FC UPC Fiber Optic Patch Cord Specification
Optical Fiber Patch Cord
1.FC/UPC-FC/UPC connector
2.G652D,9/125um
3.OD: 3.0MM
4.PVC or LSZH Jacket
FC UPC Fiber Optic Patch Cord Description
Optical Fiber Patch Cord, FC/UPC to FC/UPC connector, G652D,9/125um, single core, OD: 3.0MM,PVC or LSZH Jacket is optional,Length:3M (The length of other requirements canbe provide).
FC UPC Fiber Optic Patch Cord Features
1.Insertion Loss: APC<0.3dB .
2.Return Loss: SM: PC>45dB.
3.Repeatability: ≤ 0.1dB.
4.Exchange: ≤0.2dB.
5.Push-pull Performance:≥1000 Cycle.
6.Operation Temperature: -40~+80°C.
FC UPC Fiber Optic Patch Cord Applications
Long Distance OpticalCommunication.
Optical Testing System.
LAN and MAN.
CATV System.
Digital Communication System.
ReliabilityText Condition of FC UPC Fiber Optic Patch Cord
| Item | Text Condition | Text Value |
| Optical | Insertion Loss | 1.3um LED Laser | ≤0.2dB |
| Return Loss | 1.3um LED Laser | ≥50dB |
| Mechanized | Exchange | Interchangeable Random | <0.2dB |
| Vibration | 5~2000Hz,1.5mm Amplitude | <0.1dB |
| Push-pull | >1000 Cycle | <0.1dB |
| Environments | High Temperature Storage | +85°C For 100h | <0.2dB |
| Low Temperature Storage | -40°C For 100h | <0.2dB |
| Temperature Storage | -40°C~+85°C, 50 Cycles | <0.2dB |
| Relative Humility | +25°C~+65°C, 93%R.H, For 100h | <0.2dB |
The variation of insertion loss after test.
