| Prod Model: |
Fiber Optic Patch Cord |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Customized: |
Available |
| Product Name: |
Fiber Optic Patch Cord |
| Insert Loss: |
< 0.20dB |
| Jacket Material: |
PVC,LSZH or Ofnp |
| Installation: |
Indoor |
| Length: |
Customized Lengths 0.5m-100m |
| Fiber Type: |
OS1, OS2, Om1, Om2, Om3, Om4 |
| Return Loss: |
PC>30dB; APC> 50dB |
| Polishing Type: |
PC,Upc,APC |
| Cable Diameter: |
0.9mm, 2.0mm, 3.0mm or Customization |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC-SC |
| Certification: |
CCC |
Product Description

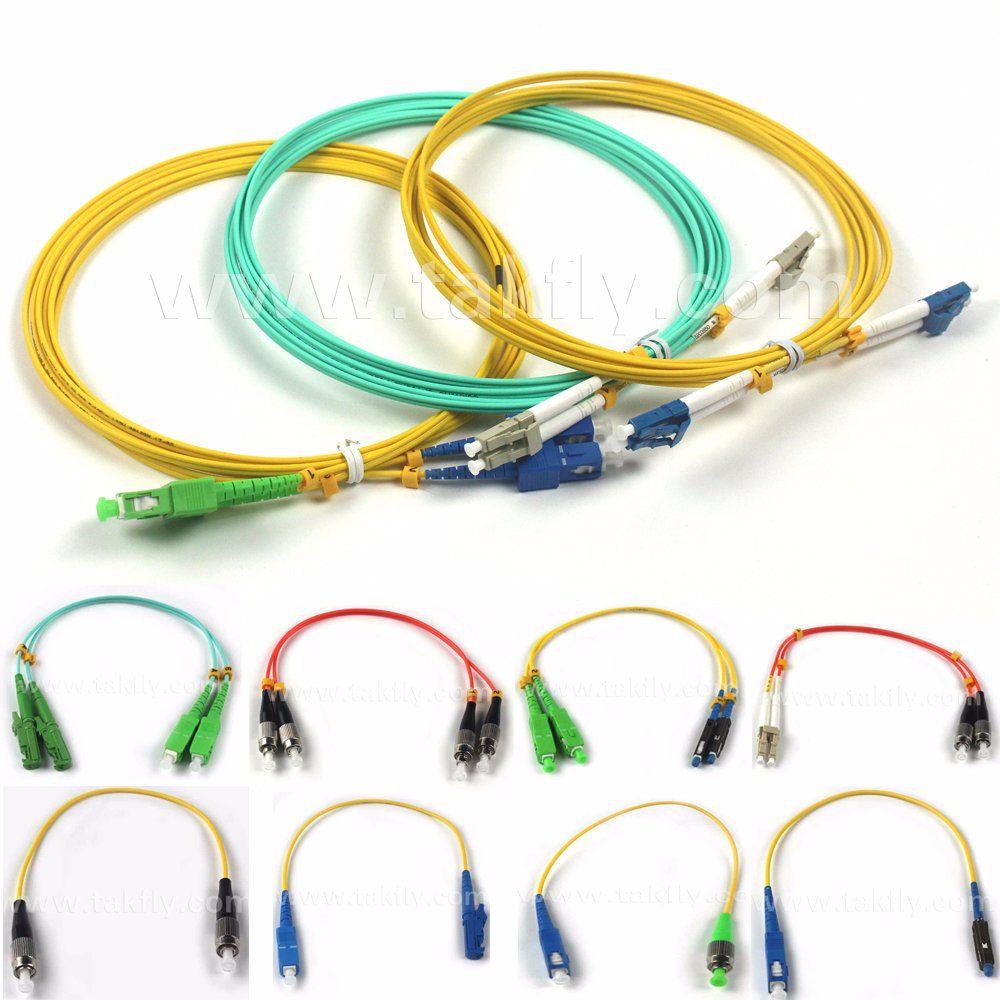

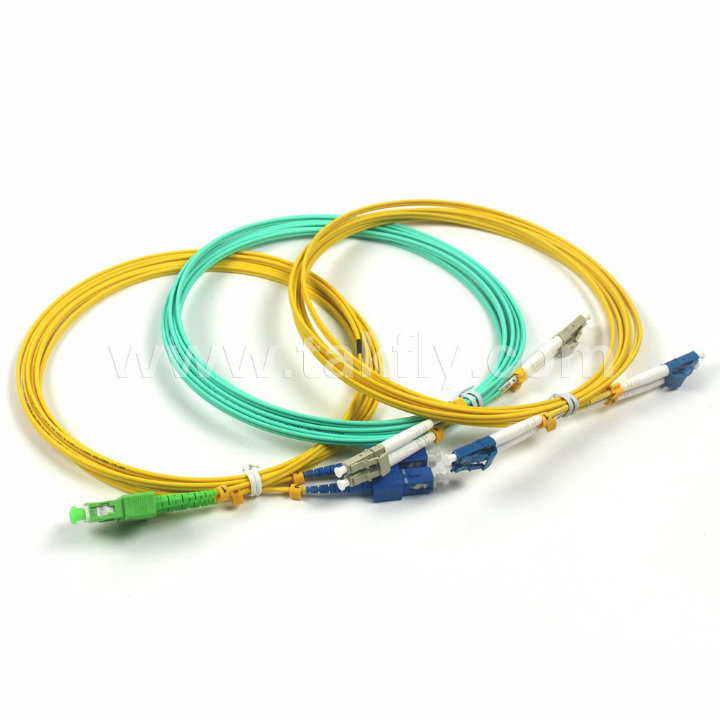

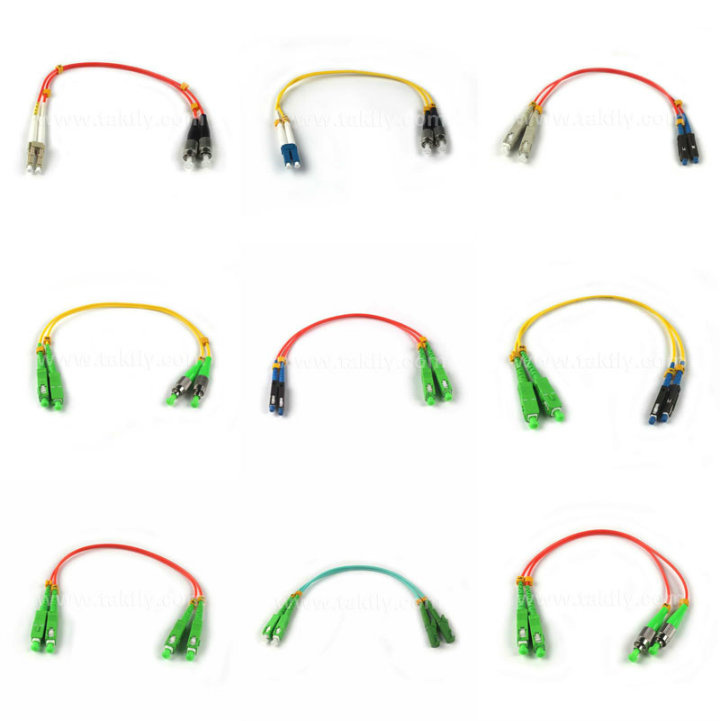

SM/MM Simplex/Duplex ST/FC/SC/LC PC/UPC/APCFiber Optic Patch Cord
Description

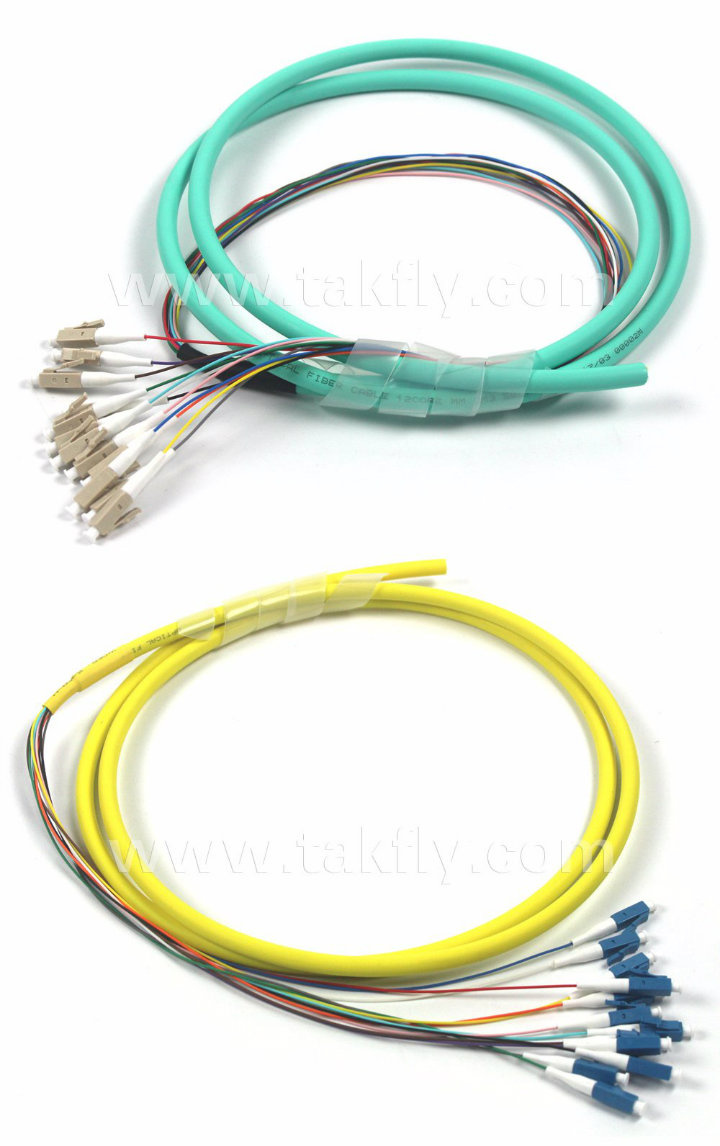

Fiber Optic Patch Cord (Jumper) is a optical fiber cable with two ends adding connectors to connect beam path. Pigtail is fiber cable permanently attached connector only at one end. Fiber Optic Patch Cord assembled with various types of connectors (such as FC, SC, ST, LC, MU, MTRJ etc.) There are three kinds of polished fiber end-face: PC, UPC and APC. We employ advanced technique and equipment to manufacture so as to ensure the high quality of mass production.
Features
1. Low insertion loss and hight return loss.
2. Excellent repeatability and changeability
3. Simplex and duplex available.
4. With ceramic fettules.
5. PVC,LSNH and OFNP cable option.
6. Optical performance 100% factory test.
Applications
1. Telecom Network
2. Local Ring Network
3. Optical Fiber Sensor
4. Optical Fiber Test Equipment
5. Optical Fiber Communication System
6. FTTH, LAN, PON & Optical CATV
Performance Specifications
Parameter | Unit | FC, SC, LC | ST, MU | MTRJ, MPO | E2000 |
SM | MM | SM | MM | SM | MM | SM |
PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC |
Insertion Loss | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
Repeatability | dB | ≤0.1 |
Durability | dB | ≤0.2dB typical change, 1000 matings |
Operating temperature | ºC | -20 ~ +75 |
Storage temperature | ºC | -40 ~ +85 |
| | db | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 |
| Operating temperature | ° C | -40~75 | -40~75 | -40~75 | -40~75 | -40~75 |
| Storage temperature | ° C | -45~85 | -45~85 | -45~85 | -45~85 | -45~85 |
| Cable diameter | mm | φ 3.0, φ 2.0, φ 0.9 | φ 3.0, φ 2.0, φ 0.9 | φ 3.0, φ 2.0, φ 0.9 | φ 3.0, φ 2.0, φ 0.9 | φ 3.0, φ 2.0, φ 0.9 |

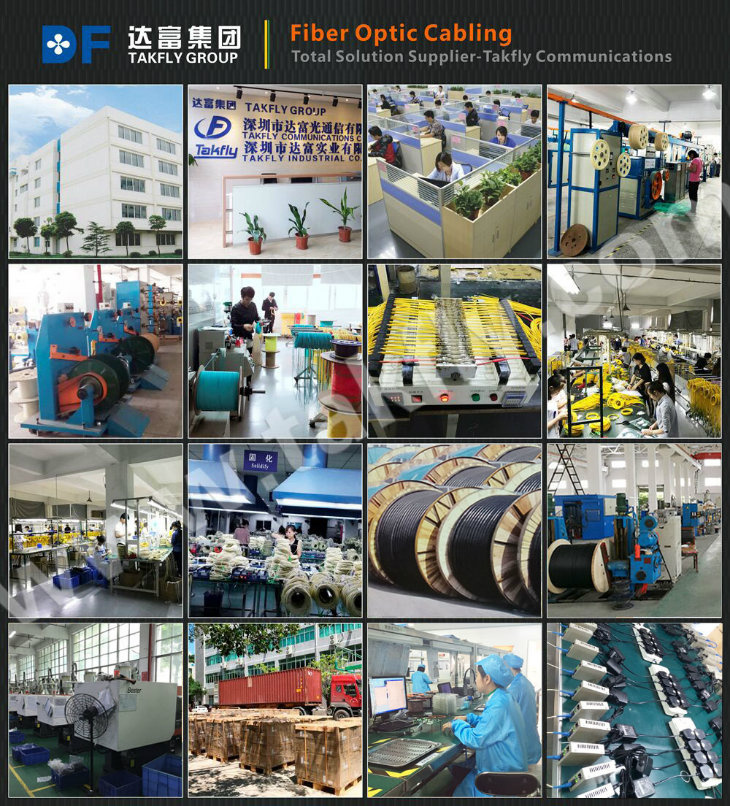

Workshop:
Competitive Advantage
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
(1) Incoming material inspected by QC.
(2) Manufacturing Process Control
(3) Workers trained daily/weekly/monthly
(4) Work instructions manual at each work station
(5) 5S system implemented
(5) Machine maintenance procedure
(6) Quality Control and Final Inspection
The QC staff will check the material, process product and final product according to the specification or test procedure.
2, Our R&D efforts center on reinforcing and developing element technologies
needed to support the future growth and success for customers and KINGTONE.
3, We know customers have urgent needs.
We are skilled at effective communication to interact with customers.
In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime delivery
