| Prod Model: |
Fiber Cable |
| Name: |
Armoured Patch Cord |
| Cable Size: |
0.9/2.0/3.0 |
| Fiber Type: |
9/125 50/125 62.5/125 |
| Connector: |
Sx/Dx |
| Mode Type: |
Sm/mm Signal Model or Multimode |
| Polishing: |
PC/Upc/APC |
| Colour: |
Customized Design |
| Cable Type: |
Indoor and Outdoor Cable |
| Material: |
Customize |
| Other Cable: |
Available |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC |
| Certification: |
CCC |
Product Description
SM MM SX DX Armored Fiber Optic Cable
Details:
Armoured fiber patch cord
A patch cord is a fiber optic cable used to attach one device to another for signal routing.

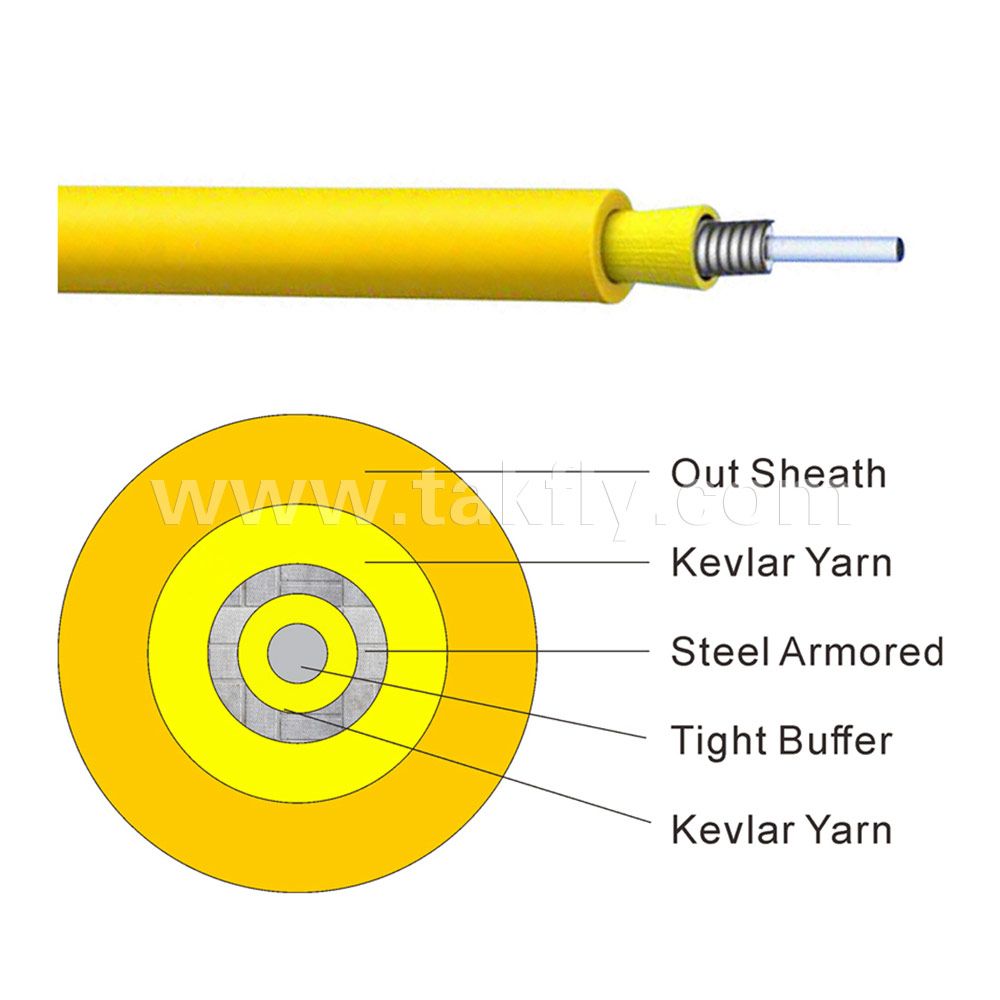

Armoured fiber optic patch cords are with stainless steel tube inside the outer jacket to protect the central unit of the cable. They are strong and flexible, can be bend randomly without being broken.
Features:
Steel tape armoured inside outer jacket
Resist damage by improper twist
Resistance of pressure and rodent bite
Different fiber optic connector types optional
Low insertion loss
Custom cable lengths optional
Application:
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication
Specification:
| Parameter | Unit | FC, SC, LC/ Armoured fiber patch cord | | | | | | | ST, MU | | | | | MT-RJ, MPO | | | | | E2000 | | |
| | | | | SM | | | | | MM | SM | | | MM | SM | | | MM | SM | | | | |
| | | | | PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC | | | | | | | | | | | | |
| Insertion loss(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | | | | | | | | | | | | | | | | |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 | | | | | | | | | | | | | | | | |
| Operating wavelength | nm | 1310, 1510 | | | | | | | 1310, 1510 | | | | | 1310, 1510 | | | | | 1310, 1510 | | |
| Exchangeability | dB | ≤0.2 | | | | | | | ≤0.2 | | | | | ≤0.2 | | | | | ≤0.2 | | |
| Vibration | dB | ≤0.2 | | | | | | | ≤0.2 | | | | | ≤0.2 | | | | | ≤0.2 | | |
| Operating temperature | ºC | -40~75 | | | | | | | -40~75 | | | | | -40~75 | | | | | -40~75 | | |
| Storage temperature | ºC | -45~85 | | | | | | | -45~85 | | | | | -45~85 | | | | | -45~85 | | |
| Cable diameter | mm | φ3.0, φ2.0, φ0.9 | | | | | | | φ3.0, φ2.0, φ0.9 | | | | | φ3.0, φ2.0, φ0.9 | | | | | φ3.0, φ2.0, φ0.9 |
Choose the reason for takfly!
1.Do you have your own factory?
yes,we have the factory with 15 years history.
2.What's your main products?
Fiber optical patchcord/adapter/connector/attenuator/mpo/mtp,PLC,,SFP module ,fiber media converter,POE swith and so on.
3.What's your compang adavatage?
(1).15 years experience in manufacturing fiber optic products..
(2).Availability of R & D with more than 10 engineers.
(3).Available of design and making mold with special molding house.
(4).High quality, attractive price and fast delivery(2-7days)
(5).OEM, ODM customer designs are also welcomed
(6).More than 200 workers
(7).Excellent survice
3.Do you have certificate for raw material ?

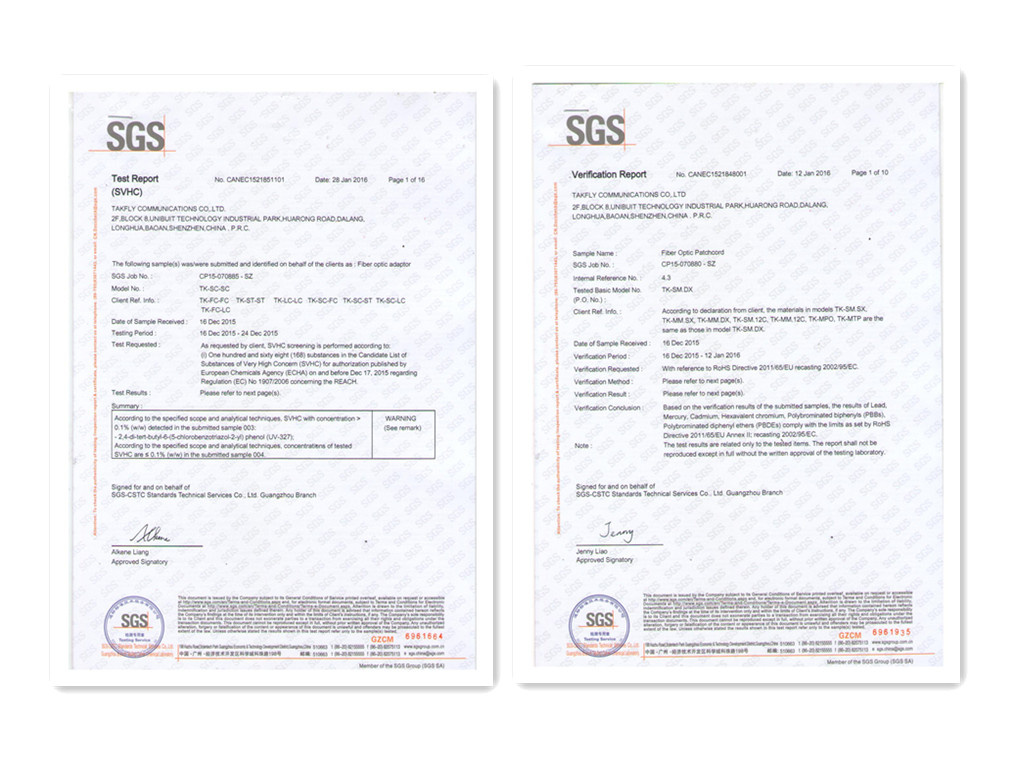

We build long-term relationship cooperation with qualified ISO9001, ROHS,CE,FCC,UL and so on.
