Xinchi Electric Co., Ltd. >> Sm1le Adjust Leakage Operating Current MCCB Circuit Breaker

Sm1le Adjust Leakage Operating Current MCCB Circuit Breaker

Sm1le Adjust Leakage Operating Current MCCB Circuit Breaker
Price: US $ 3.7-5/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: SM1
Speed: High-Speed Circuit Breaker
Arc-extinguishing Medium: Air
Installation: Fixed
Structure: MCCB
Certification: SAA TUV Nemko
Poles Number: 3p;4p

Product Description

Quick Details

Packaging & Delivery

Packaging Details:SM1LE adjust leakage operating current MCCB circuit breaker
Standard carton package.
Delivery Detail:Shipped in 7 days after payment

Product Description

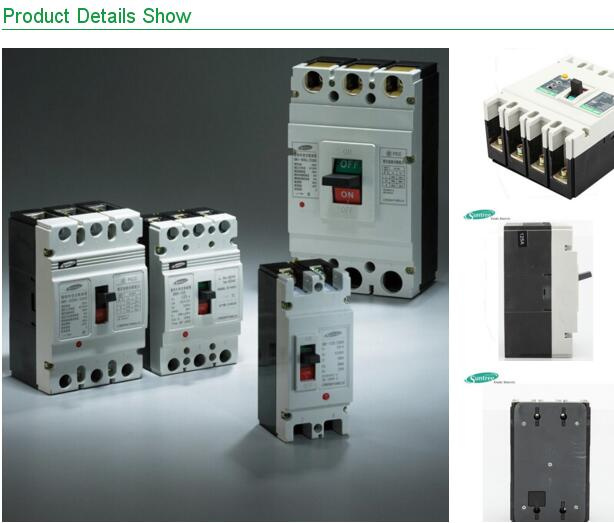

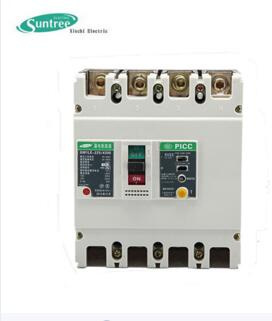

SM1LE adjust leakage operating current MCCB circuit breaker

SM1LE adjust leakage operating current MCCB circuit breaker Rated insulation Voltage is 800V. It applies to circuit of AC 50Hz, rated working voltage 400V and rated working Current up to 630A.

Specifications:

High quality low price
High breaking capacity
Has passed IEC, TUV, SAA

Function:

Overload protection
Shunt circuit Protection
Under-voltage protection
Residual current protection
Power distribution
Motor protection Disconnection

Operating conditions:

Ambient air temperature:-5 ºC -40ºC

Altitude:less than 2000 meters

Greadient:less than 22.5 º

Place free from erosion of rain and snow


Xinchi Electric Co., Ltd. is the best one, which stands out above the rest in China intelligent low voltage electrical field, meanwhile it is a grouping company in the "city of electrical".There are four branch companies subordinate to it:Yueqing Xinchi Electric Sci-Tech Co., Ltd, Yueqing Imp&Exp Co., Ltd, HK Yangming Electrical Technology Co., Ltd and Wenzhou Litto smart Co., Ltd.Moreover.There are 320 workers, the annual output value breakthrough one hundred million, and the export value arrive at ten million.
We always pay attention to manufacture and sell automatic industrial and control system, modular intelligent electrical equipments, such as circuit breakers, residual circuit breakers, contactors, isolators, solid state relay, control and protect switch, automatic transfer switch, electrical fire detecting system, surger protect device, multifunctional meter and new energy system fittings etc.
Especially DC circuit breaker, DC isolating switch, DC fuse, busbar chamber, waterproof switch and other products with leading technical level in this field...We are the first domestic company with CE, CB, IEC, Nemko, SAA, TUV, ISI and CCC certification.Our products are widely used by domestic famous enterprises, and it has become a OEM partner of many international famous brands.

We have fully implement the IS09001:2008 quality management system.It adopts advanced production equipment and precision detecting equipment, introduces high-tech process and high technology talents to provides powerful guarantee for product development, quality upgrading and management innovation of the company.
In order to seek after the excellence, Xinchi will continue to carry on the spirit of "practice, honesty, innovation, active", insist on the policy of " technology promotes industry, Brand promotes industrial", and we believe in "Technology innovation, famous in the world", working hard to let"XINCHI electric brand"walk towards to the world.
