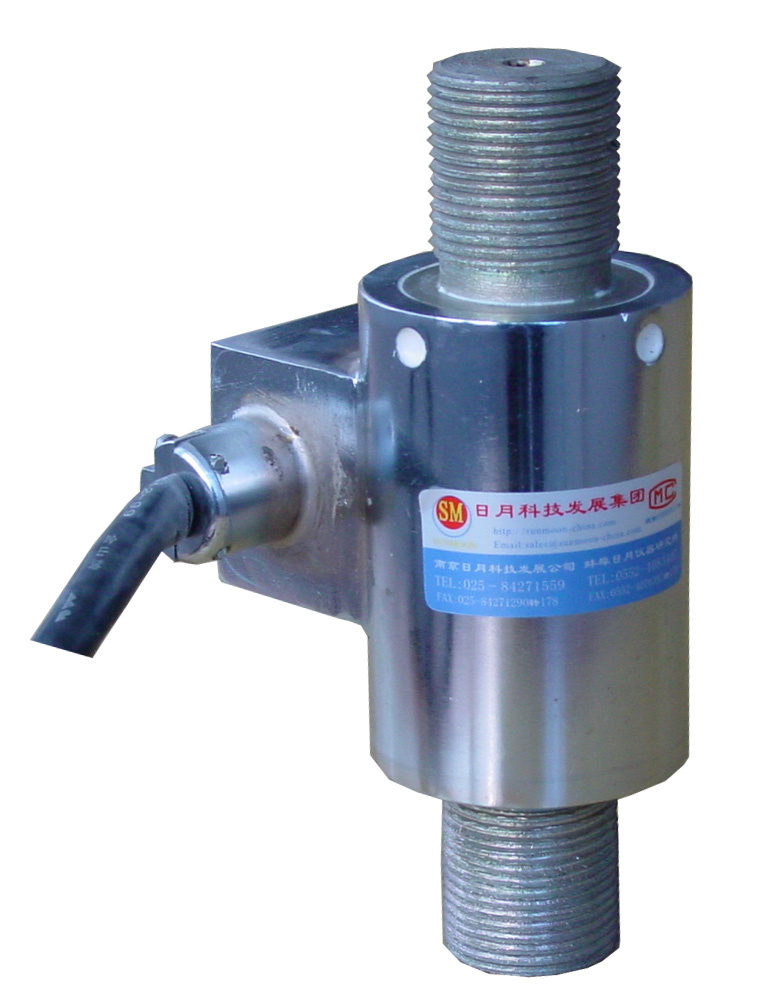

Sm2 Tension and Compression Load Cell

Name: Sm2 Tension and Compression Load Cell
Brand: all-electronics-online.com
SKU: 733882812
Availability: InStock
Rating: 4.7 (77 reviews)

Price:	US $ 25-40/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SM2
Rated Load:	2t - 20t

Product Description

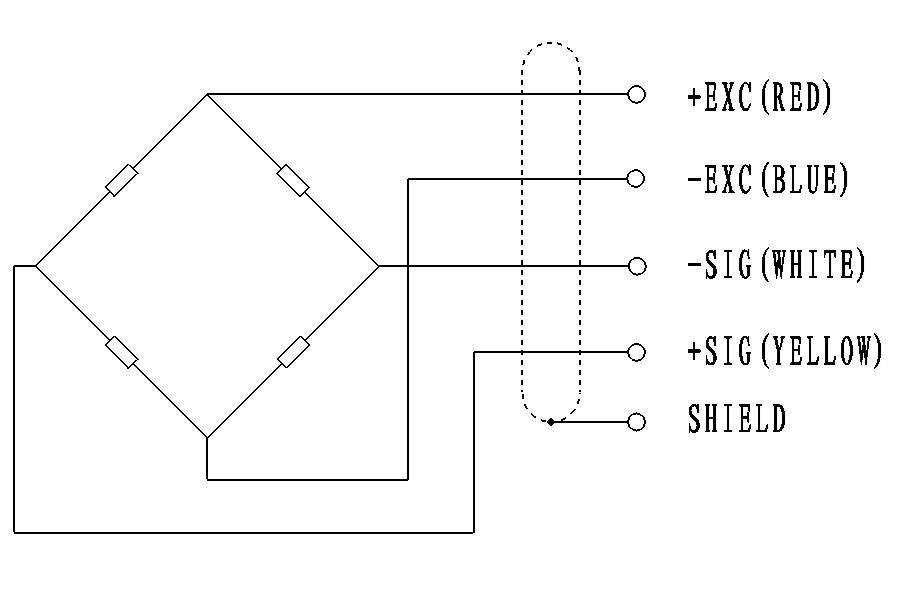

Circuit Diagram:
Red:       +input
Blue:     -input
White:    -output
Yellow:   +output

Item\Parameter	C3	Unit
Rated load (Emax):	2~20	t
Maximal numbers of load cell cerification. Intrevals (NlC):	3000	d
Maximal numbers of load cell cerification. Intrevals (NlC):	3000	d
Maximal numbers of load cell cerification. Intrevals (NIC):	0.01	% of ratedload
Maximal numbers of load cell cerification. Intrevals (NIC):	0.01	% of ratedload
Rated output (Cn):	2.0±0.1%	mV/V
*Combined error :	0.05	±% of rated output
Temperature effect on sensitivity (Tkc):	0.02	±% of rated output/ºC
Temperature effect on sensitivity (Tkc):	0.02	±% of rated output/ºC
Temperature effect on zero balance (Tk0):	0.02	±% of rated output/ºC
Temperature effect on zero balance (Tk0):	0.02	±% of rated output/ºC
Zero balance :	1.0	±% of rated output
Input resistance(Rlc):	780±5	Ω(ohms)
Output resistance(R:	700±2	Ω(ohms)
Insulation resistance :	≥5000	MΩ(Mege-Ohms)
Safe overload :	150	±% of rated capability
Ultimate overload :	200	±% of rated capability
Operating temperature range :	-30~+70	ºC
Recommend excitation :	5~12	V(DC or AC)
Maximum excitation :	15	V(DC or AC)
Material of elastomer :	Alloy steel /Stainless steel
Protection class	IP67
