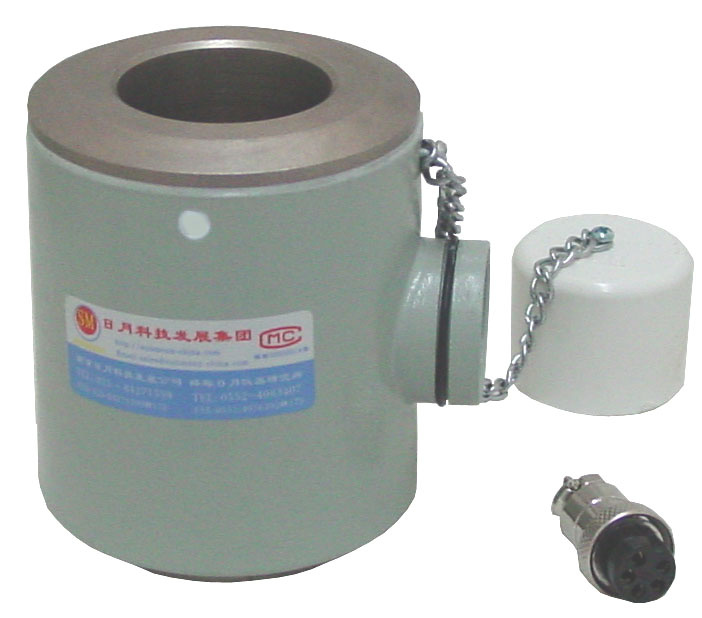

Sm4 Oilfield Dedicated Fixed Load Sensor

Name: Sm4 Oilfield Dedicated Fixed Load Sensor
Brand: all-electronics-online.com
SKU: 839868095
Availability: InStock
Rating: 4.9 (148 reviews)

Price:	US $ 30-50/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	SM4
Rated Load:	50kn - 200kn

Product Description

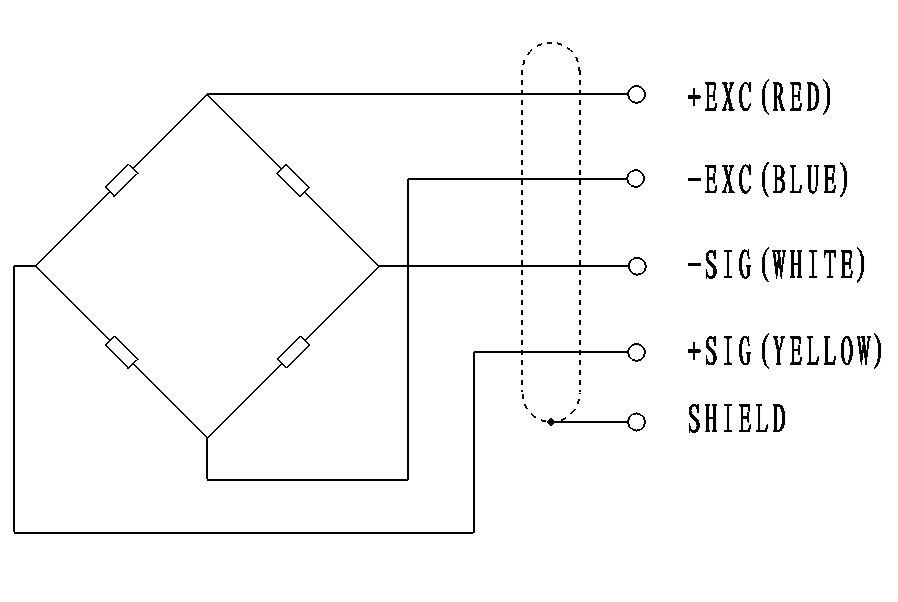

Circuit Diagram:

Red:       +input
Blue:     -input
White:    -output
Yellow:   +output

Item\Parameter	C2	Unit
Rated load(Emax):	50~200	kN
Maximal numbers of load cell cerification. Intrevals (NlC):	2000	d
Maximal numbers of load cell cerification. Intrevals (NlC):	2000	d
Maximal numbers of load cell cerification. Intrevals (NIC):	0.01	% of ratedload
Maximal numbers of load cell cerification. Intrevals (NIC):	0.01	% of ratedload
Rated output(Cn):	1.0±0.1%	mV/V
*Combined error :	0.3	±% of rated output
Temperature effect on sensitivity (Tkc):	0.02	±% of rated output/ºC
Temperature effect on sensitivity (Tkc):	0.02	±% of rated output/ºC
Temperature effect on zero balance (Tk0):	0.02	±% of rated output/ºC
Temperature effect on zero balance (Tk0):	0.02	±% of rated output/ºC
Zero balance :	1.0	±% of rated output
Input resistance(Rlc):	780±5	Ω(ohms)
Output resistance(Ro):	700±2	Ω(ohms)
Insulation resistance :	≥5000	MΩ(Mege-Ohms)
Safe overload :	150	±% of rated capability
Ultimate overload :	200	±% of rated capability
Operating temperature range :	-30~+70	ºC
Recommend excitation	5~12	V(DC or AC)
Maximum excitation :	15	V(DC or AC)
Material of elastomer :	Alloy steel /Stainless steel
Protection class	IP67
