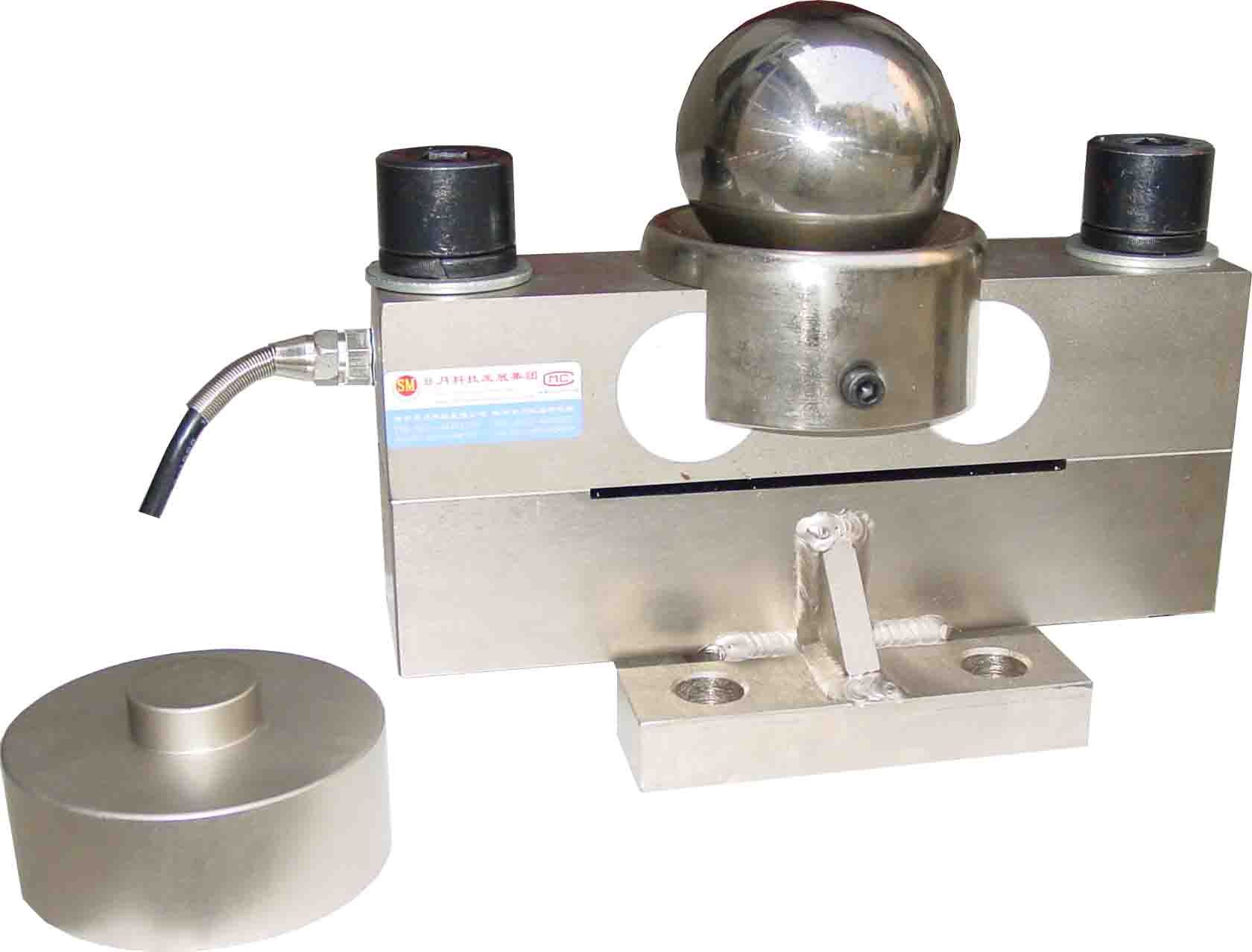

Sm40-a Cantilever Type Load Cell Single Beam Double Shear Beam

Name: Sm40-a Cantilever Type Load Cell Single Beam Double Shear Beam
Brand: all-electronics-online.com
SKU: 839981275
Availability: InStock
Rating: 4.7 (35 reviews)

Price:	US $ 30-50/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	SM40-A
Rated Load:	10t - 50t
Execution Standard:	GB/T 7551-2008 Certificate

Product Description

Customization:

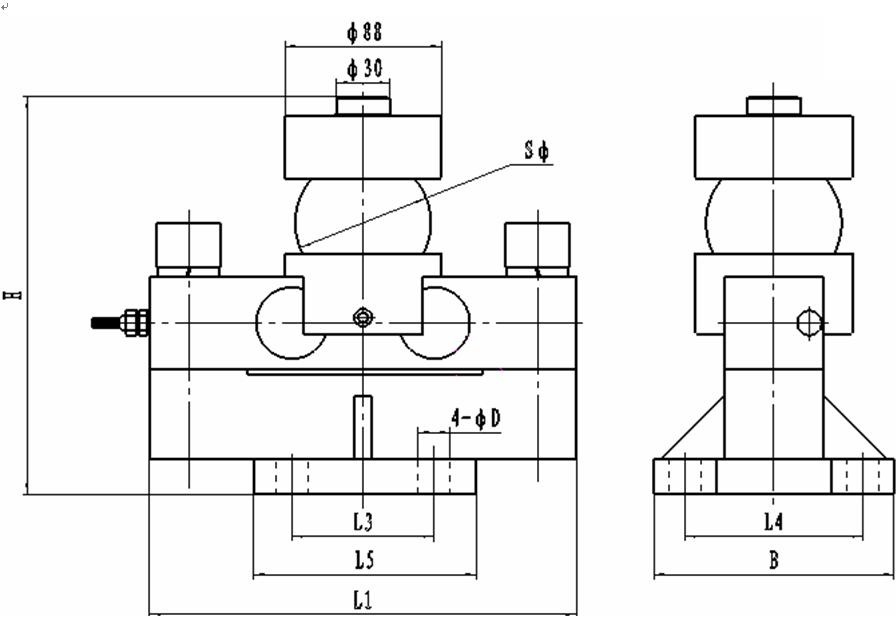

CAP./SIZE	L1	L3	L4	L5	H	B	ΦD	ΦS
t/mm
10	240	80	100	125	195	135	18	50
20,30	240	80	100	125	225	135	18	76
40,50	340	124	124	180	261	160	21	82
Ib/inches(conversion of above dimensions )
22046.23	94.49	31.5	39.37	49.21	76.77	53.15	7.09	19.69
44092.45~66138.68	94.49	31.5	39.37	49.21	88.58	53.15	7.09	29.92
88184.9~110231.1	133.86	48.82	48.82	70.87	102.76	62.99	8.27	32.28

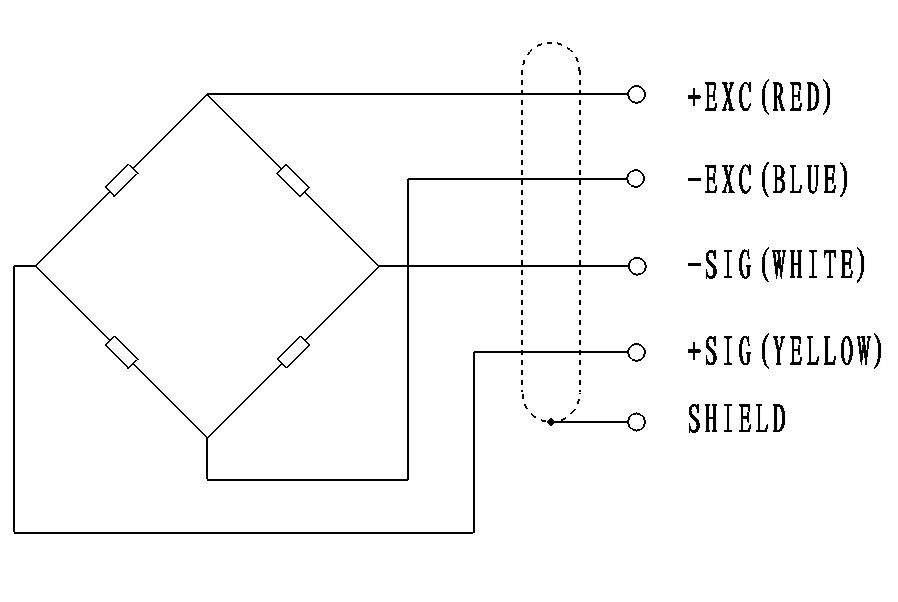

Circuit Diagram:
Red:       +input
Blue:     -input
White:    -output
Yellow:   +output

Item\Parameter	C3	Unit
Rated load(Emax):	10~50	t
Maximal numbers of load cell cerification. Intrevals (NlC):	3000	d
Maximal numbers of load cell cerification. Intrevals (NlC):	3000	d
Maximal numbers of load cell cerification. Intrevals (NIC):	0.01	% of ratedload
Maximal numbers of load cell cerification. Intrevals (NIC):	0.01	% of ratedload
Rated output(Cn):	2.0±0.1%	mV/V
*Combined error :	0.05	±% of rated output
Temperature effect on sensitivity (Tkc):	0.02	±% of rated output/ºC
Temperature effect on sensitivity (Tkc):	0.02	±% of rated output/ºC
Temperature effect on zero balance (Tk0):	0.02	±% of rated output/ºC
Temperature effect on zero balance (Tk0):	0.02	±% of rated output/ºC
Zero balance :	1.0	±% of rated output
Input resistance(Rlc):	775±20	Ω(ohms)
Output resistance(Ro):	700±5	Ω(ohms)
Insulation resistance :	≥5000	MΩ(Mege-Ohms)
Safe overload :	150	±% of rated capability
Ultimate overload :	200	±% of rated capability
Operating temperature range :	-30~+70	ºC
Recommend excitation	5~12	V(DC or AC)
Maximum excitation :	15	V(DC or AC)
Material of elastomer :	Alloy steel /Stainless steel
Protection class	IP67
