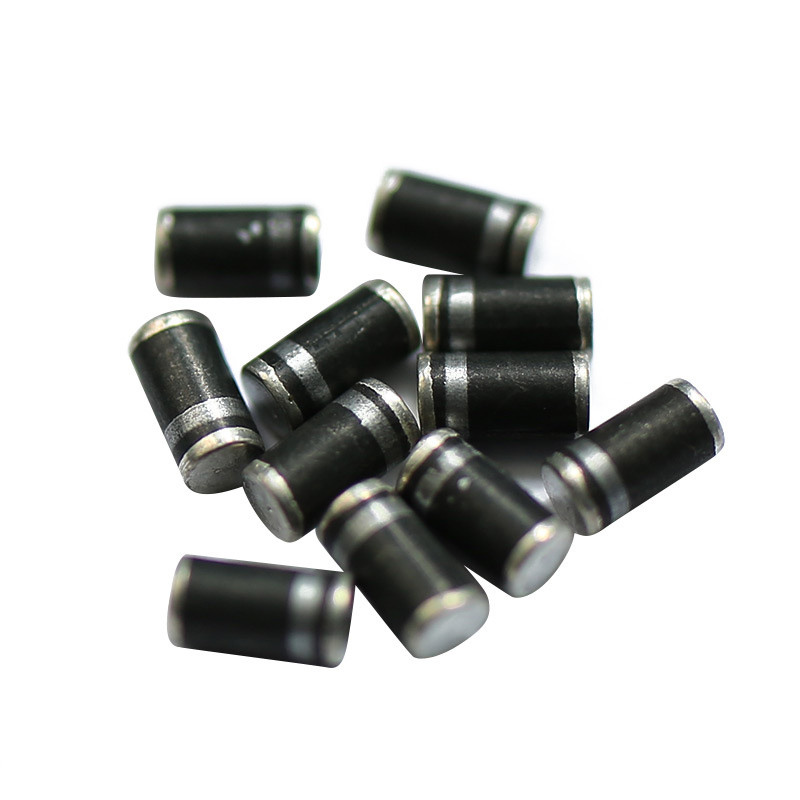

Sm4007 1A 1200V Melf Diode

Prod Model:	SM4007, FM4007
Manufacturing Technology:	Optoelectronic Semiconductor
Material:	Element Semiconductor
Type:	Intrinsic Semiconductor
Package:	SMD
Model:	Sm4001,FM4001,Dl4001
Batch Number:	2016+
Brand:	Sy

Product Description

1A, 50-1000V Silicon rectifier melf SM4001,FM4001,DL4001


We - Changzhou Shunye Electronics, co., Ltd, is located in Changzhou & Shanghai, is specialized in the manufacturing of diode.
For SM4007,we have two case for this product :

Melf case: call FM4007, SM4007, DL4007 or LL4007.

Minimelf case: call GL1M.

Spect: 1A, 1000V.

Package: 5000pcs/reel.

Products Introduction

FEATURES :

*  Glass Passivated Junction
 *  Hight Current Capability
 *  Low Forward voltage Drop
 *  High Reliability and Low Leakage
 *  For Surface Mount Application
 *  Plastic Material - UL Flammability
    Classification Rating 94 V-0
 *  Pb / RoHS Free

Mechanical Data

 *  Case :  MINI MELF, Plastic
 *  Terminals : Solderable per MIL-STD-202, Method 208
 *  Polarity : Color band
 *  Approx Weight : 0.25 grams
 * Mounting Position : Any




TYPE	Maximum Peak	Maximum Average	Maximum Forward	Maximum Reverse	Maximum Forward		Package
	Reversee	Rectified	Prak Surge Current	Current	Voltage
	Voltag	Current	@8.3ms Superimposed	@VRRM TA=25ºC	TA=25ºC
	VRRM	I(AV)	IFSM	IR	IF	VF
	V	A	A	μA	A	V

SM4001	50	1.0	30	5.0	1.0	1.1	MELF
SM4002	100	1.0	30	5.0	1.0	1.1
SM4003	200	1.0	30	5.0	1.0	1.1
SM4004	400	1.0	30	5.0	1.0	1.1
SM4005	600	1.0	30	5.0	1.0	1.1
SM4006	800	1.0	30	5.0	1.0	1.1
SM4007	1000	1.0	30	5.0	1.0	1.1

FAQ:

1, Are you Manufacturer or trading company?
We are a manufacturer only in diode, bridge rectifier and automotive rectifier diode. We could supply competitive price and fast delivery and good quality with prompt service, we guarantee that we will reply to our customers within 1-12H once we receive the inquiry, we will do the utmost to help to cut down your cost.

2. May I have some samples for testing?

Yes, sure. We offer free samples for your approving and you only need to pay the freight for samples. but if you have 1st order with us, you can deduct the freight from your first order, it is fair to both of us.

3. What about the delivery ?

Usually the lead time is about 1-2 weeks after receiving payment. For many normal parts, we have the quantity in stock and we have the system to ensure the delivery will be on time.

4. What about the payment terms ?
Order amount is less than $10000: 100% Advance.
Order amount is between $10000 and $20000: 50% Advance and 50% before shipment.
Order amount is more than $20000: 30% Advance and 70% before shipment.
Old customer with good reputation: NET 30days.

5. What about the shipment terms ?
FOB Shanghai by air;
CFR your seaport by sea;

We also work with DHL, FEDEX, TNT etc. For large quantity , it's up to you to choose the freight forwarder and if you need, we could assist you.

If you have any question or need techical support,  please do not hesitate to contact us, we will try our best to serve you.
