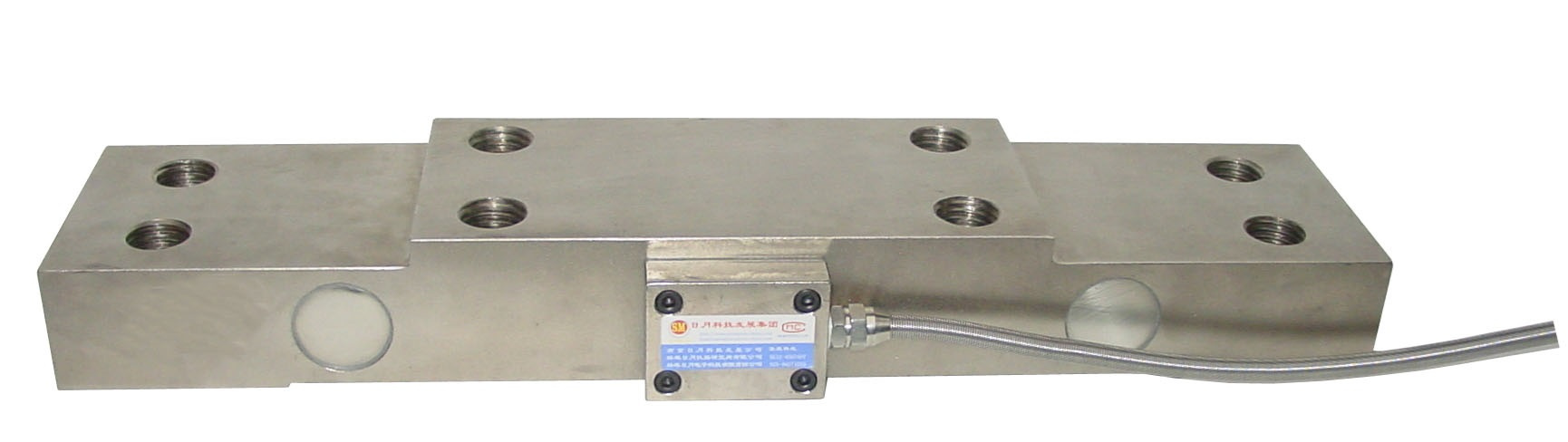

Sm41-a Cantilever Type Load Cell Double Shear Beam

Name: Sm41-a Cantilever Type Load Cell Double Shear Beam
Brand: all-electronics-online.com
SKU: 839987125
Availability: InStock
Rating: 5 (114 reviews)

Price:	US $ 60-85/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	SM41-A
Rated Load:	1.5t - 20t
Execution Standard:	GB/T 7551-2008 Certificate

Product Description

Customization:

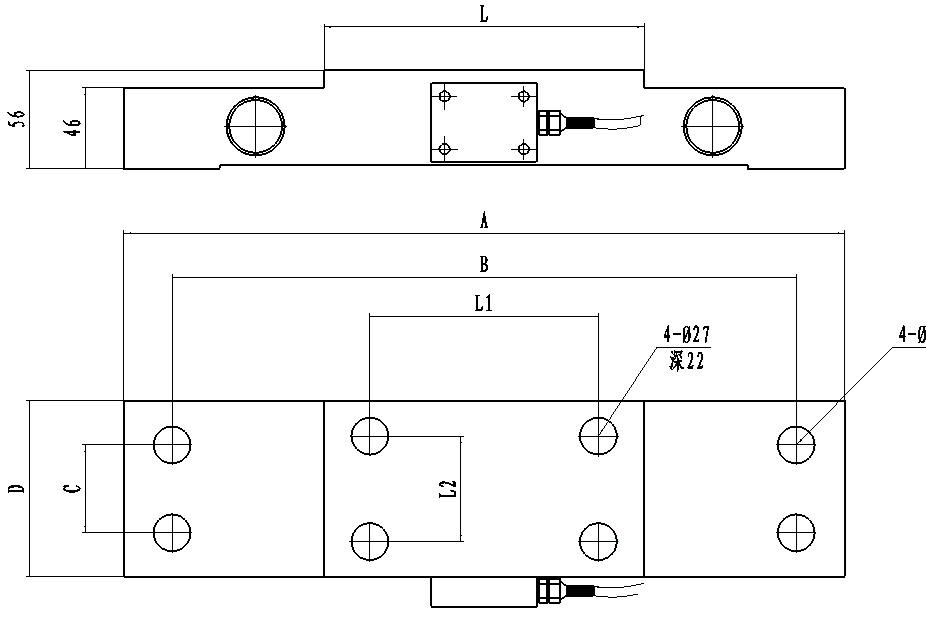

CAP./SIZE	A	B	C	D	L	L1	L2	ΦH
t/mm
1.5	250	310	38	75	152	100	40	17
2.5	410	355	50	100	182	130	60	21
4,8,10	410	355	50	100	212	160	60	21
15,20	457	387	50	100	212	160	60	M24
Ib/inches(conversion of above dimensions )
3306.93	137.80	122.05	14.96	29.53	59.84	39.37	15.75	6.69
5511.56	161.42	139.76	19.69	39.37	71.65	51.18	23.62	8.27
8818.49,17636.98, 22046.23	161.42	139.76	19.69	39.37	83.46	62.99	23.62	8.27
33069.34,44092.45	179.92	152.36	19.69	39.37	83.46	62.99	23.62	M24

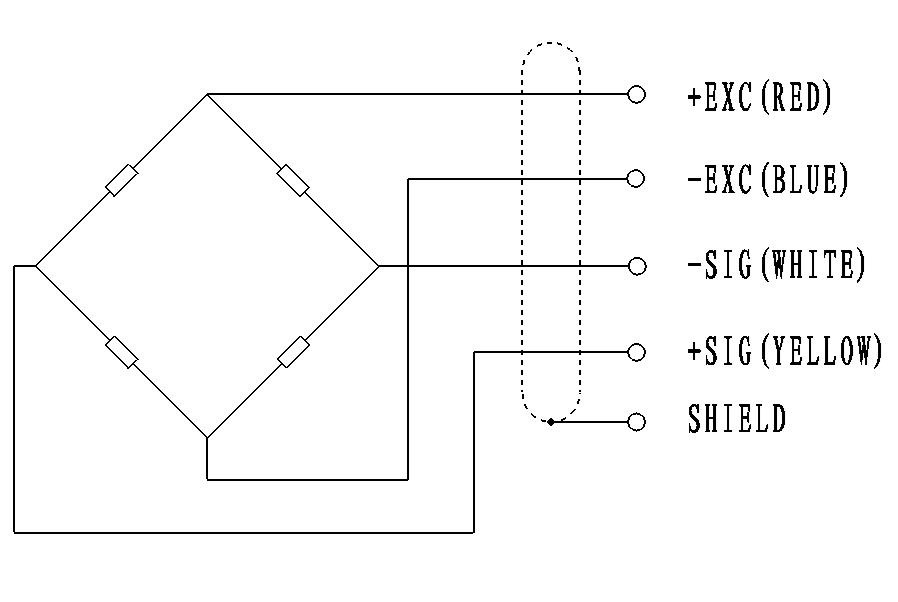

Circuit Diagram:
Red:       +input
Blue:     -input
White:    -output
Yellow:   +output

Item\Parameter	C3	Unit
Rated load(Emax):	1.5~20	t
Maximal numbers of load cell cerification. Intrevals (NlC):	2000	d
Maximal numbers of load cell cerification. Intrevals (NlC):	2000	d
Maximal numbers of load cell cerification. Intrevals (NIC):	0.01	% of ratedload
Maximal numbers of load cell cerification. Intrevals (NIC):	0.01	% of ratedload
Rated output(Cn):	2.0±0.1%	mV/V
*Combined error :	0.1	±% of rated output
Temperature effect on sensitivity (Tkc):	0.02	±% of rated output/ºC
Temperature effect on sensitivity (Tkc):	0.02	±% of rated output/ºC
Temperature effect on zero balance (Tk0):	0.02	±% of rated output/ºC
Temperature effect on zero balance (Tk0):	0.02	±% of rated output/ºC
Zero balance :	1.0	±% of rated output
Input resistance(Rlc):	370±10	Ω(ohms)
Output resistance(Ro):	350±3	Ω(ohms)
Insulation resistance :	≥5000	MΩ(Mege-Ohms)
Safe overload :	150	±% of rated capability
Ultimate overload :	200	±% of rated capability
Operating temperature range :	-30~+70	ºC
Recommend excitation	5~12	V(DC or AC)
Maximum excitation :	15	V(DC or AC)
Material of elastomer :	Alloy steel /Stainless steel
Protection class	IP67
