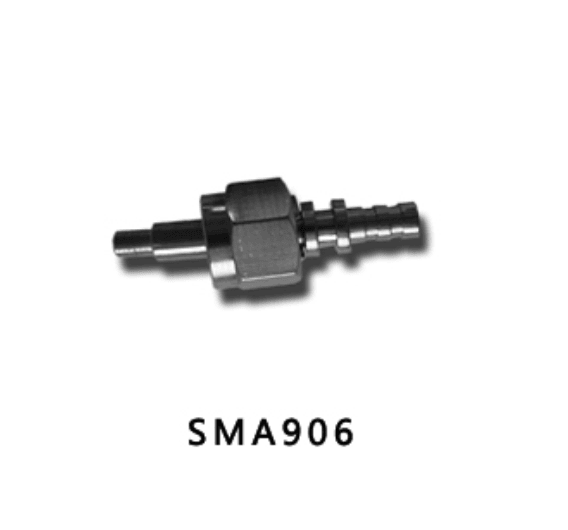

SMA 906 with Metal Ferrule Fiber Optic Connector
| Price: |
US $ 6-7/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
SMA |
| Cable Diameter Szie: |
3.0mm |
| Connector Housing Color: |
Metal |
| Connector Boot Color: |
Black |
| Clips: |
Without Clips |
| Length: |
0.5m, 1m, 2m or Customized |
| Type: |
Multi-mode Fiber |
| Connection Structure: |
LC-LC |
| Material Shape: |
Round Wire |
| Allowed Lateral Pressure: |
100（N/100mm)<1000（N/100mm） |
| Allowed Tensile Strength: |
100N<1000N |
| Core: |
Double Core |
| Certification: |
RoHS, ISO9001, SGS |
| Sheath Material: |
PVC; LSZH; PE; Ofnp; Ofnr |
| Brand: |
Ark |
| Connector Type: |
Simplex |
| Application: |
FTTX, Communication |
Product Description
Product Description
Product Description
BRIEF INTRODUCTION
The SMA connector is more and more used in the optical fiber communication system, such as metro, data processing network, medical equipment, aerospace equipment. There are two kinds of materials for the SMA connector ferrule, ceramic and metal. For the metal ferrule, the type of SMA905 and the SMA906 are widely used, and the other types can be customized. The ARK can supply metal ferrule and ceramic ferrule. The connector can be supplied in one-piece connector.
The optical fiber connector is one of the most basic passive components in the optical fiber communication. There are difference ferrule materials (ceramic, plastic, metal), a variety of body and boot color to choose. Through the process of curing and polishing, etc., the connector is combined with various of fiber optic cable and made into different kinds of patchcord (jumper), which have been widely applied to the CATV system, communications system, FTTx system, Local Area Networks, Wide Area Networks, Metro,Test equipment, Active device termination and so on. The ARK has nearly 10 years of experience in producing connectors and all of the products are meet the Telcordia and IEC stander, the material compliance RoHS. If you have other special requirements, the ARK will be specifically for your customization to meet your needs.
SPECIFICATIONS
| ITEM | Parameter |
| Multi-mode |
| Ferrule material | Metal OR Ceramic |
| Insertion Loss | Metal: typical≤0.60dB,Max≤1.00dB | Ceramic: typical≤0.20dB,Max≤0.30dB |
| Ferrule OD. | ∮3.0mm, customized( metal type) |
| Ferrule material | Metal OR Ceramic |
| Ferrule Specification | 127+3/-0μm, Concentricity: ≤3.0μm |
| Operating Temperature | -20ºC to +70ºC |
| Storage Temperature | -40ºC to +85ºC |
Operating since 1998
Ark was established in 1998, during a time when optical communications was a fledgling industry in China. As an experienced manufacturer, we provide a wide range of products including SM/mm fiber-optic connectors, multiplexers, optical attenuators, MPO cassettes and optical distribution frames.
Providing OEM and Training Services
Our engineering team can design custom products in accordance with clients' requirements. These specialized products are available with bilingual (English and Chinese) installation manuals. OEM and training services can be provided upon request. We began as a school-run factory and now widely recognized as a pioneer in the field.
When the National Research Institute of Telecommunications completed the first trial fiber-optic connector in China, we became a designated manufacturer. Our double status as a learning institution and a production center provided the perfect accommodations for this important project. An experienced taskforce of technicians had worked round the clock to put the new technology into production. Months of dedication and countless trials allowed us to successfully implement the prototype technology into finished products. Extensive collaboration with research centers enabled us to yield the first-ever domestically produced fiber-optic connector. This achievement marked the beginning of a new era for the Chinese optical communications industry.
We have established a production base in Jiangxi for the focused production of fiber-optic connectors and adapters. In 2005, we built a production facility for jumpers and attenuators in Shenzhen. Its establishment was complimented with the addition of an independently operated sales center and R&D institute.
Meeting RoHS and SGS Standards
We have successfully passed the ISO 9001 certification because of our meticulousness in the whole production process. Advanced manufacturing techniques and premium raw materials ensure the outstanding quality of our competitively priced products. All our products are compliant with RoHS and SGS standards.
Trusted by Well-known Companies
Our major clients include well-known companies such as Shenzhen Huawei Technologies, Wuhan Acceling Technologies, Shenzhen Sunsea Telecommunications and Luoyang Aviation Electrical Factory. We are the only supplier of SC optical connectors for the Ericsson (Europe). We are also the preferred supplier of the Telefonica (China branch).
