Hangzhou DAYTAI Network Technologies Co., Ltd. >> SMA Connector for Rg58 Coaxial Cable

SMA Connector for Rg58 Coaxial Cable

SMA Connector for Rg58 Coaxial Cable
Price: US $ 0.1-0.2/Piece
Min Order: 500/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: RG58 SMA Connector
Material: Gold Plating
Impedance: 50 Ohm
Brand: Daytai

Product Description

SMA RG58 Connector Description

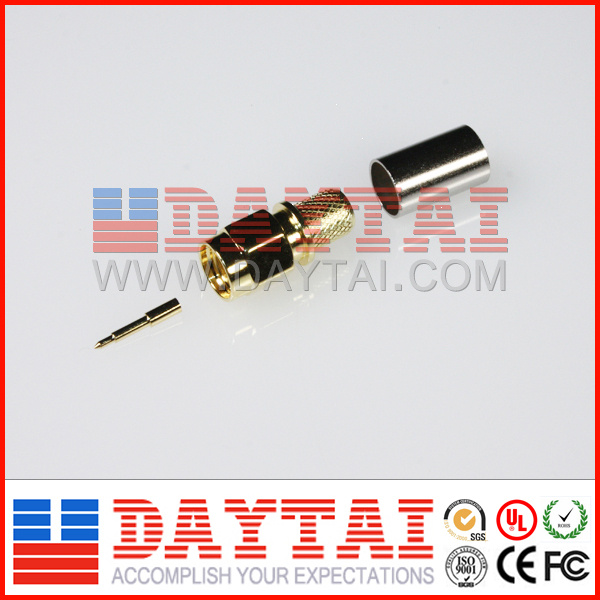

SMA Connector,RG58 SMA Male crimp connector,suitable for RG58 coaxial cable.

SMA RG58 Connector Parameter
Temperature Range-55~+155°C (PE Cable -40~+85°C)
Impedance50Ω
Vibration98m/S2 (10~2000Hz), 10g
Frequency RangeDC-12.4GHz(semi-rigid cable DC-18 GHz)
Insertion Loss<= 0.15dB/6GHz
Withstanding Voltage1000V r.m.s   at sea level
Working Voltage335Vr.m.s   at sea level
Insulation Resistance>= 5000 MΩ
Durability>= 500(cycles)
Contact resistance:CenterContact   <= 3mΩ
Outer Contact   <= 2.5mΩ
Voltage Standing Wave Ratio:Straightflex cable          <= 1.10+0.02f
Semi-rigid cable   <= 1.07+0.018f
Right angleflex cable         <= 1.20+0.03f
Semi-rigid cable   <= 1.17+0.02f
