| Prod Model: |
RHT-612 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Orientation: |
Straight |
| Impedence: |
50ohm |
| Material: |
Zinc Alloy |
| Plating: |
Gold Plating |
| Factory Direct Sale: |
Yes |
| OEM: |
Weclome |
| Type: |
Generally Coaxial Connector |
| Coupling Mechanism: |
Threaded Connection |
Product Description

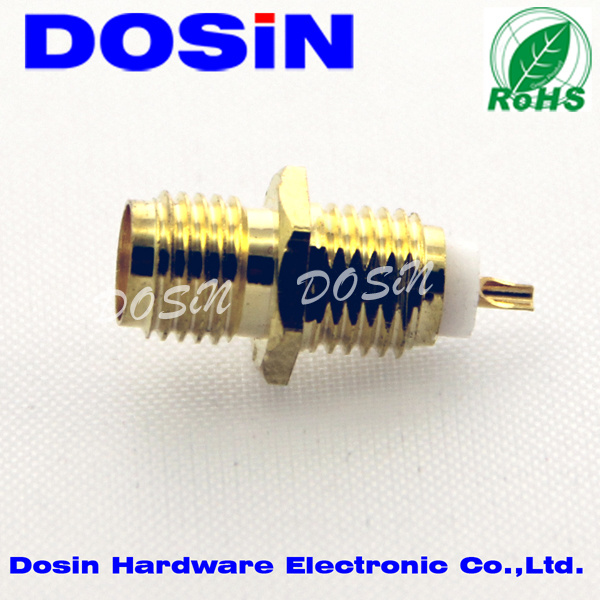

SMA Female Coaxial Connector for Cable
Using a threaded interface, SMA 50 Ohm connectors are semi-precision units that provide excellent electrical performance from DC to 18 GHz and outstanding mechanical durability. SMA connectors feature stainless steel or brass construction and ¼ - 36 threaded coupling, which offers high performance in a compact design.
| Major Technical Characteristics |
| Temperature Range | -5 degree to +155 degree
(PE cable -40 degree to +85 degree ) |
| Vibration | 100m/S2 (10 to 2000 Hz), 10G |
| Impendance | 50ohm |
| Frenquency Range | DC-12.4GHz( Semi-Rigled Cable DC-18GNz) |
| Working Voltage | 335V r.m.s at sea level |
| Workstandinging Voltage | 1000V r.m.s at sea level |
| Center Contact Resistance | ≤3Mohm |
| Outer Contact Resistance | ≤2.5Mohm |
| Insulation Resistance | ≥5000Mohm |
| Center conductor Retention Force | ≤0.28N |
| Coupling Nut Retention Force | ≥180N |
| Insertion Loss | ≤0.15dB/6GHz |
| VoltaggeStanding Wave Ratio : |
| Straight | ≤1.10+0.02f |
| Right Angle | ≤1.20+0.03f |
| Dutability (Mating) | ≤500(cycles) |
| Materials |
| Body | Brass |
| Contact | Brass |
| Insulator | PTFE |
| Suitable cable |
| RG6, RG58, RG59, RG174, RG179, RG316. (More Option, please contact US) |
1.100% tested before delivery.
2. Guarantee the prompt delivery. The stocked goods will be delivered within 3 days and the customized products will be delivered as arranged date.
3. We are glad to makes samples according to our customers'drawing, specifications and samples.
4. OEM is available.
5. Our products are extensively used in electronic and other industries.
6. We have got the certificate ISO9001: 2008
If the product is not what you want, please send enquiry to us, you will get an immediate reply within 1 hour at our working time, thanks for your visiting!
