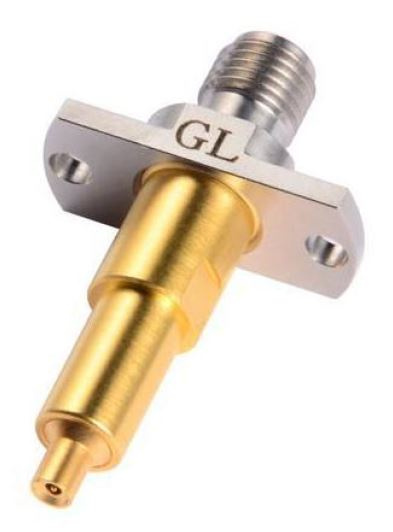

SMA Female RF Measurement Probe Adapter for RF Switch

Name: SMA Female RF Measurement Probe Adapter for RF Switch
Brand: all-electronics-online.com
SKU: 830921705
Availability: InStock
Rating: 4.7 (75 reviews)

Price:	US $ 22.5-23/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	SMA Female
Mating Cycles:	20000 Cycles
Plating Of Pin:	Gold Plated

Product Description

Interface Standards: MIL-STD-348

Port 1 SMA Female

Port 2 Probe

Electrical Specifications

Impedance 50 ohm

Frequency Range DC to 6 GHz

VSWR 1.30(DC to 3GHz)

1.50(DC to 6GHz)

Max

Insertion Loss 0.30dB(DC to 3Ghz)

0.60dB(DC to 6GHz)

Max

Voltage Rating 250 Max. V r.m.s.

Dielectric Withstanding Voltage(AC) 500 V r.m.s.

Insulation resistance 1000 Mohm min

Contact Resistance Center contact 15 mohm Max

Out contact 5 mohm Max

Mechanical Specifications

Length 33.25 mm

Weight 6.05 g

Durability 20000 Cycles

Temperature Rating -40 to +85 Degrees Celsius

SMA Body Stainless Steel Passivate

Body Brass Gold plated

Insulator PTFE N/A

Center Contact Beryllium copper Gold plated

Out Contact Beryllium copper Gold plated

Spring Piano Wire Gold plated

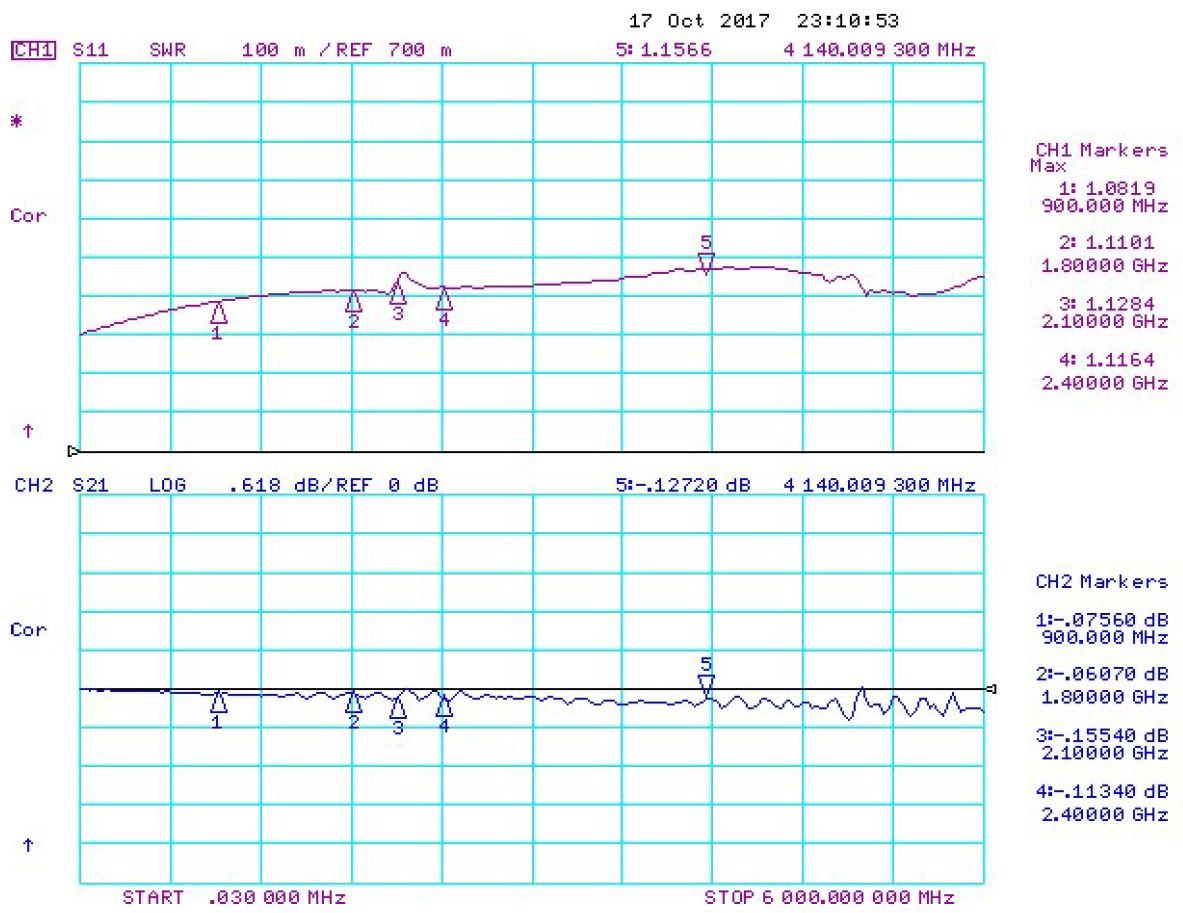

Test Result

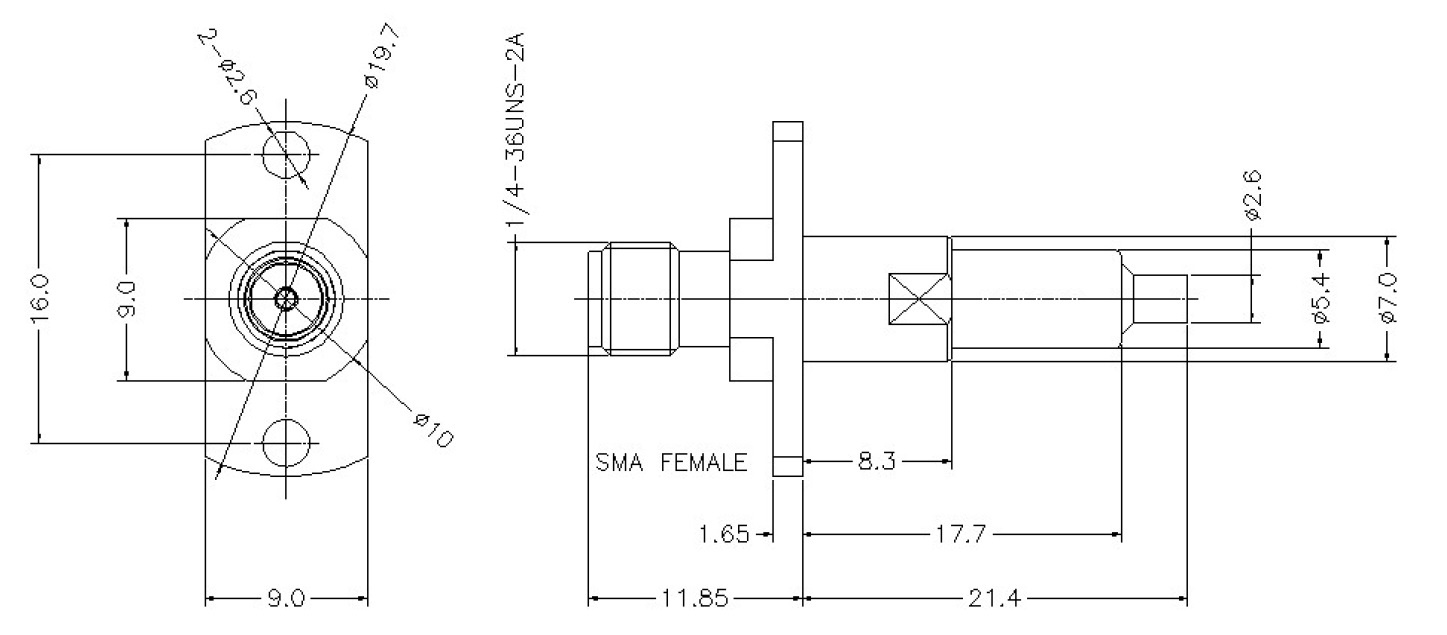

Figure (Scale: Free; Unit: mm)

NOTE:

The probe travel range is 0 - 3.5 mm and the best stroke is between 1.8 and 2.8mm. To have the stable measurement, the adapter slant angle must be +/-2 degrees.
