| Prod Model: |
RHT-612-0024 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Business Type: |
Manufacturer |
| RF Connector: |
SMA Connector |
| Impedance: |
50ohm |
| Body: |
Brass |
| Contact: |
Phosphor Bronze |
| Plating: |
Gold/Nickel |
| Suitable Cable: |
Rg178,1.13mm Cable |
| Warranty: |
12 Months |
| Type: |
PCB Coaxial Connector |
| Coupling Mechanism: |
Threaded Connection |
| Interface Type: |
Thread |
| Brand: |
Renhotec |
Product Description

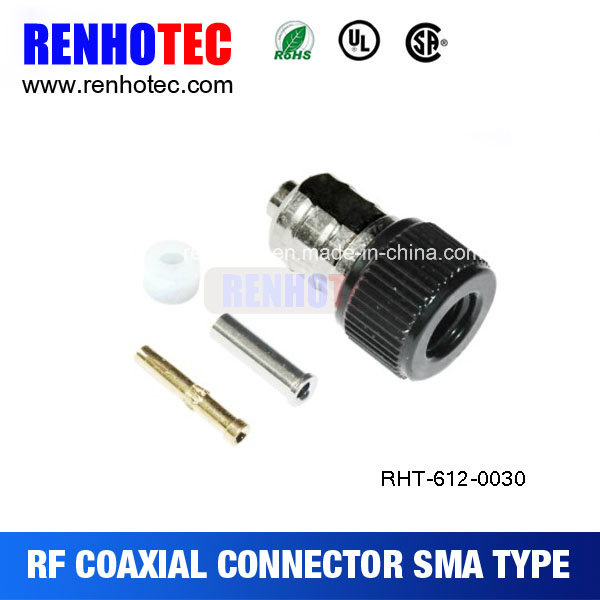

SMA Male Connector for Wireless Antennas
Features & Benefits
Broadband performance DC to 18 GHz with low reflection stainless steel construction and ¼ - 36 threaded coupling offers high performance in a compact design.
Low cost Commercial Grade (Brass SMA) available in nickel or gold plating which provides approximately 30% cost reduction with 250 mating cycles.
Available for. 085" and. 141" diameter semi-rigid cables and all the standard flexible cables including double shielded RG-316.
Phase Adjustable SMA connectors provide ease of mechanical screw adjustments, compared to the delays and expense of laborious cable-trimming.
Brass SMA Specifications
Electrical
Impedance50 Ω
Frequency Range. 141" &. 085" semi-rigid cable: 0-18 GHz
Flexible cables: 0-12.4 GHz
Voltage RatingRG-58, 141, 142: 500 volts peak
RG-174, 188, 316: 375 volts peak
Dielectric Withstanding Voltage. 141" & RG-58 Cables: 1, 000 VRMS
. 085" & RG-316 Cables: 750 VRMS
VSWRStraight connector, . 141": 1.05 +. 005 f (GHz)
Straight connector, . RG-174: 1.15 +. 02 f (GHz)
Straight connector, RG-58: 1.15 +. 01 f (GHz)
Straight connector, RG-178: 1.20 +. 025 f (GHz)
Contact ResistanceCenter contact: 2.0 mΩ
Body: 2.0 mΩ
Braid to body: 0.5 mΩ
Insulation Resistance5, 000 MΩ
Insertion LossdB maximum =. 06v[f(GHz)]
Test frequency @ 6.0 GHZ
RF Leakage-90 dB minimum @ 2.3 GHz
Mechanical
Mating. 250-36 threaded coupling
Mating TorqueMinimum: 2 inch pounds (12 N. Cm)
Recommended: 7-10 inch pounds (80-110 N. Cm)
Maximum: 15 inch pounds (170 N. Cm)
Connector Durability100 matings
Material
Bodies, Coupling Nuts, Other Metal Parts (except as noted)Brass per QQ-B-626
ContactsMale: Brass
Female: Beryllium copper, heat treated
Center Contact Plating. 000030" minimum gold
Plating (Other Metal Parts)Standard. 000010" gold or nickel plated
InsulatorTFE fluorocarbon
Gaskets Silicone rubber
Crimp Ferrule Seamless copper tubing alloy
Environmental
Temperature Range- 65° C to +165° C
Thermal ShockMIL-STD-202 method 107 (test condition B) except high temperatures @ + 200° C
VibrationMIL-STD-202 method 204 (test condition D)
ShockMIL-STD-202 method 213 (test condition I). No discontinuity permitted.
CorrosionMIL-STD-202 method 101 (test condition B) 5% salt solution
Moisture ResistanceMIL-STD-202 method 106, except step 7b (vibration) omitted, and high humidity measurements do not apply
WeatherproofingCrimp type: Heat shrink tubing
Solder type: Silicone rubber gaskets
AltitudeMIL-STD-202 method 105 (test condition C), no corona at 70, 000 feet.
. 141" & RG-55: 250 VRMS
. 085" & RG-122: 190 VRMS
Military Specifications
MIL-C-39012 & MIL-C-83517 SMA Specification SheetsAs applicable
Note: These characteristics are typical but may not apply to all connectors.
