EZCON Telecom Technology(Changzhou)Co., Ltd. >> SMA Male RF Coaxial Load Connector 10W

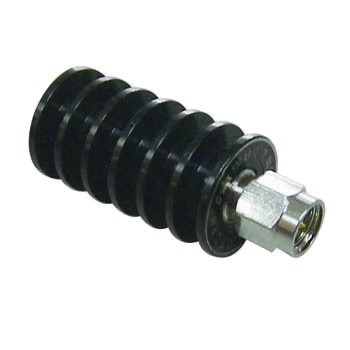

SMA Male RF Coaxial Load Connector 10W

SMA Male RF Coaxial Load Connector 10W
Price: US $ 76.33-80.23/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal
Prod Model: SMA load
Mating Cycles: >1000 Cycles
Plating Of Pin: Gold

Product Description

Mechanical characteristics

outer connector Brass nickel plating
inner conductor(male)Brass plated with gold
inner conductor(female)Beryllium bronze plated gold
shell  Aluminum shell, black
temperature range-55° C ~ +125° C
dimensionsM:Ø16.5×39.5mm
F: Ø16.5×38.7mm
weight10g
RoHS: Compliant

Electrical characteristics
model(GHz)frequency rangeVSWR(max)
SMAF10-3DC-31.10
SMAF10-6DC-61.15
SMAF10-12.4DC-12.41.20
SMAF10-18DC-181.25
SMAF10-26.5DC-26.51.30
Impedence:50Ω
Average power:10W
Peak power:1KW
model:SMA






EZCON Telecom Technology (Changzhou) Co., Ltd. Was formally founded on January 19, 2013, in Changzhou City, Jiangsu Province, Peoples Republic of China. EZCON is a product and solution provider, the company provide high quality, high performance and low cost cable assembly/connector products. EZCON engages in R&D, for telecom and electronics products with focus on RF cable assemblies/connectors, high speed interconnect cable assemblies/connectors and high end test/calibration products. The company has the capacity of product design, engineering service, low cost production/sourcing, assembly, and testing. EZCON combines the advantages of low cost production in China with a high level of engineering expertise, service, and quality. EZCON Telecom Technology Co. Is a US-China joint venture. EZCON CEO, Dr. Zemin Liu is a recognized RF connector industry expert. Dr. Liu developed and designed the industry's most advanced EZCON series connector. He has over 20 years work experience working in the United States, Sweden, and China for world-renowned companies (Commscope, Tyco, Atlas Copco, Amphenol etc). The company management team consists of top technical experts and business development professionals in the telecom industries. EZCON Telecom Technology Co. LTDA.

Leading supplier for high quality test products (frequency range DC-100 GHz) and RF cable assemblies including test cables, adaptors, and calibration kits etc for R&D and production test applications as well as RF connectors and cable assemblies for wireless base stations. Our customers includes world-class telecom equipment suppliers as well as operators such as Commscope, Amphenol, AT&T, Huawei, Synergy Telecom (India) etc.
