SMA Male Straight Connector, Indoor Double Side 3m Tape GSM GPRS Quad Band Car Antenna, Patch 3G GSM Antenna

Name: SMA Male Straight Connector, Indoor Double Side 3m Tape GSM GPRS Quad Band Car Antenna, Patch 3G GSM Antenna
Brand: all-electronics-online.com
SKU: 730309212
Availability: InStock
Rating: 4.3 (50 reviews)

Price:	US $ 1.6-1.9/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WK-GSM001-SMA
Connector:	SMA Male
Usage:	Broadcasting Antenna
Operating Wavelength:	Microwave
Directionality:	Omnidirectional Antenna
VSWR:	<1.5

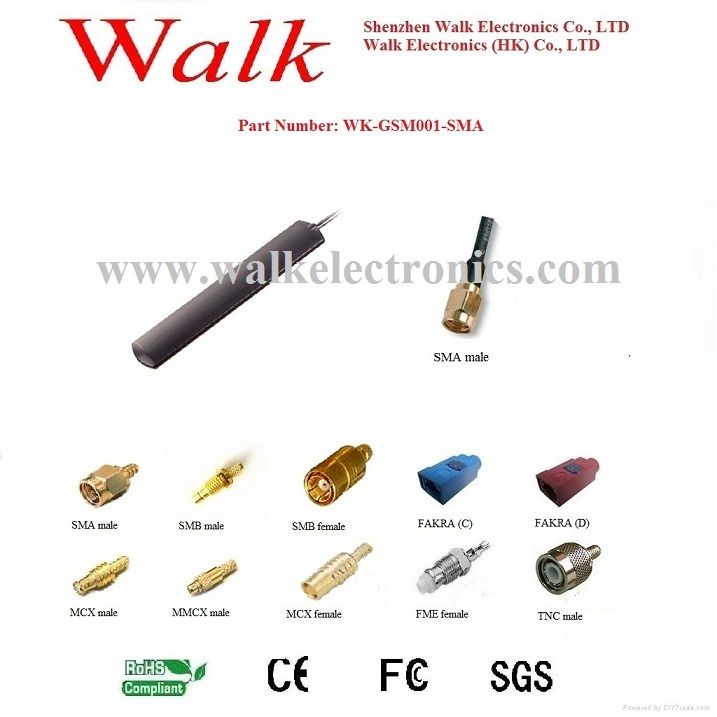

Product Description

GSM/GPRS/AMPS Quad Band Antenna Specifications:

Part Number: WK-GSM001-SMA
GSM antenna Specification
Frequency Range	850/900/1800/1900/2170MHz
V.S.W.R	1.5:1
Band Width	±90/280 MHz
Gain	3.0dBi
Polarization	Vertical
Radiation	Omni directional
Max Input power(W)	50
Impedance	50 ohm
Max wind speed	200km/h

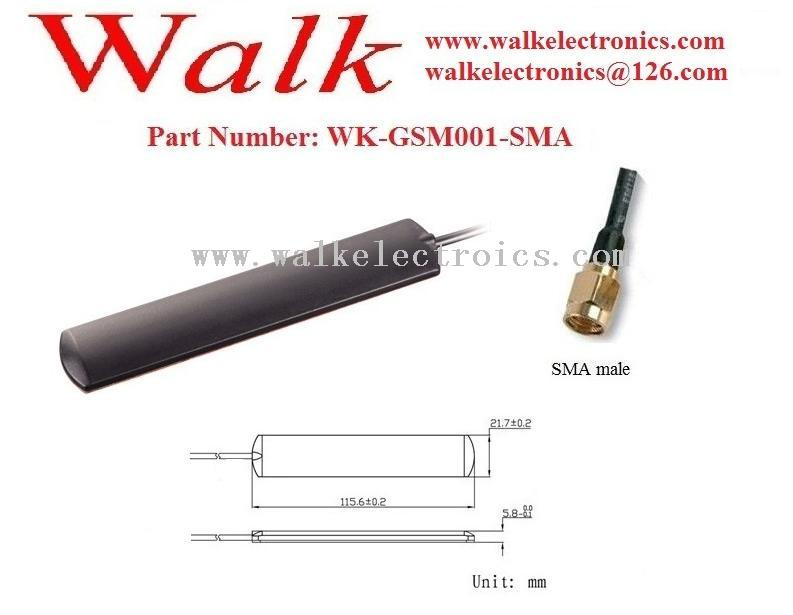

Mechanical Specifications
Size	115×22×4mm
Weight	<150g
Cable	2.5m RG174, RG316, LMR100 or others
Connector	SMA straight male, SMB, FME, FAKRA or others
Mounting	Adhesive(3M tape)
Housing	Black ABS
Environmental Specification
Working Temp	-40ºC~+85ºC
Vibration	Sine sweep 1g(0-p), 10~50~10Hz each axis
Humidity	95%~100%RH
MTBF=1×10-6/pc.hr	40ºC±5ºC, 2000pcs For 480h
