SMA Plug Panel Receptacle Coaxial Connector Flange Mount

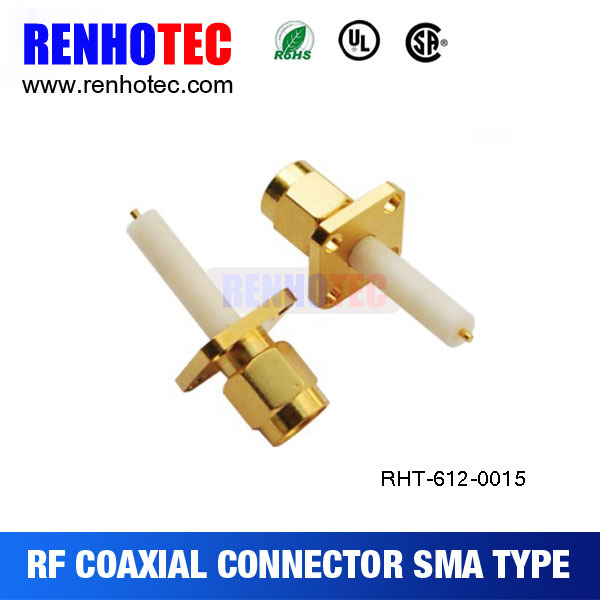

Name: SMA Plug Panel Receptacle Coaxial Connector Flange Mount
Brand: all-electronics-online.com
SKU: 747539275
Availability: InStock
Rating: 4.9 (132 reviews)

Price:	US $ 0.5/Piece
Trade Terms:	FOB,EXW
Min Order:	1000/Piece
Pay Type:	T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	renhotec-612-0015
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Impedence:	50ohm
Orientation:	Straight
Plating:	Gold Plating
Material:	Zinc Alloy
Factory Direct Sale:	Yes
OEM:	Weclome
Type:	Generally Coaxial Connector
Coupling Mechanism:	Threaded Connection
Interface Type:	SMA

Product Description

SMA Plug Panel Receptacle Coaxial Connector Flange Mount

Using a threaded interface, SMA 50 Ohm connectors are semi-precision units that provide excellent electrical performance from DC to 18 GHz and outstanding mechanical durability. SMA connectors feature stainless steel or brass construction and ¼ - 36 threaded coupling, which offers high performance in a compact design.

Major Technical Characteristics
Temperature Range	-5 degree to +155 degree (PE cable -40 degree to +85 degree )
Vibration	100m/S2 (10 to 2000 Hz), 10G
Impendance	50ohm
Frenquency Range	DC-12.4GHz( Semi-Rigled Cable DC-18GNz)
Working Voltage	335V r.m.s at sea level
Workstandinging Voltage	1000V r.m.s at sea level
Center Contact Resistance	≤3Mohm
Outer Contact Resistance	≤2.5Mohm
Insulation Resistance	≥5000Mohm
Center conductor Retention Force	≤0.28N
Coupling Nut Retention Force	≥180N
Insertion Loss	≤0.15dB/6GHz
VoltaggeStanding Wave Ratio :
Straight	≤1.10+0.02f
Right Angle	≤1.20+0.03f
Dutability (Mating)	≤500(cycles)
Materials
Body	Brass
Contact	Brass
Insulator	PTFE
Suitable cable
RG6, RG58, RG59, RG174, RG179, RG316. (More Option, please contact US)

APPLICABLE STANDARD

IEC169-15 MIL-C-39012
Authentication: ISO9001: 2008,

Quality is essential to both of us, we believe that Excellent quality. Reasonable price, Mutual benefit will be good basis of our cooperation. If you have any requirement. Please contact us. We looking forward to cooperate with you! HTTP: //www. Dosinconn. COM

Renhotec offers many types of SMA connectors. PCB mount SMA female connector/ SMA male cable connector/Flange chassis mount SMA connectors/ Straight right angle SMA connector/ Crimp solder SMA connector,etc. If you can't find the exact model you need, please don't hesitate to contact us!

RENHOTEC GROUP, established in May of 2005, specializes in operating businesses of precise Board to Board, Wire-to-board connectors, Solar photoelectric connectors, RF coaxial connectors, Industrial Terminal blocks and cable assemblies for computer & peripheral devices.After 10 years of rapid development, it owns two factories at present:Dongguan RENHOTEC Hardware Electronics Co., Ltd and Hubei RENHOTEC hardware Electronics Co., Ltd.Since its foundation, the company sticks to the principle of specialization and tries its best to supply customers with products of high quality at competitive prices, regarding the development and design of metal and plastic molds, precision high-speed punch molding, precision die casting molding, zinc (aluminum) die casting, precise plastic injection molding and automatic assembly with the support of a skilled R&D and management team.

Since company foundation of the, we emphasize canonical management and high-quality requirements.We has already acquired ISO9001, ISO14001, QC080000 and TS16949 international quality, environment and management systems certification.The company main ten series products obtained American UL & cUL certification, with the No.E248993, the solar connector components acquired Germany TUV certification, All items are in line with EU RoHS and REACH environmental requirements.
