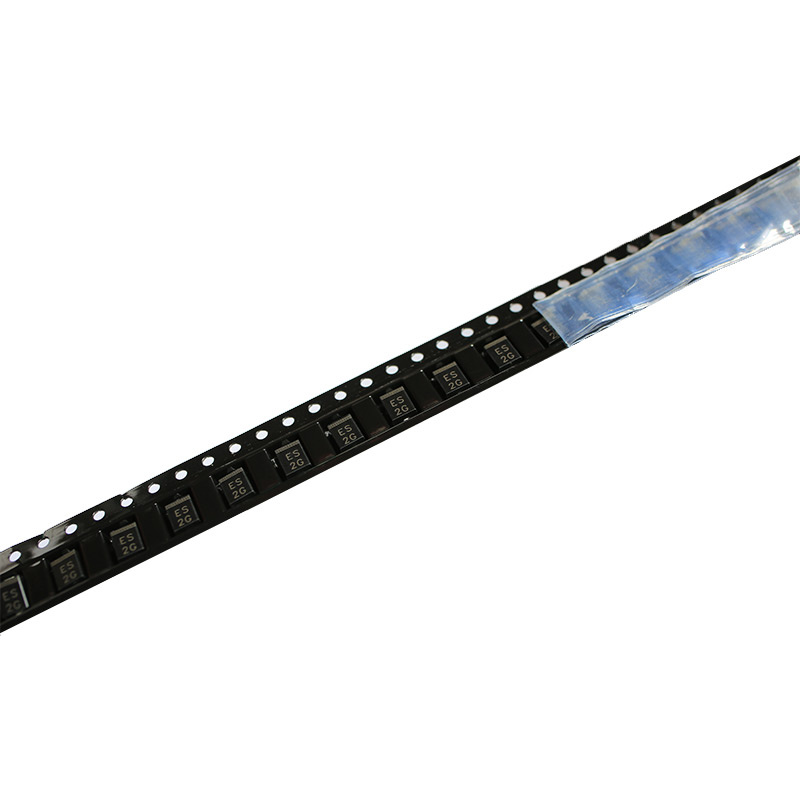

Smaj7.0 Surface Mousnt Transient Voltage Suppressor

Prod Model:	SMAJ7.0
Power Dissipation:	400
Stand Off Voltage:	7.0
Manufacturing Technology:	Optoelectronic Semiconductor
Material:	Element Semiconductor
Type:	Intrinsic Semiconductor
Package:	PGA(',Pin Grid Array Package)
Model:	Smaj7.0
Batch Number:	2016
Brand:	Sy

Product Description

SMAJ5.0 THRU SMAJ170CA

SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

Stand-off Voltage: 5.0-440 Volts Peak pulse power: 400 Watts


FEATURE
For Surface Mount Applications

Unidirectional And Bidirectional

Low Inductance

High Temp Soldering: 260°C for 10 Seconds At Terminals

For Bidirectional Devices Add "C" To The Suffix of The Part Number: i.e.SMAJ5.0CA for 5% Tolerance
Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates
Compliant. See ordering information)

UL Recognized File # E331408






0HFKDQLFDO 'DWD

Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 and MSL rating 1

Polarity: Indicated by cathode band except bi-directional types


0D[LPXP 5DWLQJ

Operating Temperature: -55°C to +150°C

Storage Temperature: -55°C to +150°C
Typical Thermal Resistance: 25 /W Junction to Ambient


Peak Pulse Current on	IPPM	See Table 1	Note 2
10/1000
Peak Pulse Power Dissipation	PPPM	Min 400 W	Note 2, 6
Steady State Power Dissipation	PM(AV)	1.0 W	Note 2, 5
Peak Forward Surge Current	IFSM	40A	Note:5


Note: 1. High Temperature Solder Exemptions Applied, see EU Directive Annex 7.

Non-repetitive current pulse, per Fig.3 and derated above TA=25 per Fig.2.
Mounted on 5.0mm2 copper pads to each terminal.
8.3ms, single half sine wave duty cycle = 4 pulses per Minutes maximum.
Lead temperature at TL = 75 .

Peak pulse power waveform is 10/1000.







SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR   RANGE

(SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSORS)
TYPE	Breakdown Voltage			Stand-off Voltage	Maximum Reverse Leakage @VRWM	Maximum Peak Pulse Current	Maximum Clamping Voltage@IPPM	Power Dissipation	Package
	VBR@IT		IT	VRWM	IR	IRSM	VRSM	Pd
	Min	Max	mA	V	μA	A	V	W
SMAJ5.0	6.40	7.81	10	5.0	800	41.7	9.6	400	DO-214AC (SMA)
SMAJ5.0A	6.40	7.08	10	5.0	800	43.5	9.2	400
SMAJ6.0	6.67	8.15	10	6.0	800	35.1	11.4	400
SMAJ6.0A	6.67	7.37	10	6.0	800	38.8	10.3	400
SMAJ6.5	7.22	8.82	10	6.5	500	32.5	12.3	400
SMAJ6.5A	7.22	7.98	10	6.5	500	35.7	11.2	400
SMAJ7.0	7.78	9.51	10	7.0	200	30.1	13.3	400
SMAJ7.0A	7.78	8.60	10	7.0	200	33.3	12.0	400
SMAJ7.5	8.33	10.3	1.0	7.5	100	28.0	14.3	400
SMAJ7.5A	8.33	9.21	1.0	7.5	100	31.0	12.9	400
SMAJ8.0	8.89	10.9	1.0	8.0	50	26.7	15.0	400
SMAJ8.0A	8.89	9.83	1.0	8.0	50	29.4	13.6	400
SMAJ8.5	9.44	11.5	1.0	8.5	20	25.2	15.9	400
SMAJ8.5A	9.44	10.4	1.0	8.5	20	27.8	14.4	400
SMAJ9.0	10.0	12.2	1.0	9.0	10	23.7	16.9	400
SMAJ9.0A	10.0	11.1	1.0	9.0	10	26.0	15.4	400
SMAJ10	11.1	13.6	1.0	10.0	5.0	21.3	18.8	400
SMAJ10A	11.1	12.3	1.0	10.0	5.0	23.5	17.0	400
SMAJ11	12.2	14.9	1.0	11.0	5.0	19.9	20.1	400
SMAJ11A	12.2	13.5	1.0	11.0	5.0	22.0	18.2	400
SMAJ12	13.3	16.3	1.0	12.0	5.0	18.2	22.0	400
SMAJ12A	13.3	14.7	1.0	12.0	5.0	20.1	19.9	400
SMAJ13	14.4	17.6	1.0	13.0	5.0	16.8	23.8	400
SMAJ13A	14.4	15.9	1.0	13.0	5.0	18.6	21.5	400
SMAJ14	15.6	19.1	1.0	14.0	5.0	15.5	25.8	400
SMAJ14A	15.6	17.2	1.0	14.0	5.0	17.2	23.2	400
SMAJ15	16.7	20.4	1.0	15.0	5.0	14.9	26.9	400
SMAJ15A	16.7	18.5	1.0	15.0	5.0	16.4	24.4	400
SMAJ16	17.8	21.8	1.0	16.0	5.0	13.9	28.8	400
SMAJ16A	17.8	19.7	1.0	16.0	5.0	15.4	26.0	400
SMAJ17	18.9	23.1	1.0	17.0	5.0	13.1	30.5	400
SMAJ17A	18.9	20.9	1.0	17.0	5.0	14.5	27.6	400
SMAJ18	20.0	24.4	1.0	18.0	5.0	12.4	32.2	400
SMAJ18A	20.0	22.1	1.0	18.0	5.0	13.7	29.2	400
SMAJ20	22.2	27.1	1.0	20.0	5.0	11.2	35.5	400
SMAJ20A	22.2	24.5	1.0	20.0	5.0	12.3	32.4	400
SMAJ22	24.4	29.8	1.0	22.0	5.0	10.2	39.4	400
SMAJ22A	24.4	26.9	1.0	22.0	5.0	11.3	35.5	400
SMAJ24	26.7	32.6	1.0	24.0	5.0	9.3	43.0	400
SMAJ24A	26.7	29.5	1.0	24.0	5.0	10.3	38.9	400
SMAJ26	28.9	35.3	1.0	26.0	5.0	8.6	46.6	400
SMAJ26A	28.9	31.9	1.0	26.0	5.0	9.5	42.1	400
SMAJ28	31.1	38.0	1.0	28.0	5.0	8.0	50.1	400
SMAJ28A	31.1	34.4	1.0	28.0	5.0	8.8	45.4	400
SMAJ30	33.3	40.7	1.0	30.0	5.0	7.5	53.5	400
SMAJ30A	33.3	36.8	1.0	30.0	5.0	8.3	48.4	400
Notes:suffix with "CA" means bi-directional(e.g,SMAJ5.0CA), electrical characteristics apply in both directions.
CA ,(:SMAJ5.0CA),
