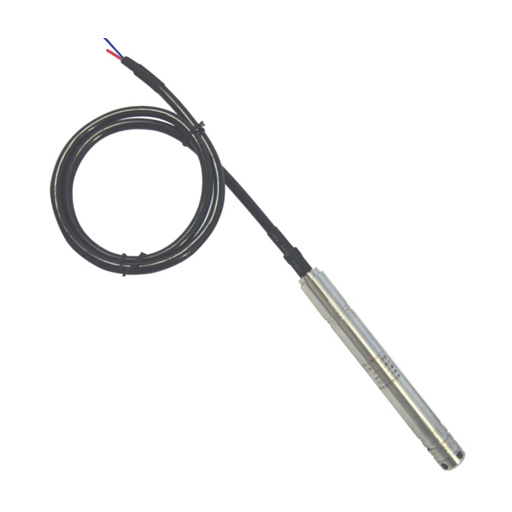

Small Diameter Liquid/Water Level Transmitter Probe (PCM268)

Small Diameter Liquid/Water Level Transmitter Probe (PCM268)
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union
Prod Model: PCM268
Output: 4 to 20mA
Supply: 24VDC
Operating Temp.: -20ºC - 85ºC
Medium Temp.: -20ºC - 85ºC
Temp. Drift: ±1.5%F.S. (0ºC - 85ºC)
Probe Housing Material: 316L
Sensor Material: 316L
Pressure Range: 0~1m...20m H2O
Accuracy Grade: 0.5%Fs

Product Description

Piezoresistive silicon chip employed
MEMS technology
Cable ventilated
Excellent long term stability
CE certificate

Typical Application


Depth and level measurement in
  1. Wells
  2. Reservoirs
  3. Lakes
  4. Rivers
  5. Sewage treatment plant
  6. Water tank
  7. Ground water monitoring
  8. Surface water monitoring
Pressure range

Pressure range1m, 2m, 5m, 10m, 20m H2O
Output signal

Output4 to 20mA
Specification

Accuracy (linearity, repeatability and hysteresis)±0.5%F.S.(Typical)
Overpressure150%F.S.
Supply24VDC
Operating temp.-20ºC - 85ºC
Medium temp.-20ºC - 85ºC
Storage temp.-40ºC - 125ºC
Compensated temp.0ºC - 60ºC (0m - 10m H2O) | -10ºC - 70ºC (10m - 20m H2O)
Zero temp. coefficient ±1.5%F.S. (0ºC - 85ºC)
Span temp. coefficient±1.5%F.S. (0ºC - 85ºC)
Long term stability<0.2%F.S./year
Protection IP68
Probe housing materialStainless steel 316L
Sensor materialStainless steel 316L
Housing diameterφ19mm
