Prod Model: |
KA-65 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Warranty: |
Two Years |
Bulk Order Delivery Time: |
Within 25 Days |
Samples Delivery Time: |
Within 2 Days |
Type: |
Infrared Sensor Switch |
Principle: |
Infrared |
Wires: |
NPN (',Three-Wires) |
Standard: |
Standard |
Size: |
86 Type |
Certification: |
CE |
Application: |
Corridor, Warehouse, Garage, Toilets etc. |
Product Description
KA-S65 Small Dimension Wall Surface Mount Hidden Sensor specifiction:1) Power Source:220 -240V/AC
2) Detection Range:160°
3) Power Frequency:50Hz Working
4) Temperature:-20~+40 degree
5) Ambient Light:3-2000LUX (adjustable)
6) Working Humidity :< 93%RH
7) Time-Delay :Min:10sec±3sec;Max:7min±2min Power
8) Installation Height:1m-1.8m
9) Consumption:0.45W (work)
10) Rated Load:500W (incandescent lamp) 0.1W (static)
100W (energy-saving lamp)
11) Detection Motion Speed:0.6-1.5m/s
12) Detection Distance:9m max (<24 degree )
13) Very Small Mounting DimensionKA-S65 introduction:The product adopts good sensitivity detector, integrated circuit.
It gathers automatism, convenient safe, saving-energy and practicalfunctions.It utilizes the infrared energy from human ascontrol-signal source, it can start the load at once when one entersdetection field.It can identify day and night automatically.It is easyto install and used widely.
KA-S65 function:1) Can identify day and night:The consumer can adjust work ambient light.It can work in the daytime and at night when LUX is adjusted on the maximum position.It can work in the ambient light less than 3LUX when it is adjusted on the minimum position.As for the adjustment pattern, please refer to the testing pattern.
2) Time-delay is added continually:When it receives the second induction signals after the first induction, it will compute time once more on the rest of the first time-delay basic.(set time)
3) Time-delay adjustment:It can be set according to the consumer's desire.The minimum time is 10sec±3sec.The maximum is 7min±2min.
4) The switch:"ON","OFF","PIR".

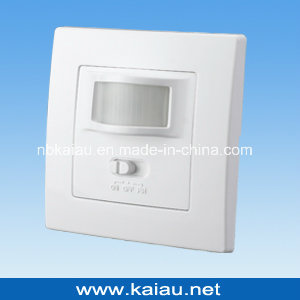

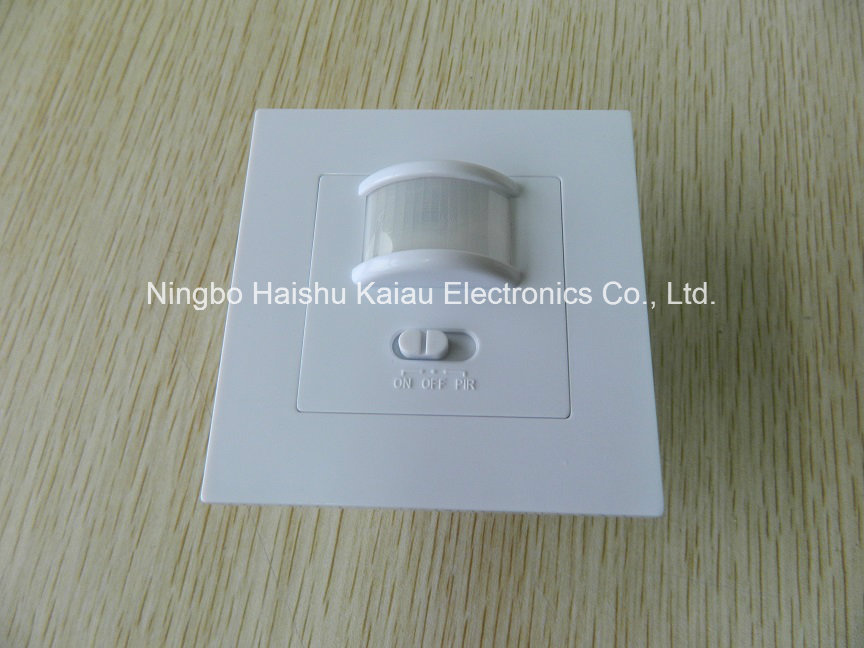

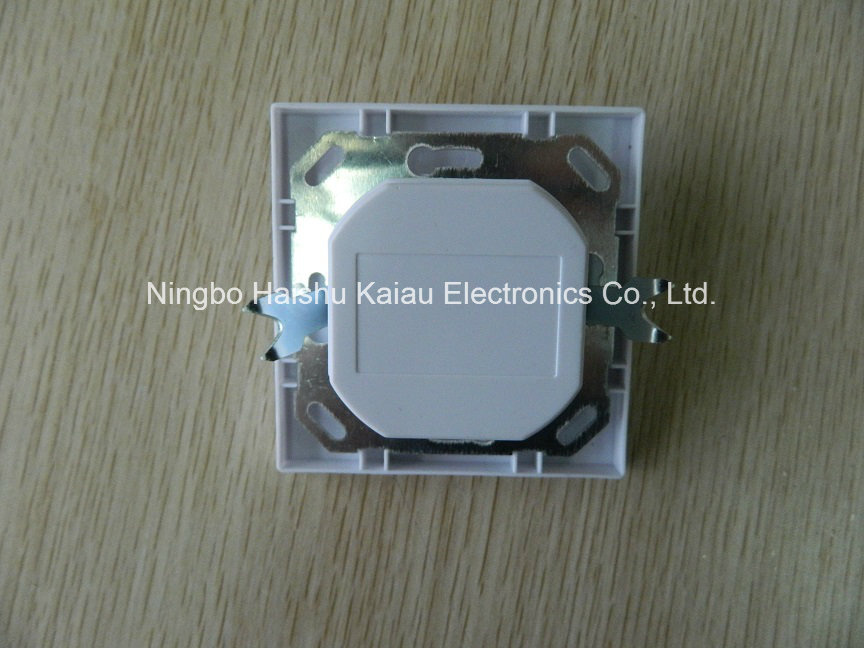

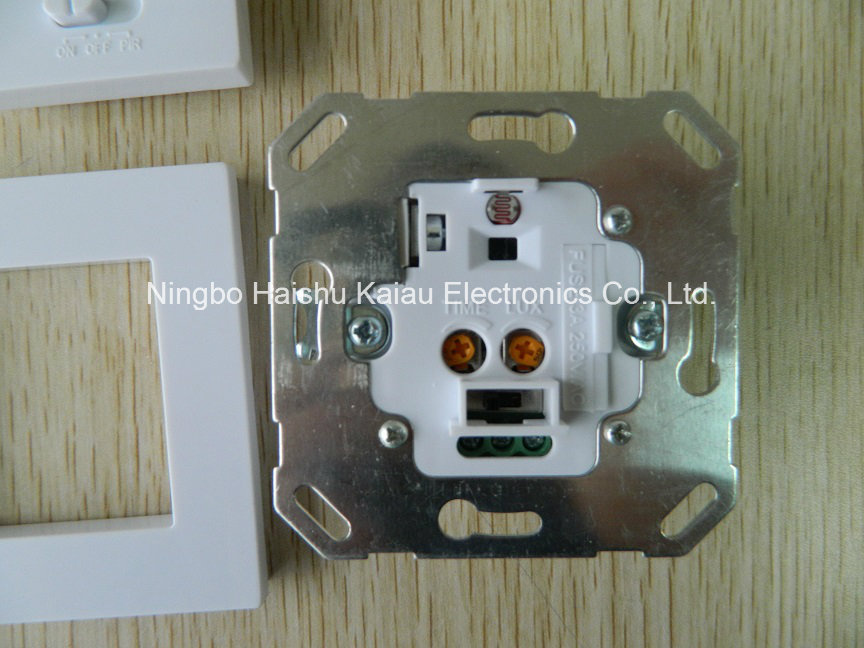

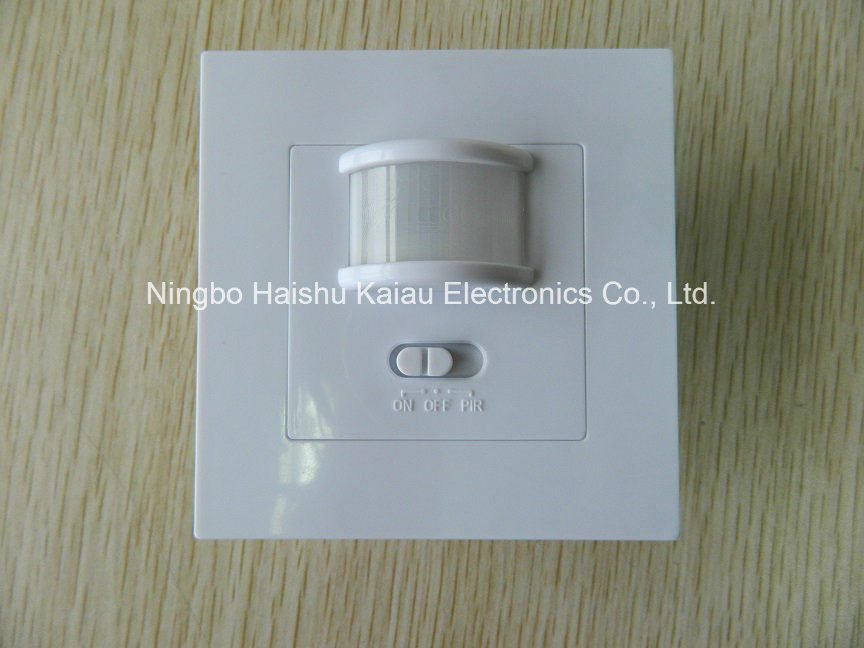

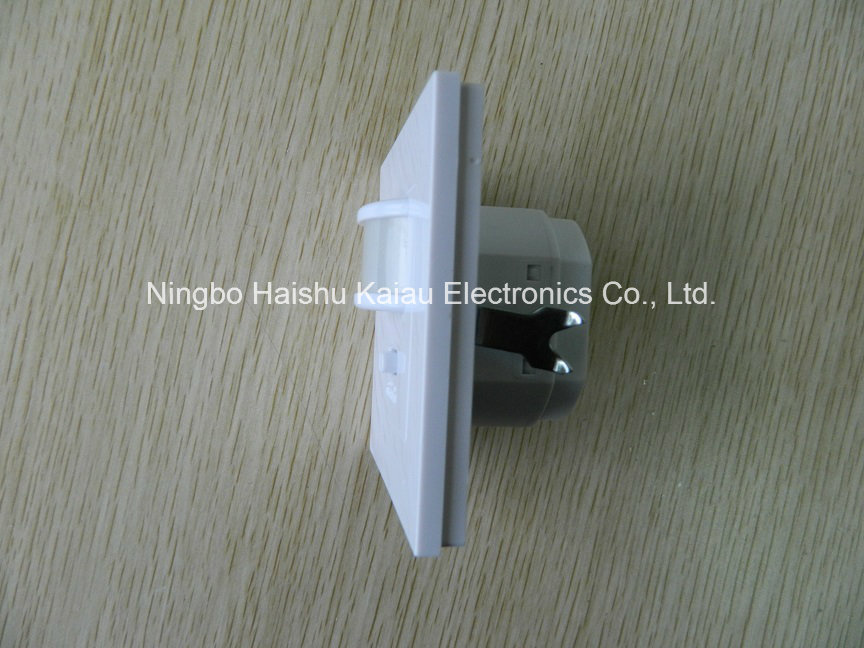

KA-S65 Actual photos:
