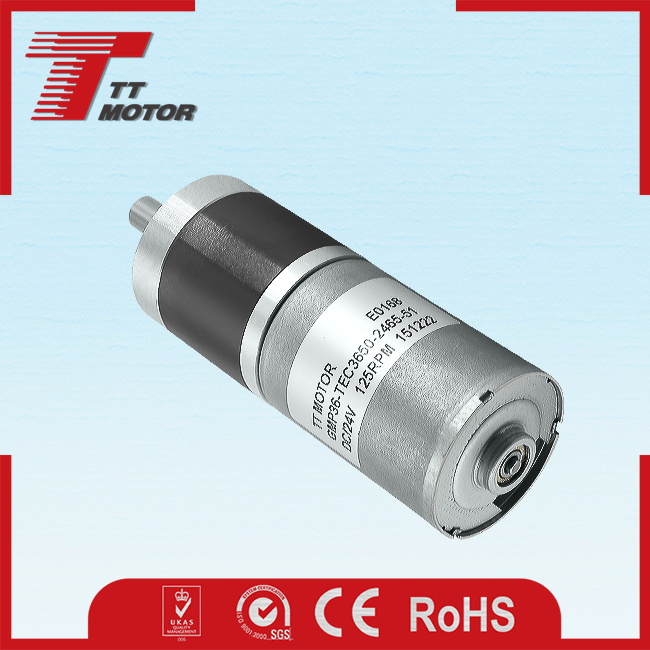

DC planetary brushless motor GMP36-TEC3650 |
| Product Name: |
DC planetary brushless Motor GMP36-TEC3650 |
| Rated Voltage: |
12-24V |
| Rated Power: |
3-90W |
| Rear Shaft Extensions: |
customized |
| Reduction Ratio: |
3-1996 |
| Axial Play: |
0.05-0.5mm |
| Adapter Plate: |
Aluminium alloy |
| Ring Gear: |
Steel |
| Gear Type: |
Straight teeth |
| Output Shaft: |
Stainless steel hardened |
| Application: |
Power Tools |
| Operating Speed: |
Low Speed |
| Structure And Working Principle: |
Brushless |
| Excitation Mode: |
Permanent Magnet |
| Function: |
Totally Enclosed |
| Type: |
DC Brushless Gear Motor |
| Certification: |
RoHS,CE |
| Brand: |
TT Motor |
Product Description
Small electric 12V DC brushless motor for Semiconductor Automation
Main Features1.OEM/ODM 36mm Planetary reducer plus TEC3650&3640 brushless motor
2.Small size dc gear motor with low speed and big torque
3.36mm gear motor provide 3.0Nm torque max and more reliable
4.Suitable to small diameter, low noise and big torque application
5.Reduction ratio:4
,14
,19
,27
,51
,71
,100
,139
,189
,264
,369
,516
,720

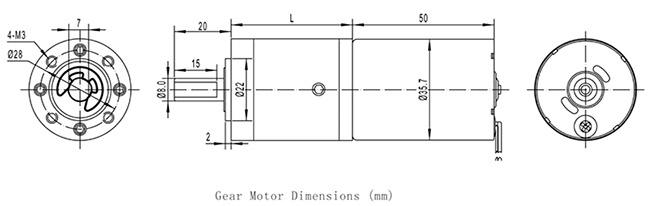

| Motor model no. | Rated voltage | No-load speed | No-load current | Rated speed | Rated torque | Rated current | Output power | Stall torque | Stall current |
| VDC | r/min | mA | r/min | g.cm | mA | W | g.cm | A |
| TFC3650-2465 | 24 | 6500 | 200 | 5400 | 200 | 1000 | 11.5 | 1150 | 2.6 |
| TFC3650-2440 | 24 | 4000 | 120 | 3200 | 200 | 600 | 6.6 | 1000 | 2.0 |
| TFC3650-1245 | 12 | 4500 | 150 | 3500 | 230 | 880 | 8.3 | 820 | 2.5 |
Gear motor technical data : GMP36-TEC3650-2465-xxx| Reduction ratio | 4 | 19 | 51 | 100 | 139 | 189 | 264 | 369 | 516 | 720 |
| Length mm | 26 | 33.5 | 40.5 | 40.5 | 40.5 | 47.5 | 47.5 | 47.5 | 47.5 | 47.5 |
| No-load speed rpm | 1600 | 340 | 125 | 65 | 45 | 33 | 23 | 17 | 12 | 9 |
| Rated speed rpm | 1300 | 280 | 100 | 53 | 38 | 28 | 20 | 14.5 | 10 | 7.5 |
| Rated torque kg.cm | 0.6 | 2.7 | 6.0 | 12 | 16.6 | 22.5 | 30 | 30 | 30 | 30 |
| Max.momentary tolerance torque kg.cm | 3.7 | 15 | 35 | 69 | 70 | 70 | 70 | 70 | 70 | 70 |
Gear motor technical data : GMP36-TEC3650-2440-xxx| Reduction ratio | 4 | 19 | 51 | 100 | 139 | 189 | 264 | 369 | 516 | 720 |
| Length mm | 26 | 33.5 | 40.5 | 40.5 | 40.5 | 47.5 | 47.5 | 47.5 | 47.5 | 47.5 |
| No-load speed rpm | 950 | 200 | 75 | 40 | 28 | 20 | 15 | 10 | 7.5 | 5.5 |
| Rated speed rpm | 750 | 160 | 60 | 30 | 22 | 16 | 12 | 8 | 6 | 4.5 |
| Rated torque kg.cm | 0.6 | 2.7 | 6.0 | 12 | 16.6 | 22.5 | 30 | 30 | 30 | 30 |
| Max.momentary tolerance torque kg.cm | 3.7 | 15 | 35 | 69 | 70 | 70 | 70 | 70 | 70 | 70 |
Gear motor technical data : GMP36-TEC3650-1245-xxx| Reduction ratio | 4 | 19 | 51 | 100 | 139 | 189 | 264 | 369 | 516 | 720 |
| Length mm | 26 | 33.5 | 40.5 | 40.5 | 40.5 | 47.5 | 47.5 | 47.5 | 47.5 | 47.5 |
| No-load speed rpm | 1050 | 230 | 85 | 44 | 32 | 23 | 17 | 12 | 9 | 6 |
| Rated speed rpm | 875 | 185 | 68 | 35 | 25 | 18 | 13 | 10 | 7 | 5 |
| Rated torque kg.cm | 0.7 | 3.0 | 7.0 | 14 | 19 | 24 | 30 | 30 | 30 | 30 |
| Max.momentary tolerance torque kg.cm | 2.6 | 11 | 25 | 50 | 68 | 70 | 70 | 70 | 70 | 70 |

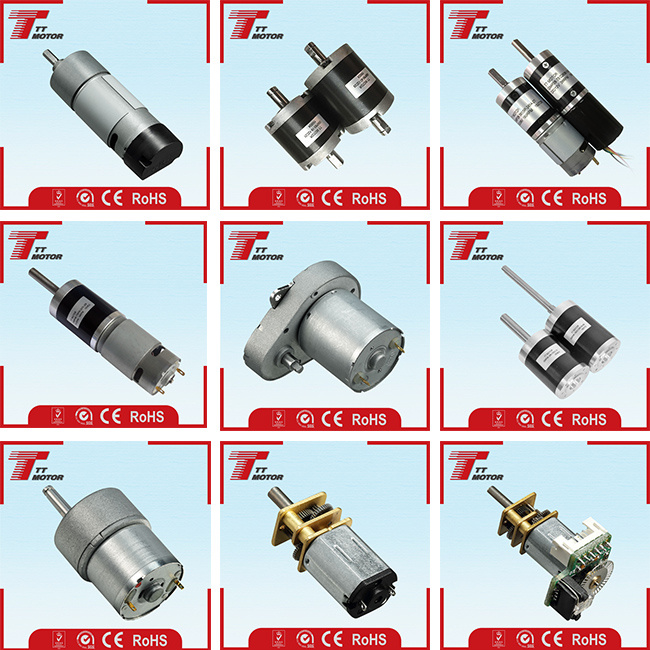

Related productProduct Application | Other Applications: |
